PRV Audio 2" Exit Compression Driver Pro Audio 200 Watts Max Compact D2200Ph
Click to enlarge

PRV Audio 2" Exit Compression Driver Pro Audio 200 Watts Max Compact D2200Ph PRV Audio 2" Exit Compression Driver Pro Audio 200 Watts Max Compact D2200Ph

$59.91 $81.24

Vendor: PRV Audio

SKU: D2200Ph

UPC Code: 0602938022774

Categories: Electronics, Tweeters,

Tags: 101-250 Watts, 2", 51-100 Watts, Compression Horn Tweeters,

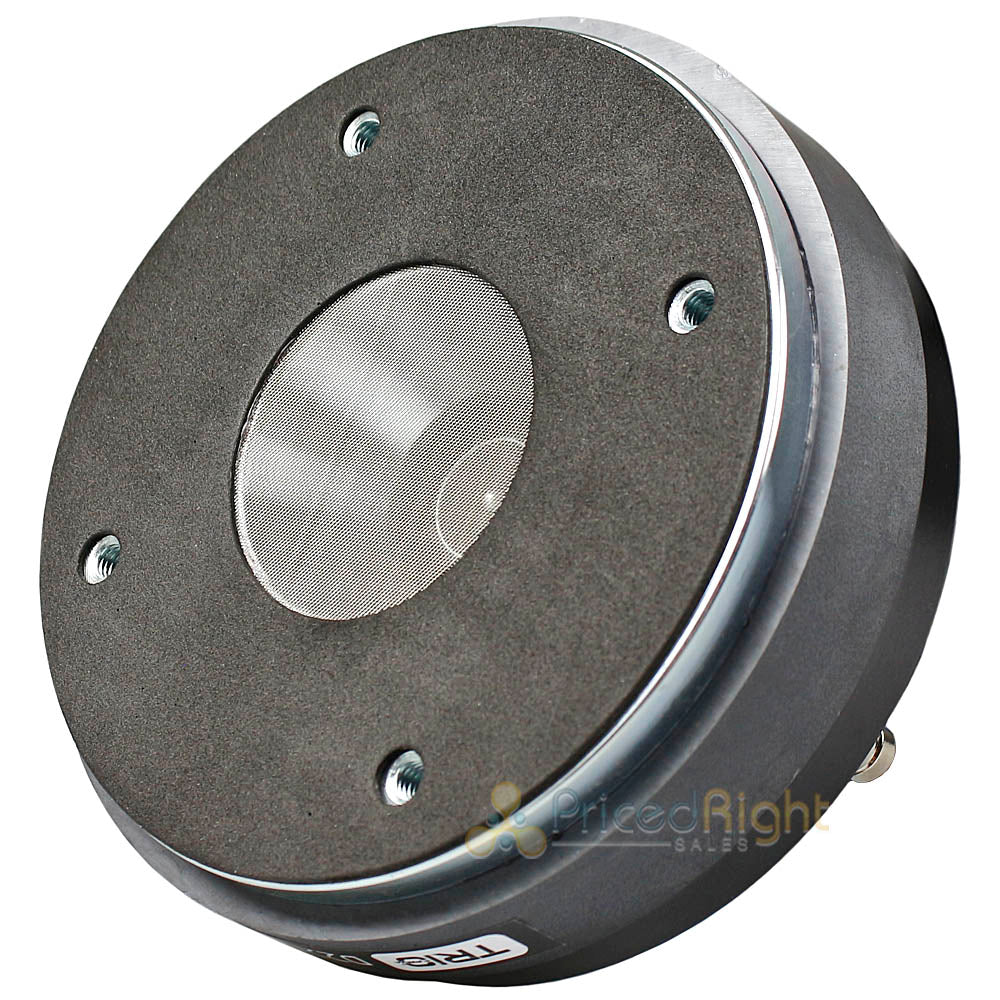

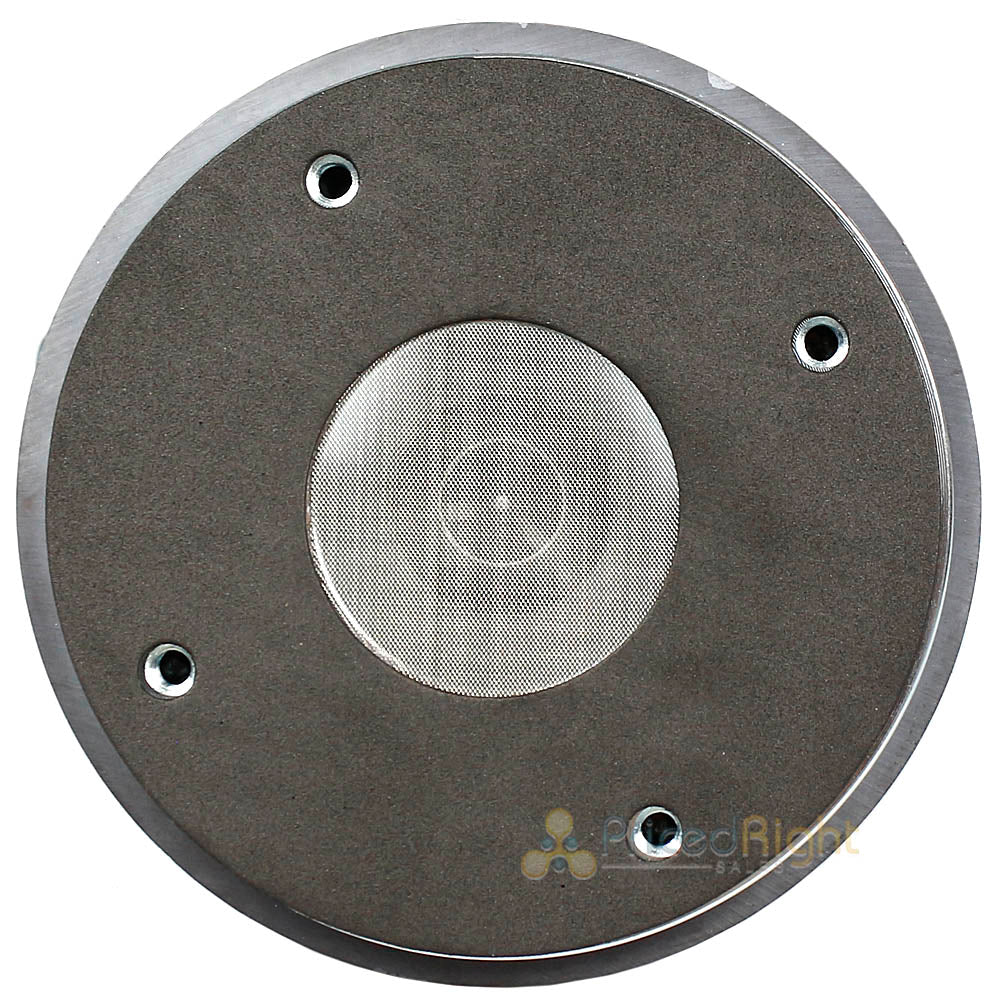

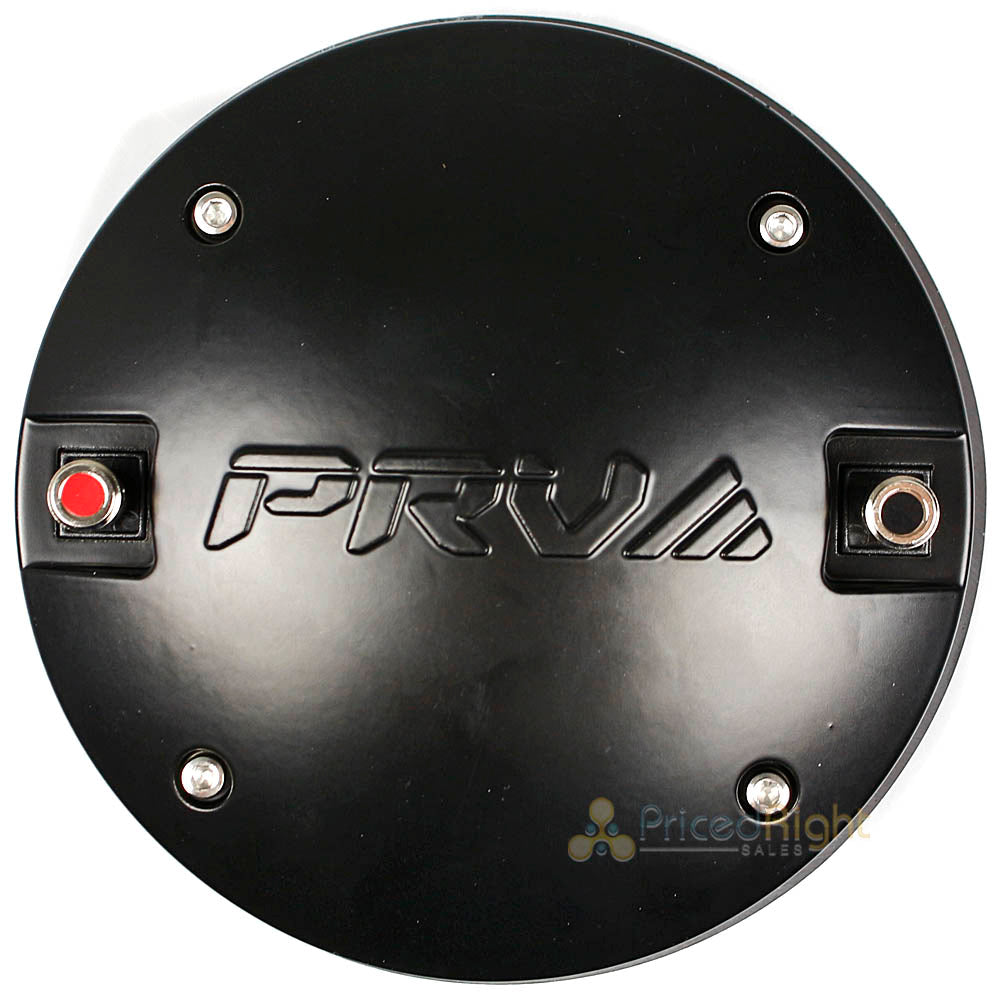

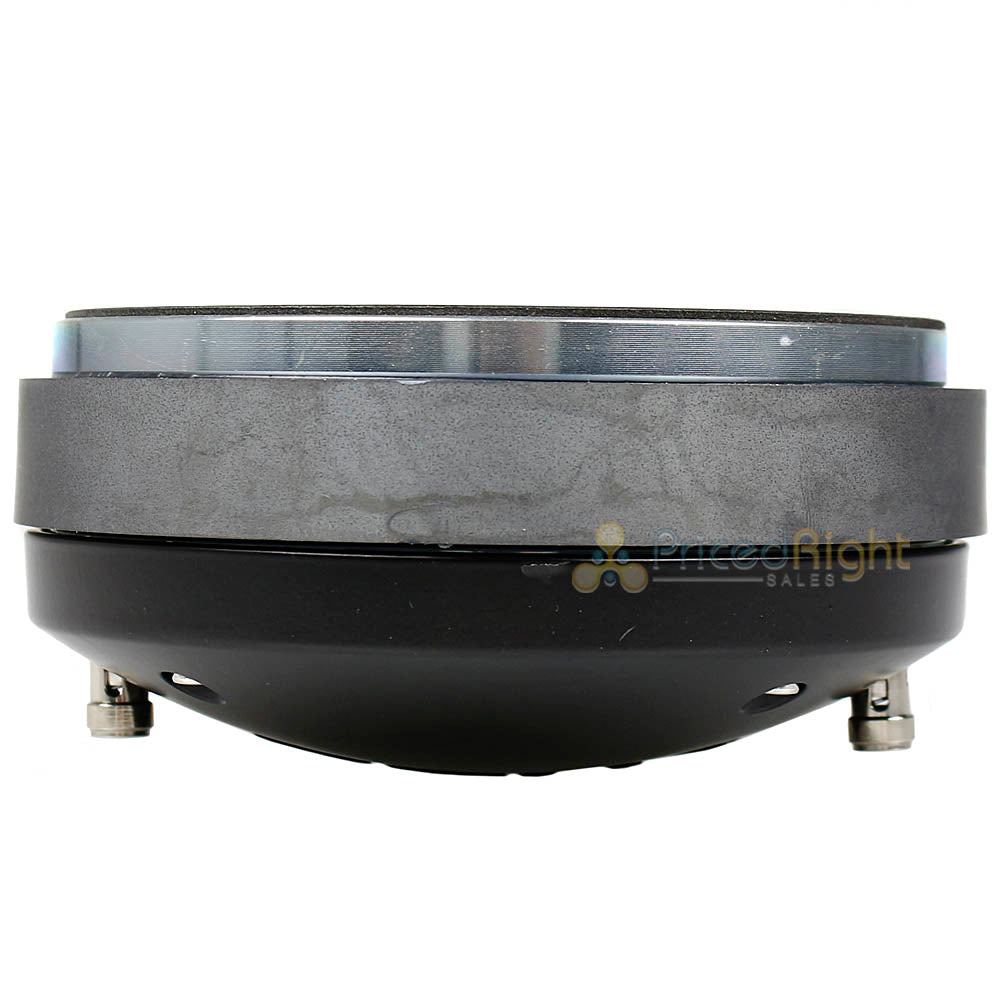

PRV Audio 2" Phenolic compression driver 8 ohms D2200Ph

The D2200Ph is a compact solution for mid-high vocal reproduction that offers high sensitivity and a pleasant sound from the phenolic diaphragm. Its high output and smooth mid-range frequency response allow you to use this horn driver in almost any high output audio application for vocal reinforcement. High output mobile audio enthusiasts choose the PRV Audio D2200Ph for extreme SPL car audio competitions in South America, while DJs use it in high SPL speaker cabinets for entertaining crowds that number in the thousands.

Features

• Exit Throat Diameter: 2” (50 mm)
• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 100 Watts
• Program Power: 200 Watts
• Sensitivity 2.83V at 1m: 109 dB
• Frequency Response at -10dB: 500 – 9,000 Hz
• Voice Coil Diameter: 2” (51 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Phenolic
• Flux Density: 1.66 T
• Magnet Material: Ferrite
• Low mass CCAW voice coil and pheno lic diaphragm for natural response
• Designed for midrange and vocals from 500 to 9,000 Hz
• High Output – 109 dB sensitivity
• Compact driver design for easy front mount installation
