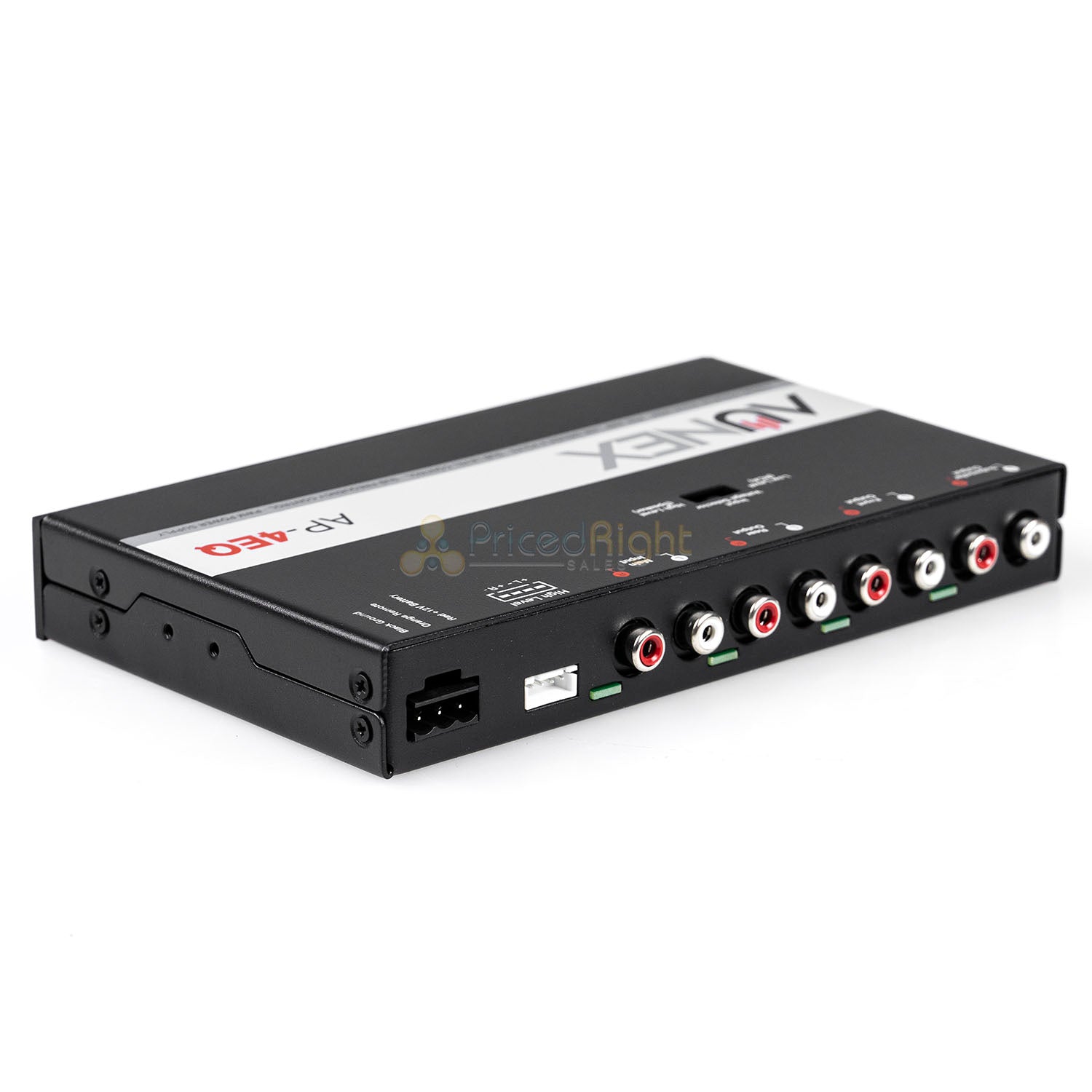

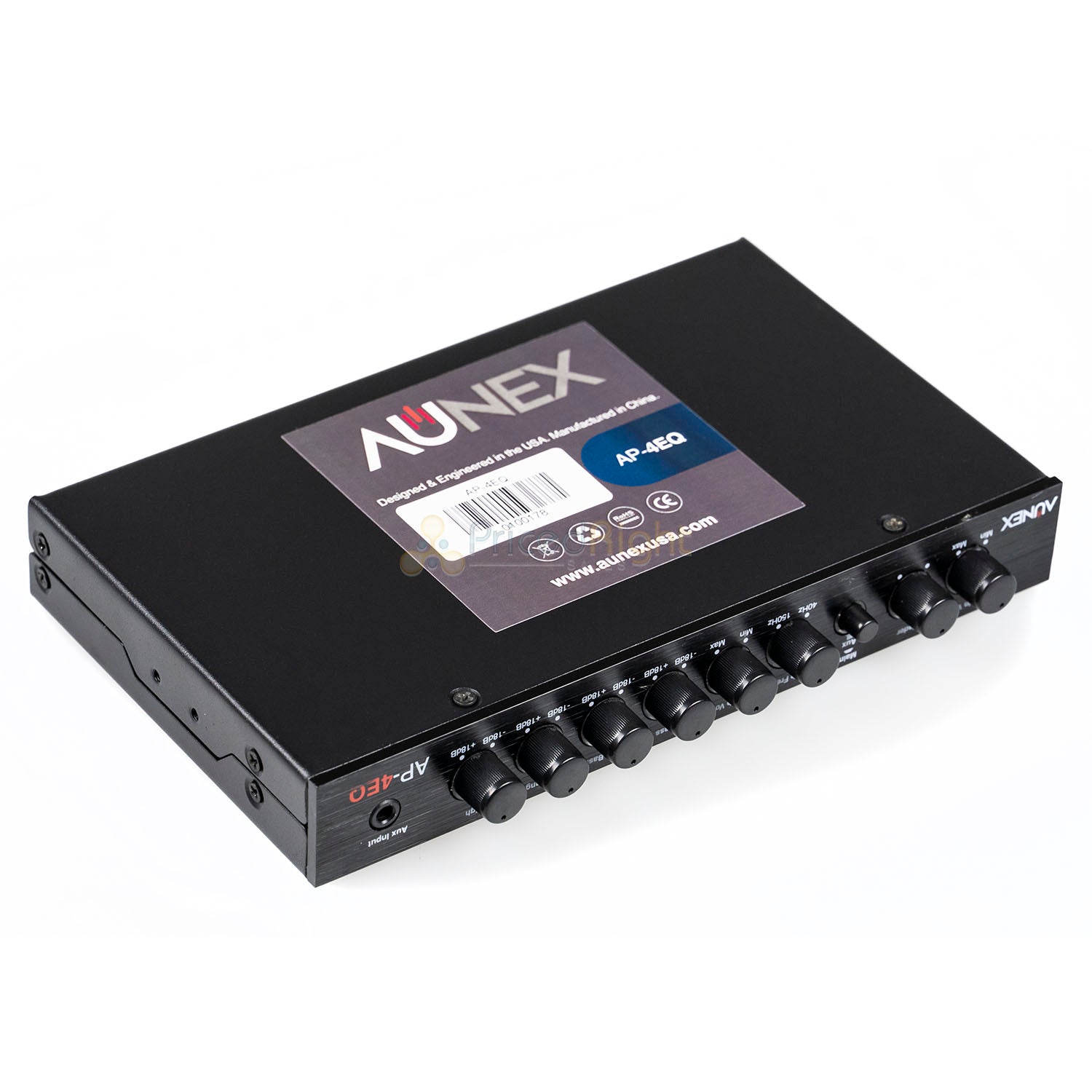

Aunex AP-4EQ 4-Band Performance Equalizer

Aunex Performance Series equalizers are engineered to deliver precision tuning of your audio system. If you are looking to fine-tune your system with an audiophile-grade equalizer the AP-4EQ is the perfect choice to enhance your listening experience. This AP-4EQ features three total inputs, which included the 3.5mm AUX input, and three outputs to give you great control over the sound coming from your system. Please see below for more details.

Features:

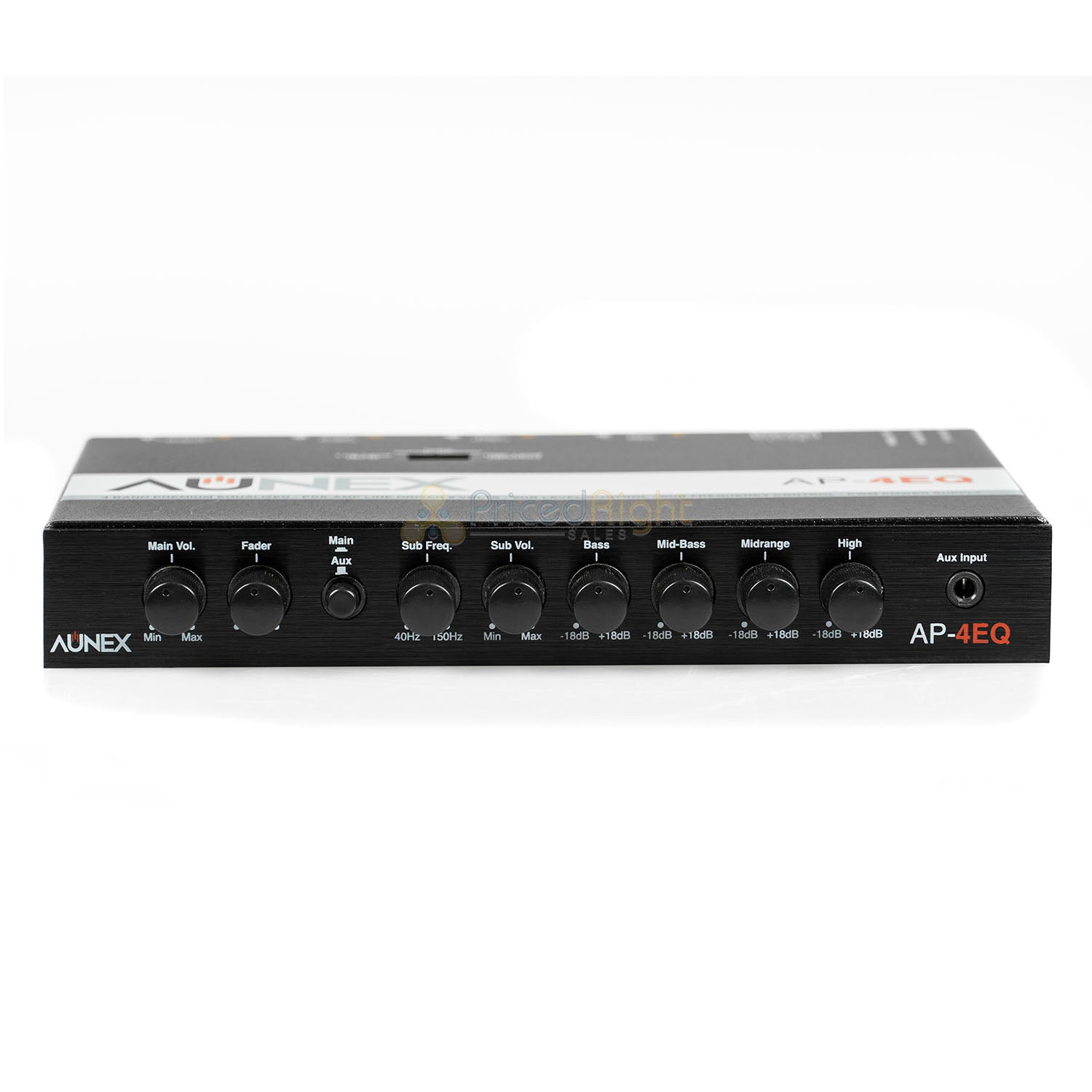

• 4-Band In-Dash Equalizer/Pre-Amp Line Driver
• Master Volume Control Knob
• Dual Input Source Selector

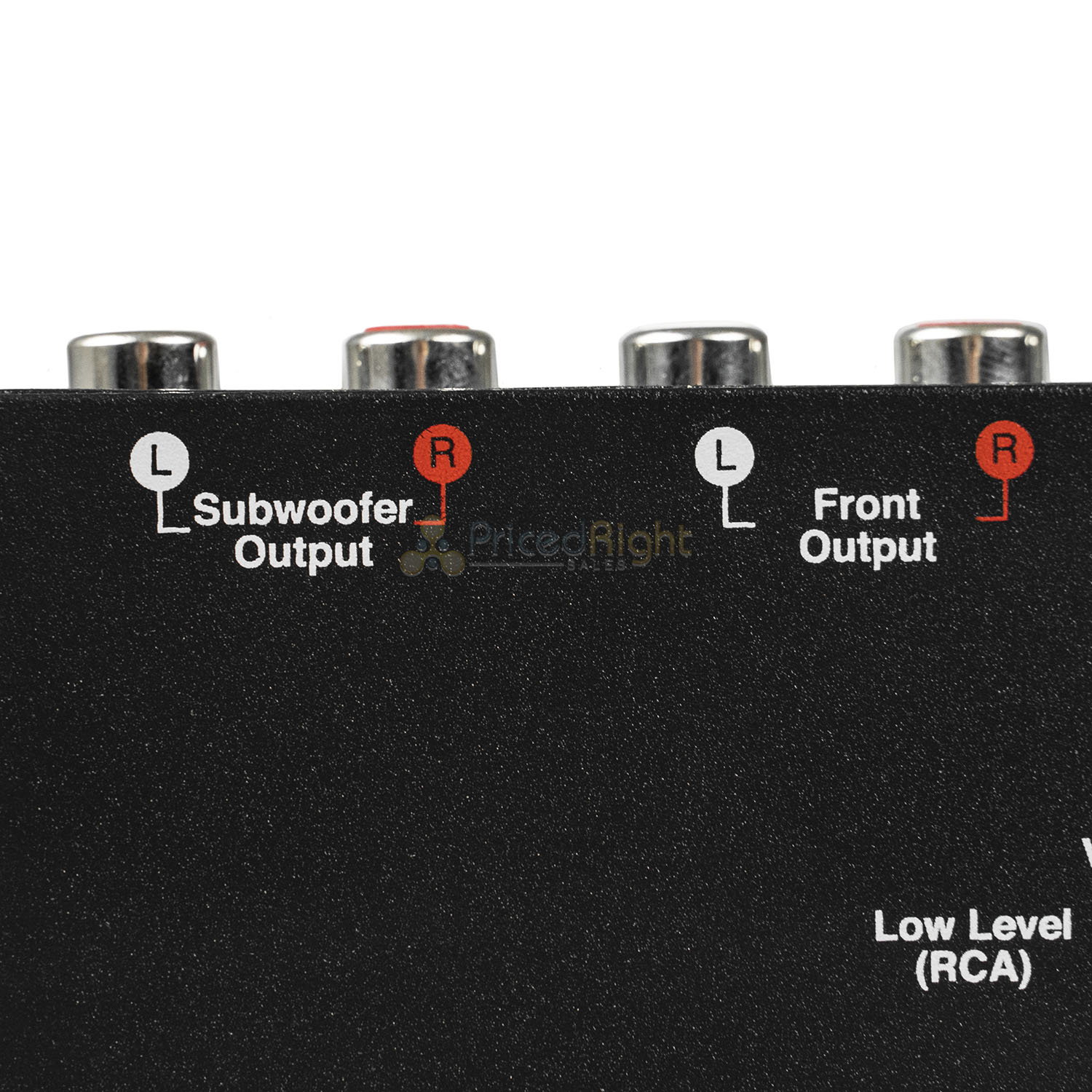

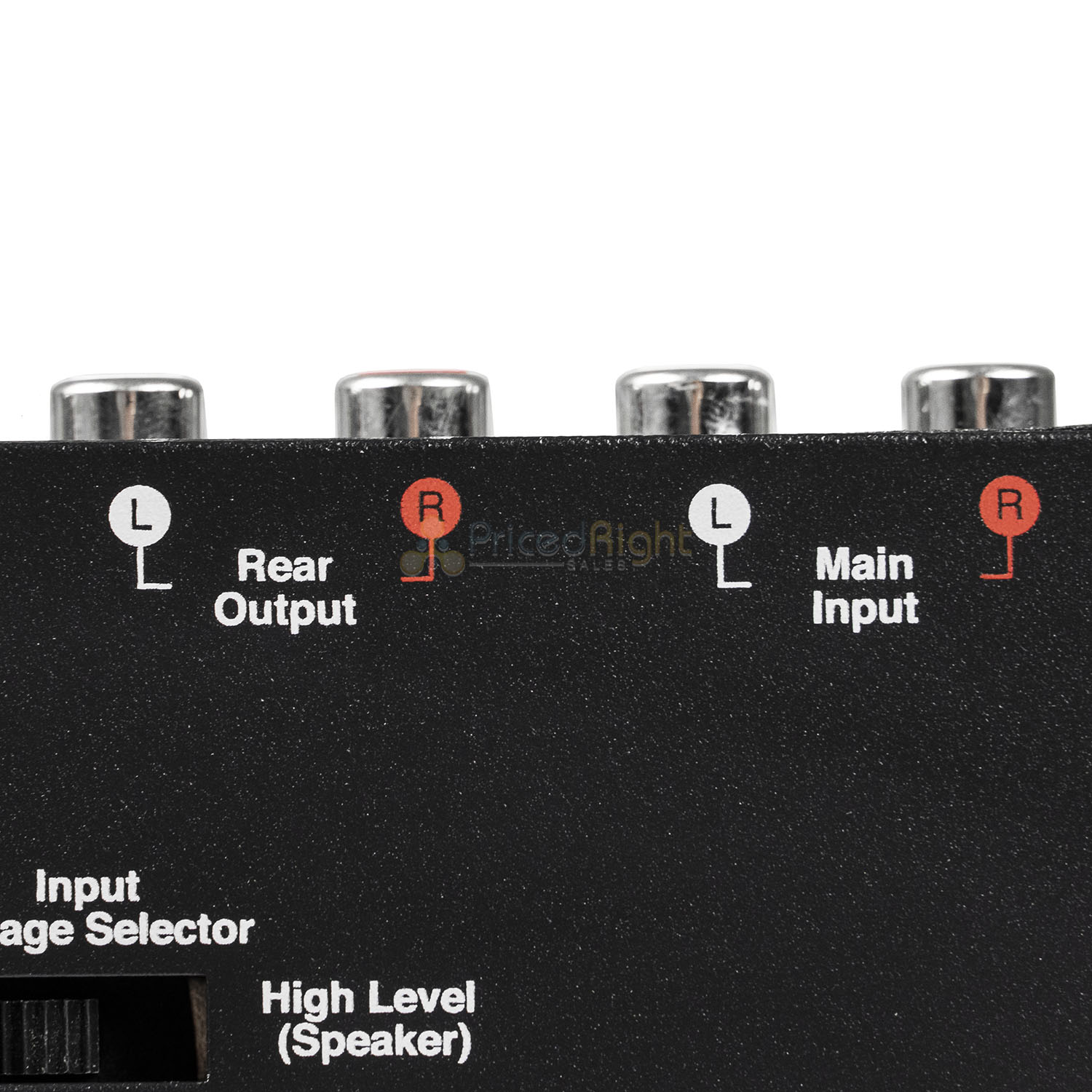

• Front, Rear, Subwoofer RCA Output
• Finish: Anodized with Texture Paint
• High-Level Speaker Input Compatible
• Low-Level RCA Input Compatible
• Front 3.5mm Auxiliary Input
• Variable Subwoofer Level Control Knob
• Variable Subwoofer Frequency Knob

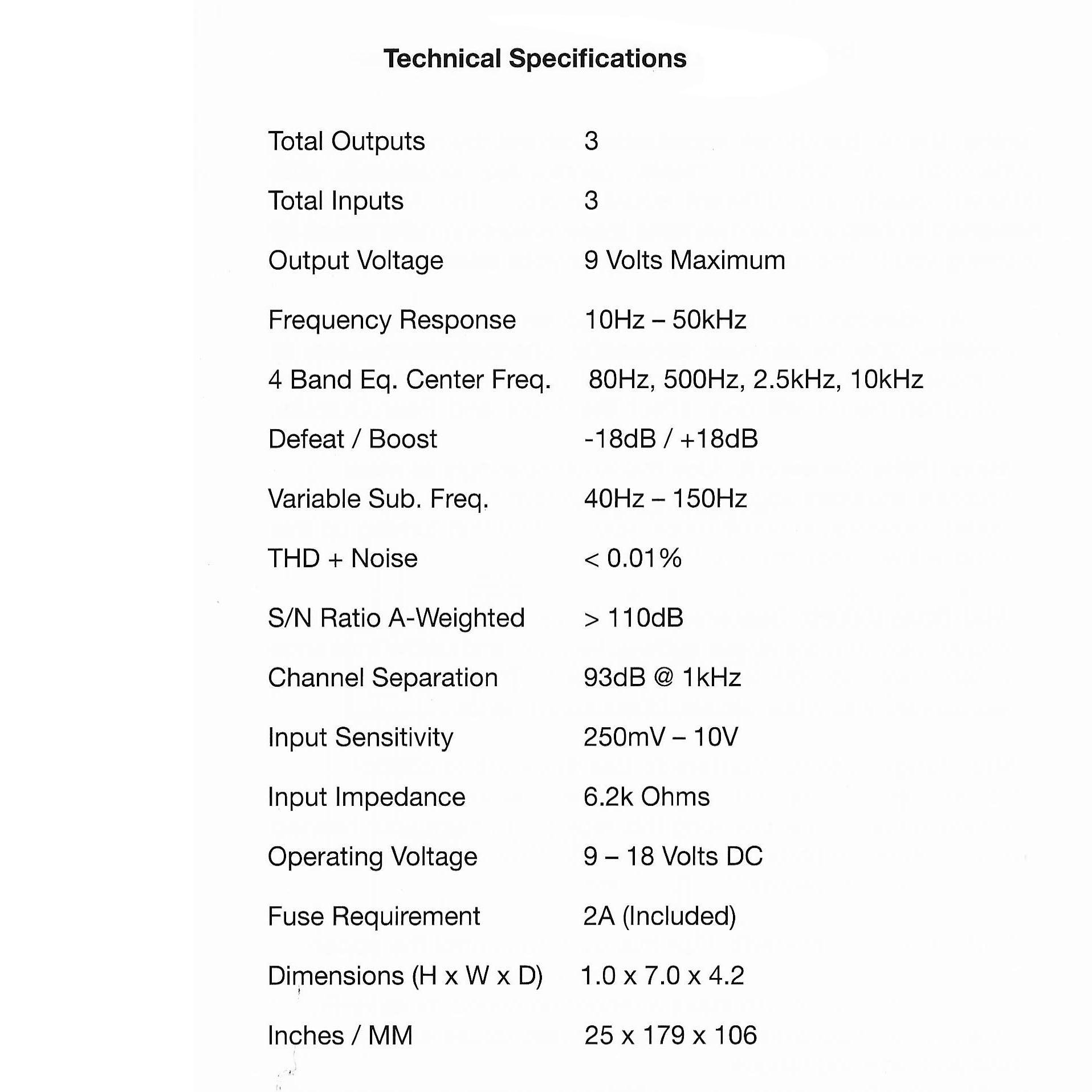

Specifications:

• Total Outputs: 3
• Total Inputs: 3
• Output Voltage: 9 Volts Maximum
• Frequency Response: 10Hz - 50kHz
• 4 Band Eq. Center Freq: 80Hz, 500Hz, 2.5kHz, 10kHz
• Defeat/Boost: -18dB/+18dB
• Variable Sub. Freq: 50Hz - 150Hz
• THD + Noise: <0.01%
• S/N Ratio A-Weighted: >110dB
• Channel Separation: 93dB @ 1kHz
• Input Sensitivity: 250mV - 10V
• Input Impedance: 6.3k Ohms
• Operating Voltage: 9-18 Volts DC
•  Dimensions: H x W x D: 1.0" x 7.0" x 4.2"
• Fuse Requirement: 2A (Included)

This listing is for one (1) Aunex AP-4EQ equalizer.
