DS18 Single Din Bluetooth Receiver With Mechless USB SDX1

Your radio serves as the central hub for your music, delivering a clean signal to your amplifiers for long-lasting performance and exceptional sound quality. The SDX1 is specifically designed for this purpose, offering precise and user-friendly controls to enhance your audio experience. This mech-less single DIN unit delivers a maximum of 50 watts across all four channels, while the preamp output is adjustable up to 7 volts. This mechless unit does not include a CD/DVD player. Instead, it features a USB, SD, and Bluetooth reader, allowing you to stream and access files from drives of up to 64GB. Radio stations come in clear and strong, and you can save your favorite stations to any of the 18 memory locations. Customize the unit's appearance with the backlit RGB keys to match your mood or existing color schemes. Please see below for more features and specifications.

Features

• Mechless Single Din USB/BT Receiver
• Single Din Perfect Fit Mounting
• FM Radio: 18 Memory Locations
• Source: USB, SD, BT Reader / Streamer
• Supported Media Files: MP3, WMA, FLAC, MAV

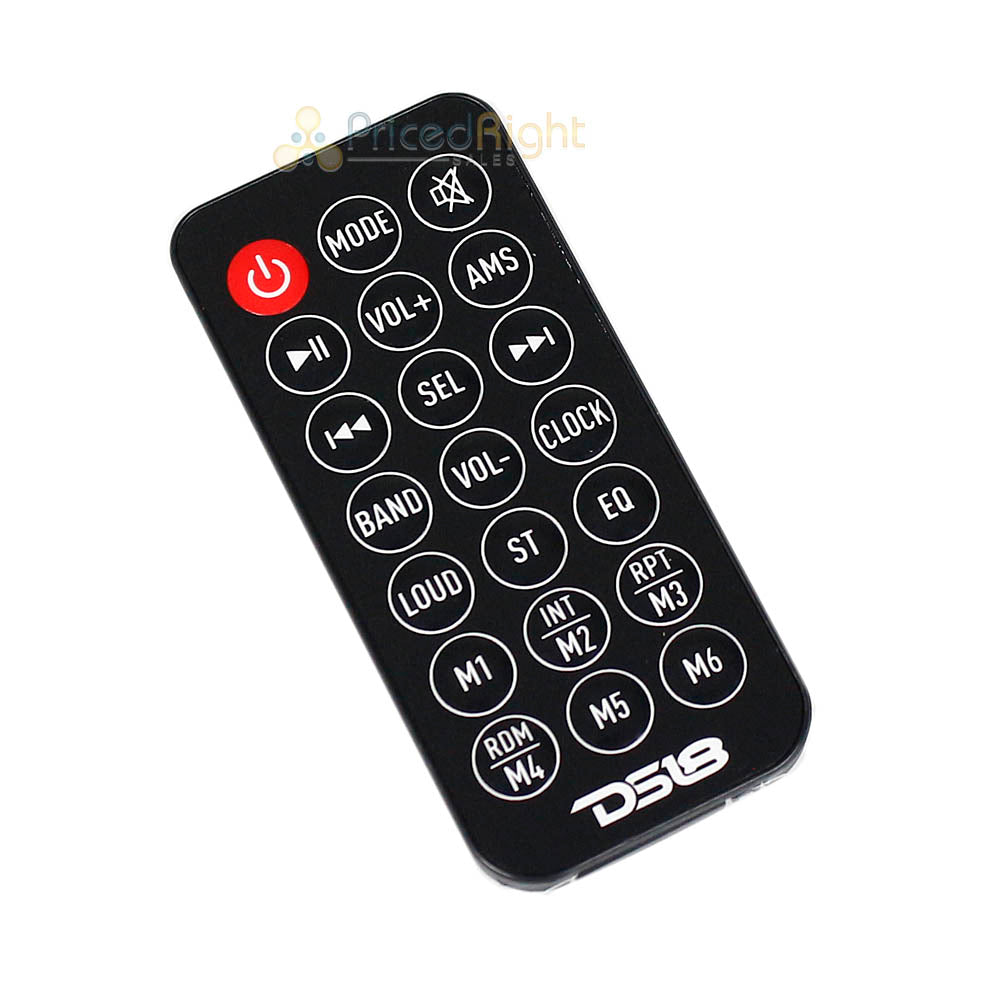

• Remote control: Infared
• RGB: 7 Selectable Colors
• Display: 3" VA White Backlit
• Power: 50 x 4 Watts Max
• Equalizer: 2 Bands with Adjustable Bass, Treble, and Subwoofer
• Pre-amp output: 7v
• Inputs: USB, SD, BT, Front AUX
• Rated power source 14.4V DC (11V to 16V operation)
• Maximum Current Consumption 10 Amp
• Dimensions (W x H x DI: Chassis 178mm x 50mm x 150mm
• Bezel frame 188mm x 58mm x 30mm
• Weight 15.9 Oz / 452 grams
• Screen Size 3” / 75 x 25mm
• Display Type VA LCD
• Temperature Operation -20°C to +60°C (14°F to 140°F)
• Maximum Power Output 50W X 4 Ch @ 4 ohm (14.4v)
• Continuous Power Output 17W x 4 Ch @ 4 ohm (14.4v)
• Pre-output Level 7 Volts (14.4V)
• Equalizer 2 bands (Bass: 60Hz, Treble: 10KHz)
• Audio Control Volume / Balance / Fader / Loudness / Bass / Treble
• Subwoofer Control Vol (0-20) / Cut (80/120/160 Hz)
• Signal to Noise Ratio >60dB
• THD <0.3%
• Frequency Response 20Hz – 20Khz
• Frequency Range FM: 87.5 ~ 107.9 KHz
• Presets Memory 18 Stations
• Region North America “USA”
• Sensitivity Adjustment LOC / DX & ST / Mono
• Sensitivity <20dB
• Stereo Separation >25dB
• Type/Class V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
• Format Files Supported MP3, WMA, FLAC, MAV
• Info Display Format ID3 Tag
• Memory Size Reader up to 64 Gb
• Max Current Supply 1.5 Amp (Charging USB port)
• Number of USB Ports 2 x Front (1 for Audio / 1 for Charging)
• Aux input Front 3.5mm Jack Stereo Audio

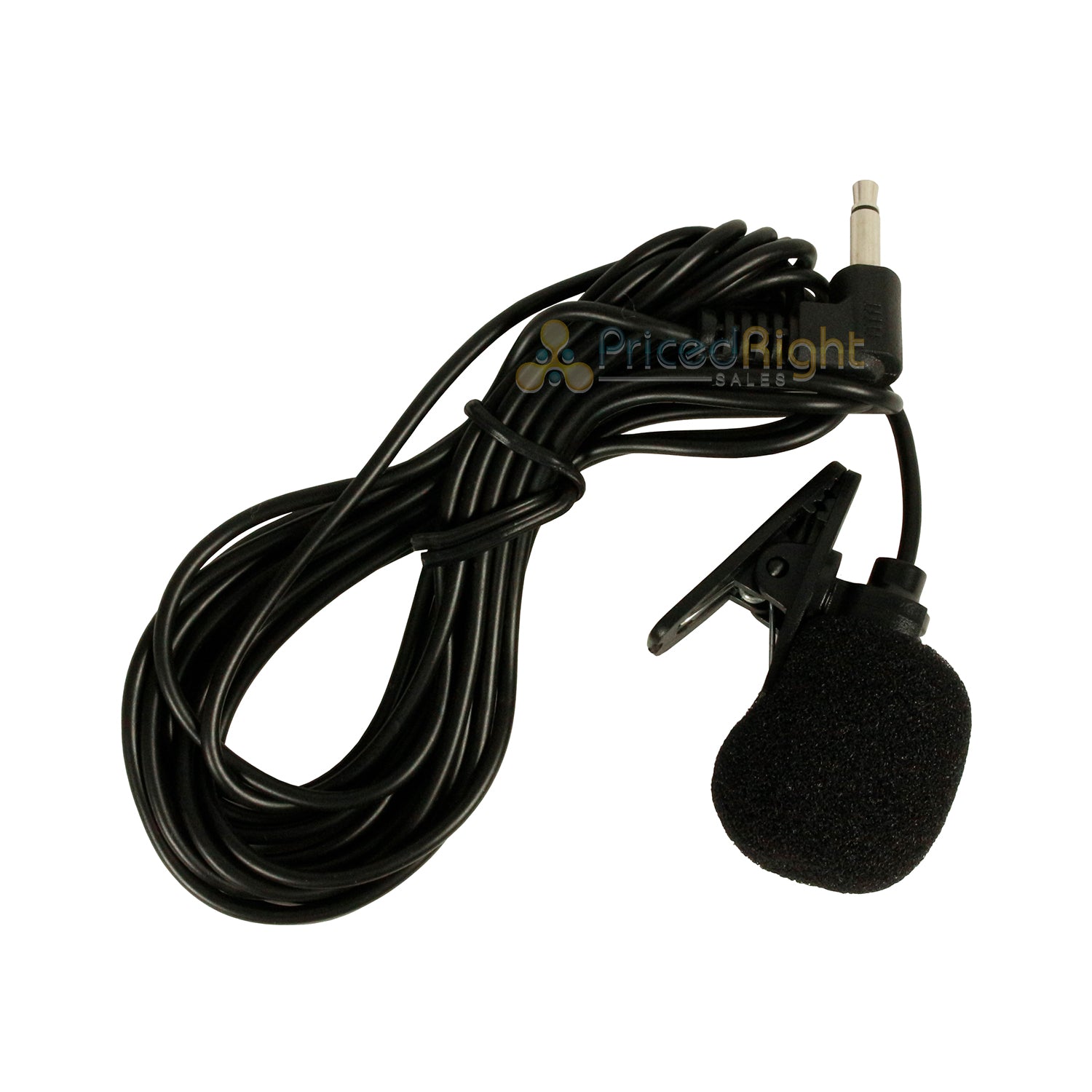

• Microphone Built-In Microphone on faceplate
• Remote Control Frontal IR Receptor
