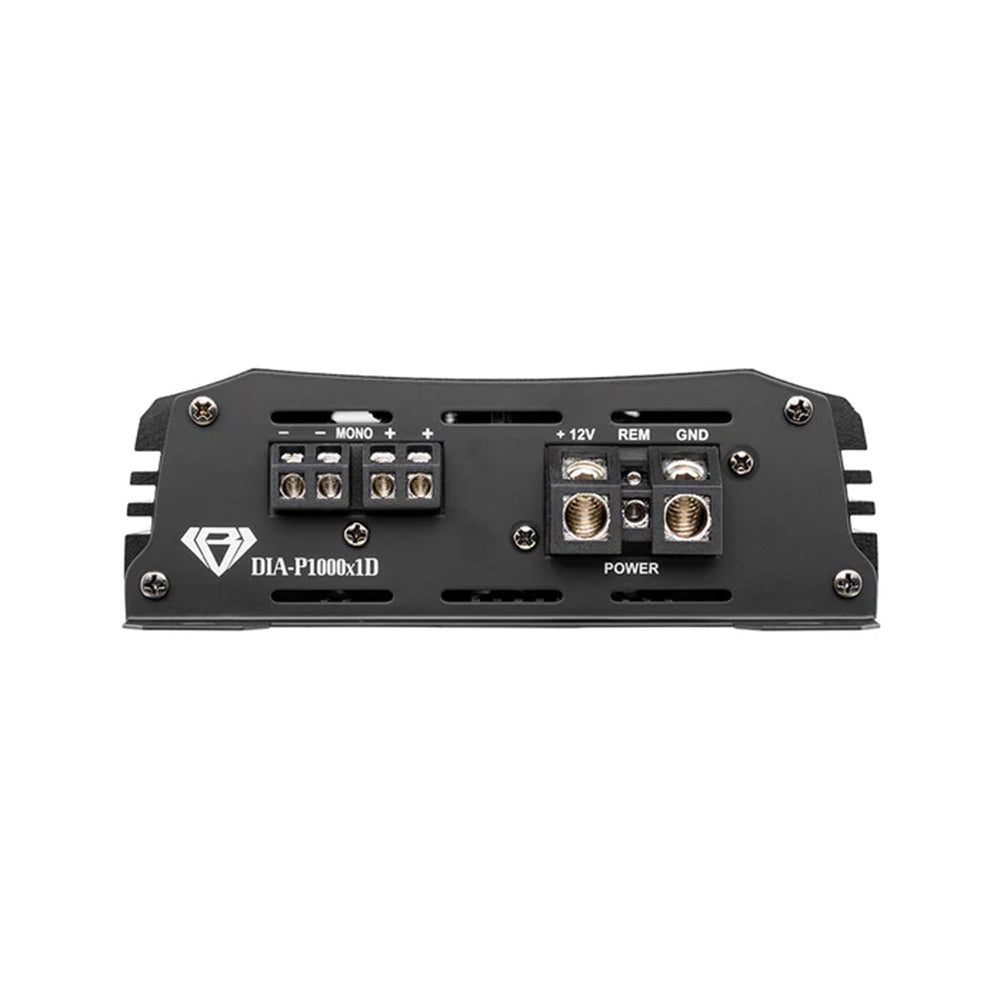

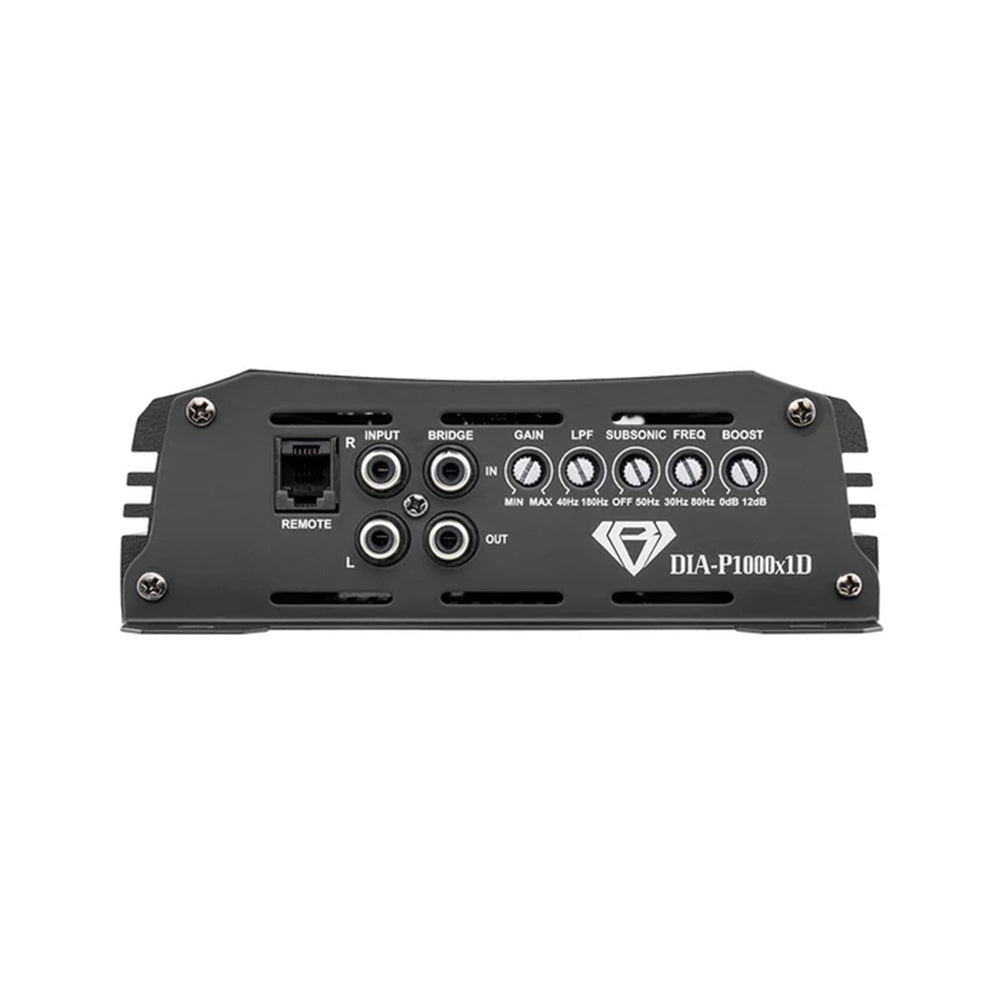

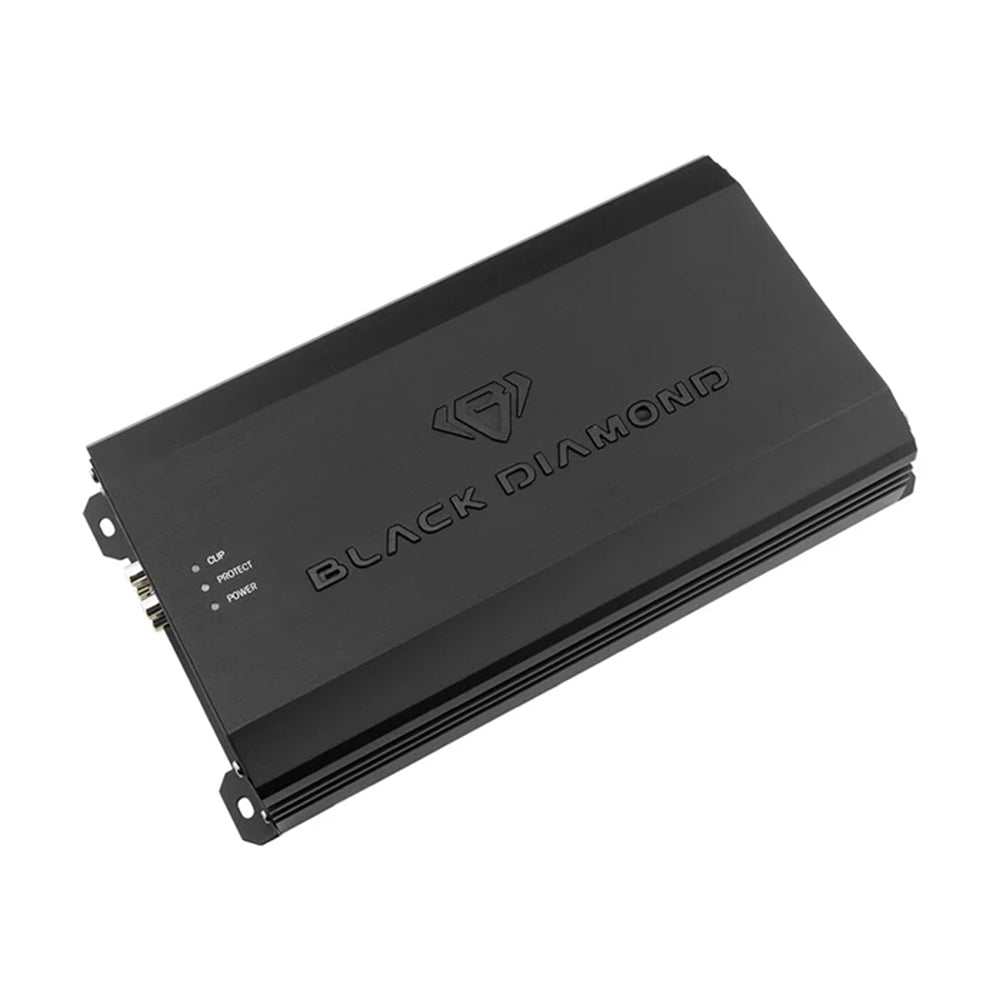

Black Diamond Class D 1 Channel Monoblock Amplifier 1000W RMS DIA-P1000X1D

The Black Diamond DIA-P1000X1D packs serious bass power into a compact, efficient design built for clean and reliable performance. Delivering 380W RMS at 4 ohms, 650W RMS at 2 ohms, and a full 1000W RMS at 1 ohm, this Class D monoblock is the perfect match for subwoofer setups that demand clarity, control, and chest-thumping power. With flexible filters and gain controls, you can fine-tune your sound exactly how you like it. Engineered with multiple layers of built-in protection and a rugged heatsink design, it runs cool while delivering consistent output. Add in remote-ready convenience, and the DIA-P1000X1D makes upgrading your system simple, powerful, and dependable.

Features & Specifications:

• RMS Power: 380W @ 4Ω, 650W @ 2Ω, 1000W @ 1Ω
• Peak Power: 3000W
• Frequency Response: 10Hz – 220Hz
• Adjustable Gain Sensitivity: 0.2V – 6V
• Bass Boost Switch: 0, 6, or 12dB
• Subsonic Filter: Adjustable 10Hz – 50Hz
• Low-Pass Filter: Adjustable 40Hz – 180Hz
• Built-In Thermal, Overload, Short Circuit, and DC Protection
• Rugged Heatsink for Superior Heat Dissipation
• Compact Size: 11.2” Length for Easy Installation

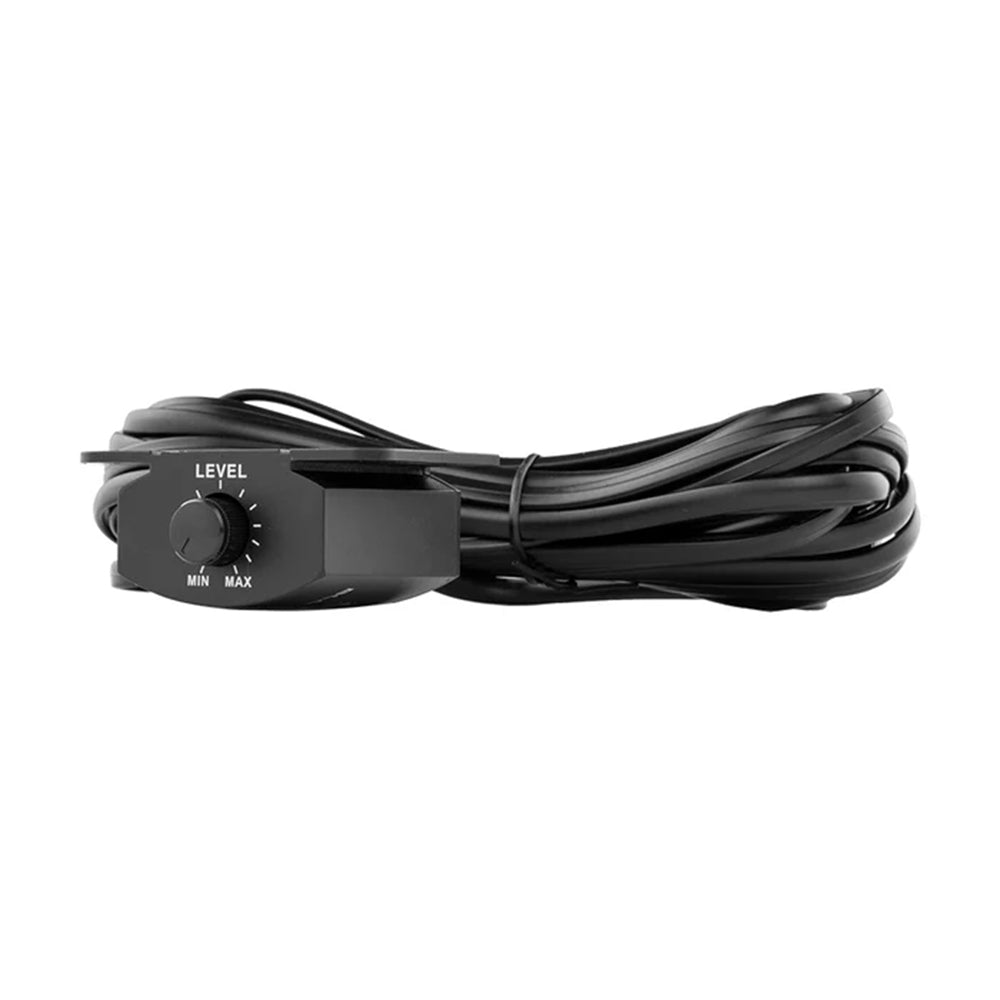

• Remote Bass Level Input Ready for Driver’s Seat Control
