Diamond Audio 10" DVC Subwoofer 1000 Watts Max Power Dual 2 Ohm Hex Series H102
Click to enlarge

Diamond Audio 10" DVC Subwoofer 1000 Watts Max Power Dual 2 Ohm Hex Series H102 Diamond Audio 10" DVC Subwoofer 1000 Watts Max Power Dual 2 Ohm Hex Series H102

$419.99 $429.99

Vendor: Diamond Audio

SKU: H102

UPC Code: 847169020261

Categories: Electronics, Featured Electronics, Subwoofers,

Tags: 10" Subwoofers, 301-600 Watts, 501-1000 Watts, Dual 2 Ohm,

Diamond Audio 10" Subwoofer Dual 2 Ohm H102

Diamond Hex Series subwoofers deliver tremendous quality bass bringing booming life around any audio system. They sound dynamic and are precision crafted to withstand the demands exerted by long-extended listening sessions. Diamond Hex series utilizes an inter-cooled motor design with a vented pole piece for cooler operation and a 3" copper high-temperature voice coil on aluminum high strength formers which will be able to help you feel the max output of 1000 watts max power wherever you go.

Features

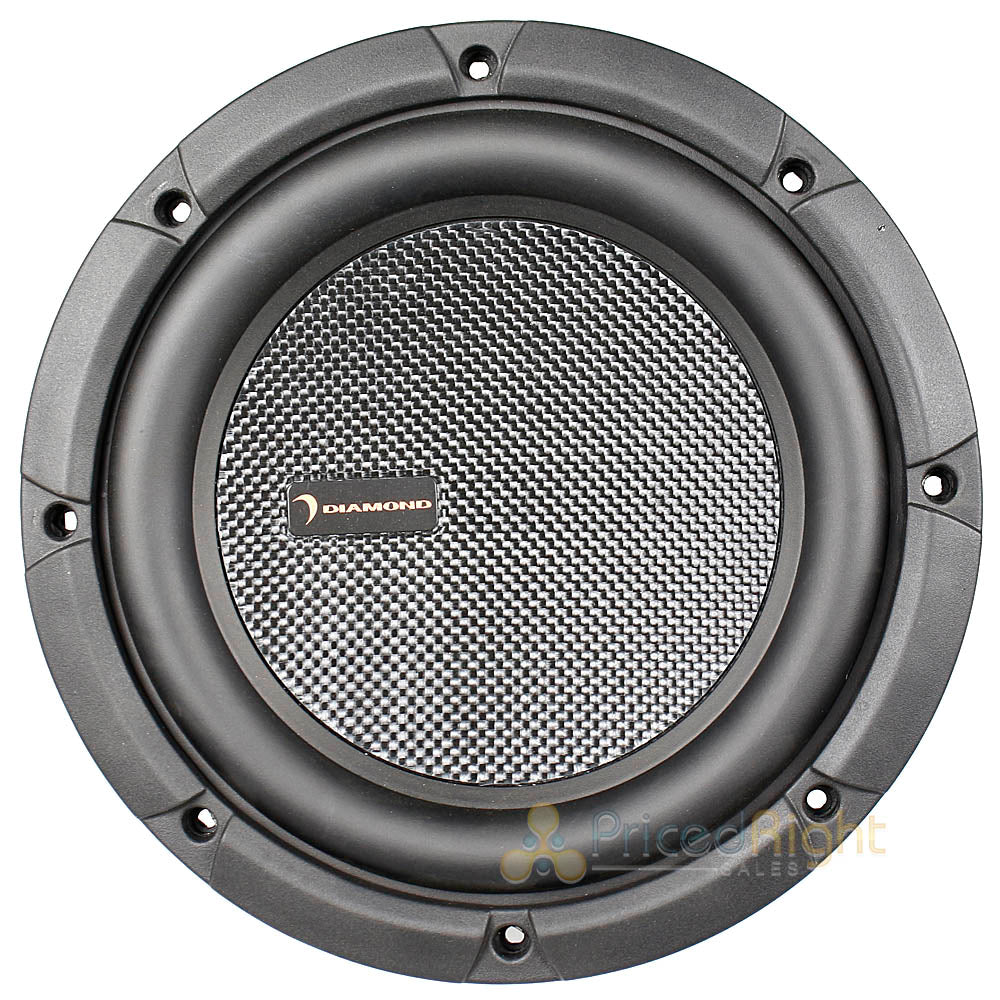

• Kevlar fiber reinforced semi-pressed paper cone

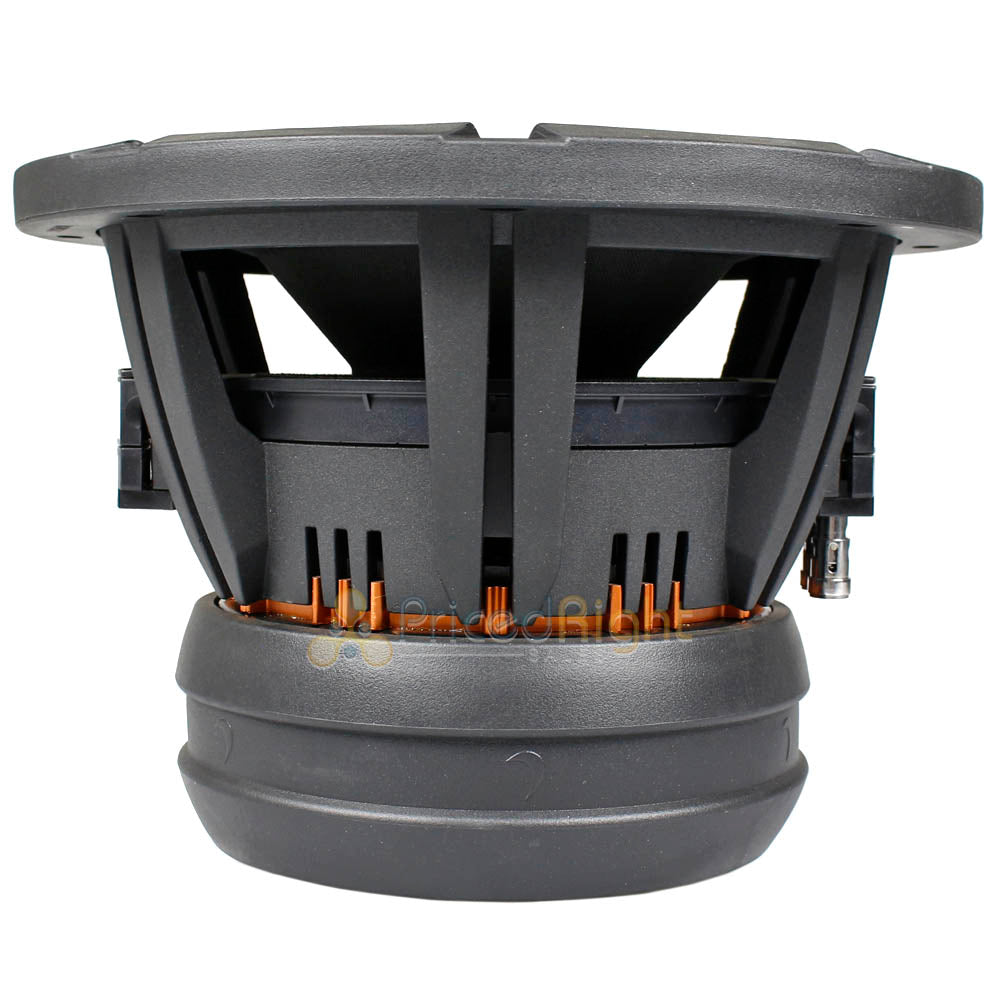

• Cast aluminum frame with aluminum radiating heatsink
• Dual 3" four-layer voice coil
• Intercooled motor design with vented pole piece
• Dual mirror image flat spiders
• 3" copper high-temperature voice coil on aluminum high strength formers
• Motor and suspension symmetry optimized using Klippel DA

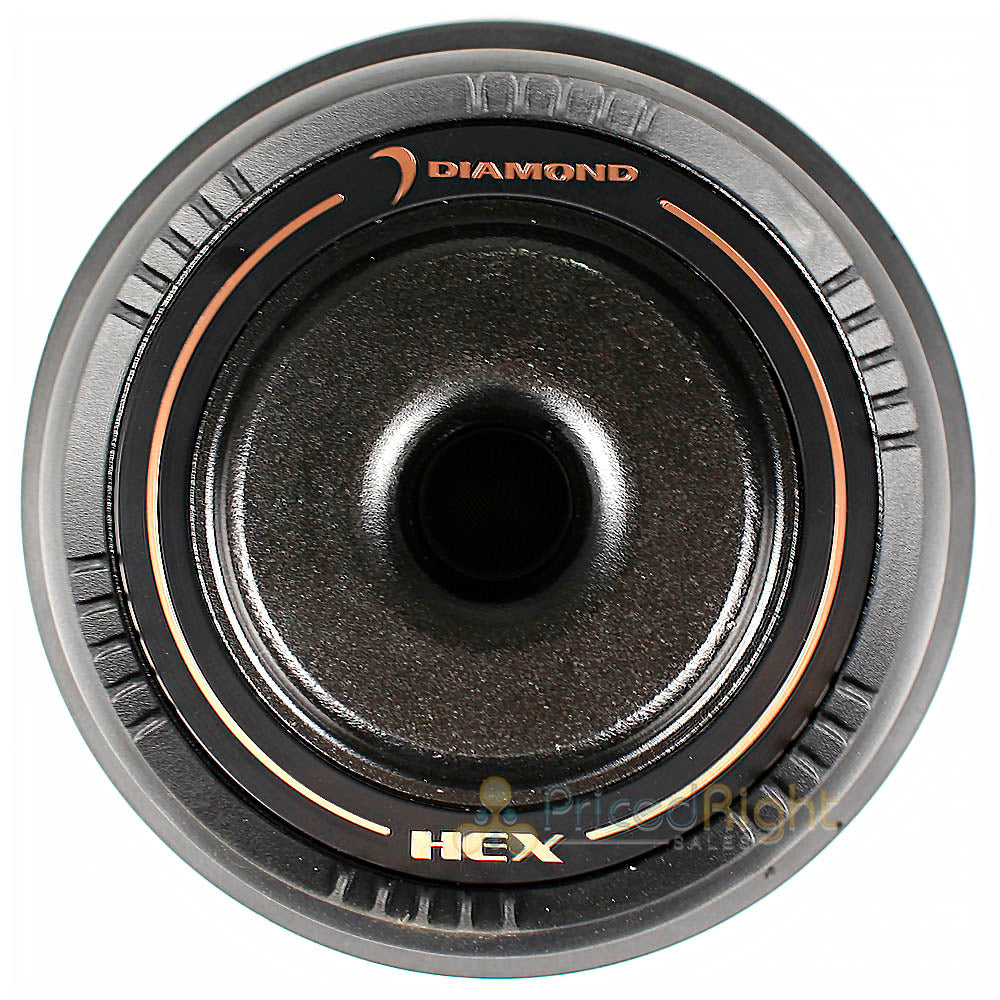

• Copper anodized aluminum elevated cooling ring

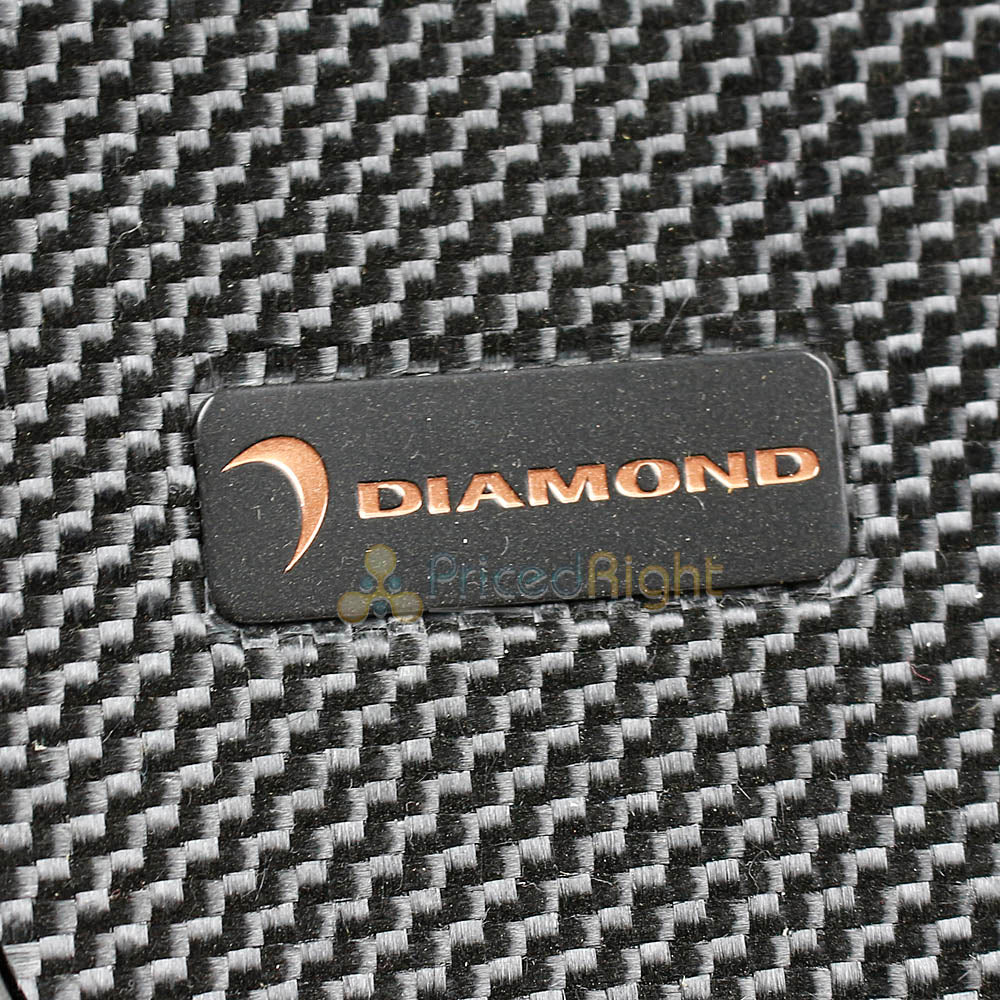

• 2 part high strength paper and laminate fiberglass dust cap for high strength
• Unique high strength 3 point, 3 process neck joint bonding technique

Measurements

• Total Diameter: 10.7"
• Mounting Diameter: 9.0"
• Hole Diameter: 9.7"
• Mounting Depth: 7.0"
• Magnet Diameter: 7.2"

Specifications

• SPL (dB):81
• Re (Ω) [series]:4.0
• Qms:4.0
• Qes:0.42
• Qts:0.38
• Fs (Hz):27
• Vas(L):17.9
• Cms (mm/N):0.130
• Mms (g):274
• Sd (m2):0.032
• BL (T*M):22.2
• Xmax:17.8

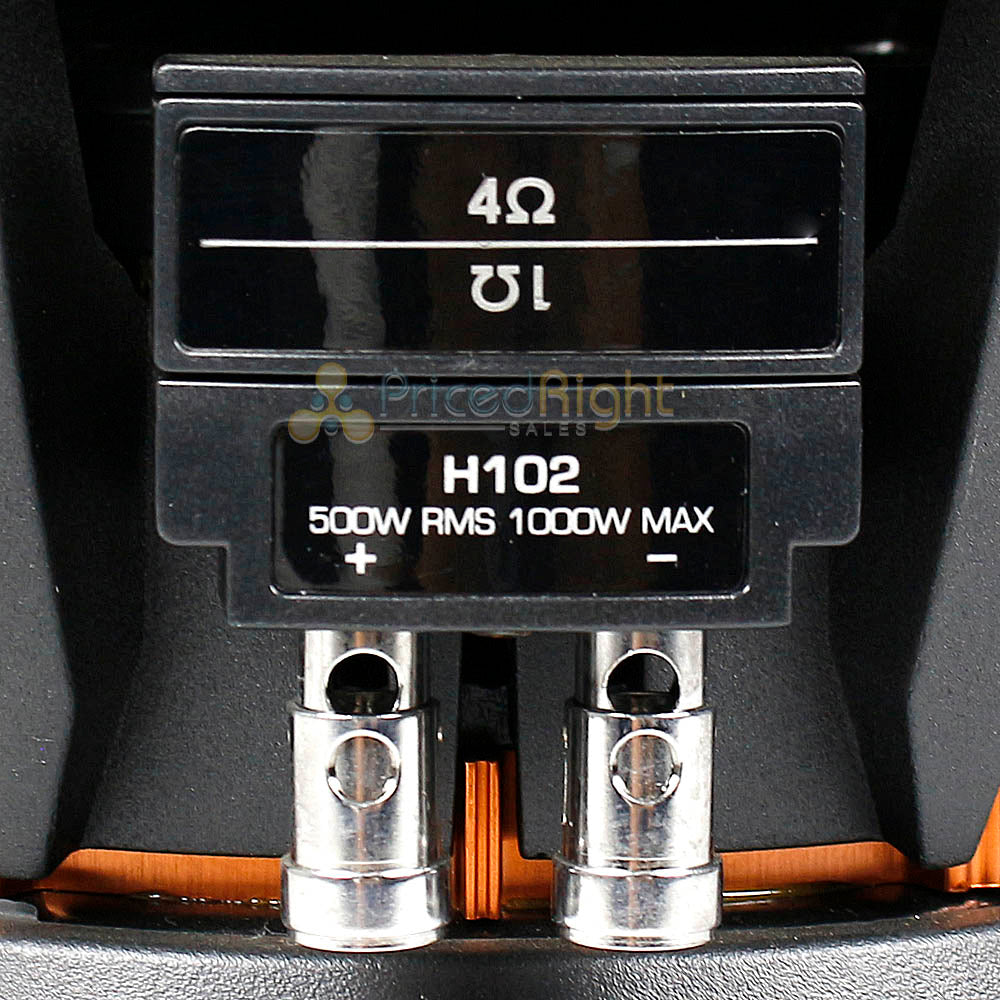

• Power Handling (W) nom/max:500/1000
