Diamond Audio 4 Channel Digital Amplifier Hx600.4

This amplifier is manufactured by Diamond Audio to operated at a total power of 600 Watts Max and crafted with the best components on the market. It has a high density aluminum alloy heat sink with a backlit logo bringing you style and longevity in a compact system. With a BTR port it gives you the option to control it via Bluetooth and integrated soft clip light for quick system set-up.

Features

• Total power: 600W
• Power @ 4 Ohm: 160W4ch
• Power @ 2 Ohm: 250W4ch
• THD: 0.06%
• Frequency response: 10Hz-35Hz-(3dB)
• Signal to noise ratio: 95dB
• Channel separation: 50dB
• Overall efficiency: 80%
• Input sensitivity: 0.2-5.0V
• Dimensions: 11.8" x 7.67" x 2"
• Anodized extruded aluminum heat sink provides superior thermal performance
• 4 Layer PCB board with balanced differential inputs
• Full range class D IR chipset
• "Snap" Capacitors used throughout the circuit
• Audiophile grade high tolerance components
• Spring steel FET clips provide a cleaner board design
• Illuminated Logo/Fully concealed mounting
• Output clip indicators for precise set up

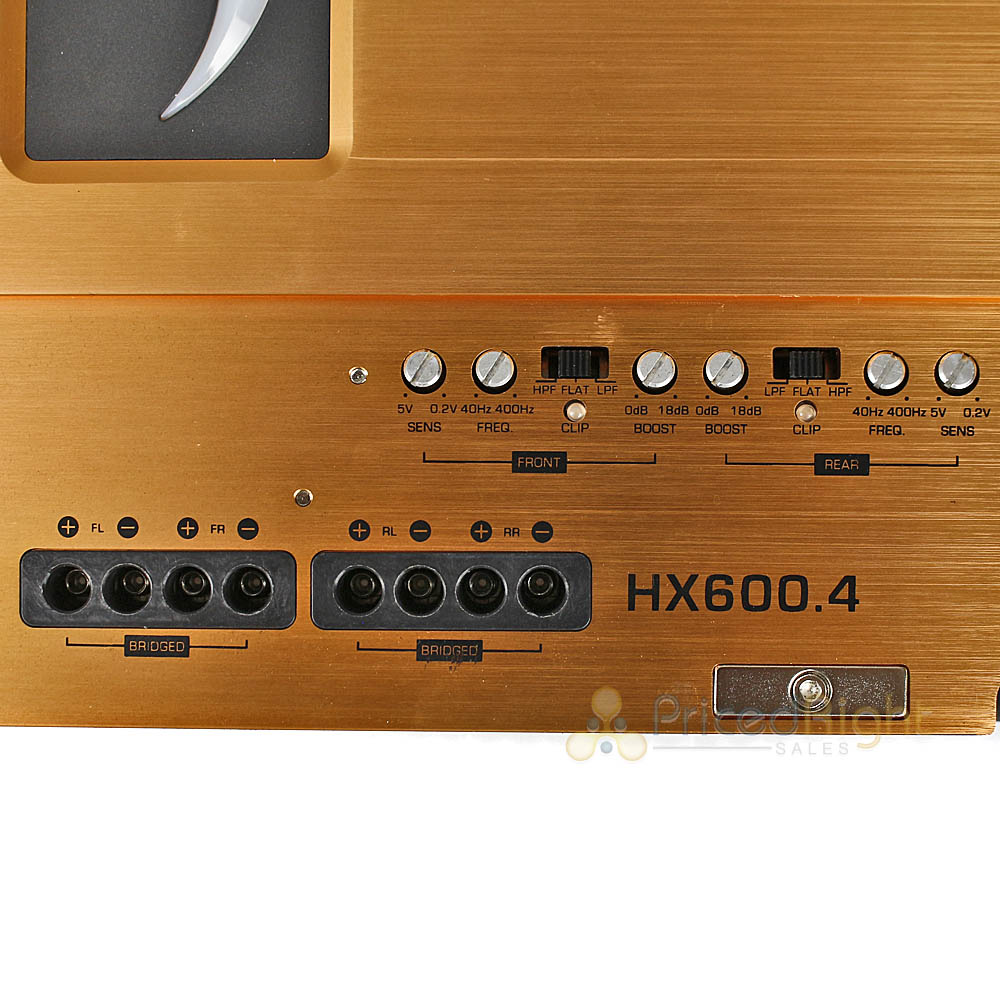

• Fine tuned fully variable crossovers and phase control

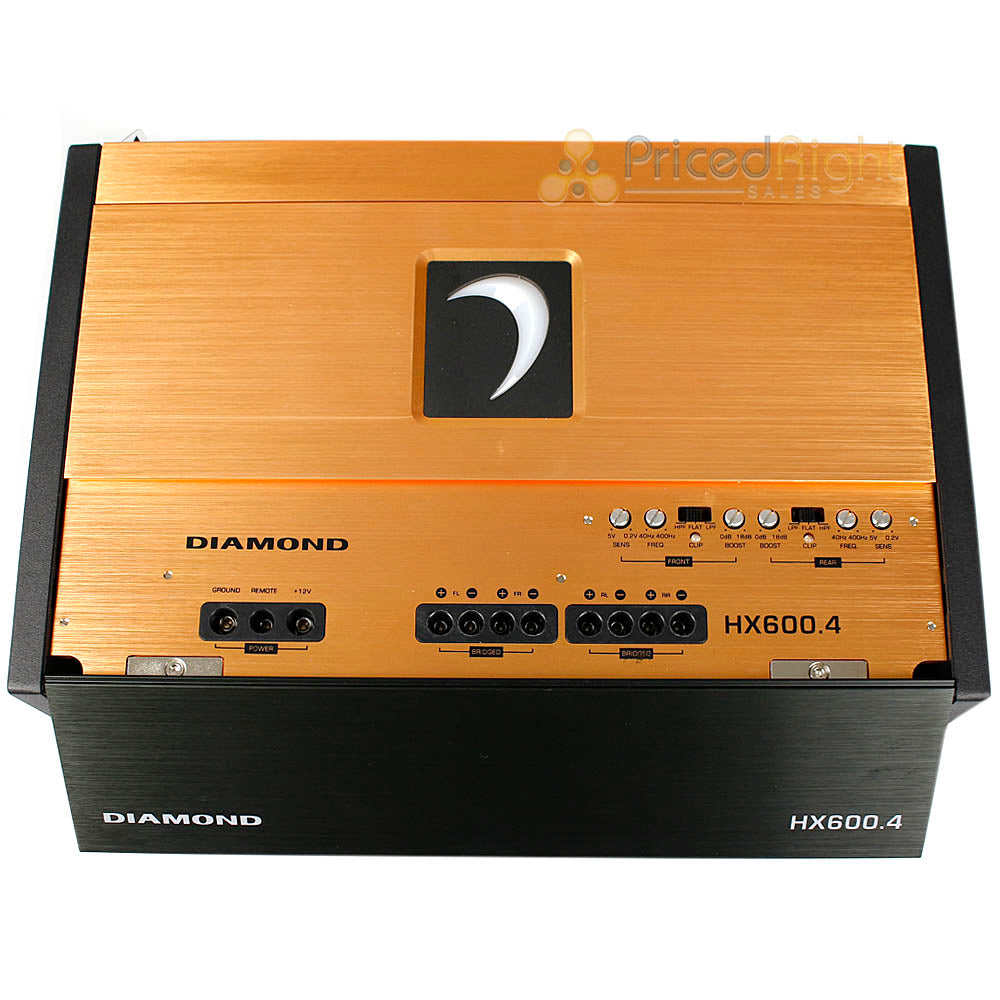

• Top mounted controls for convenient amplifier adjustment
