Diamond Audio 6.5" Midrange Speakers Motorsport High Output 4 Ohm MP654

Diamond Audio products are designed, developed, and engineered using the latest innovative materials and components to provide the finest sound reproduction possible. These speakers use a pro audio design that gives you great levels of output. The new Diamond Audio MP654 speakers are a perfect solution for Harley baggers. These speakers are an easy fit and do not require an additional tweeter location on the fairing. They simply bolt into the factory speaker locations. Pumping out at 300 watts max and an advanced voice coil heat sink design for better heat dissipation, you'll achieve crystal clear, concert-quality music you can hear at any speeds. These speakers were designed to work just as great in the saddlebags of motorcycles at top speeds.

Features

• High power handling
• High temp NEO magnet structure
• Heavy-duty cast aluminum basket
• Advanced voice coil heat sink design for better heat dissipation
• 1.5"-2.0" Single-layer high temp black coated voice coil former for woofer
• 1.0" Single-layer high temp voice coil for tweeter
• High sensitivity>101dB 1W/1M

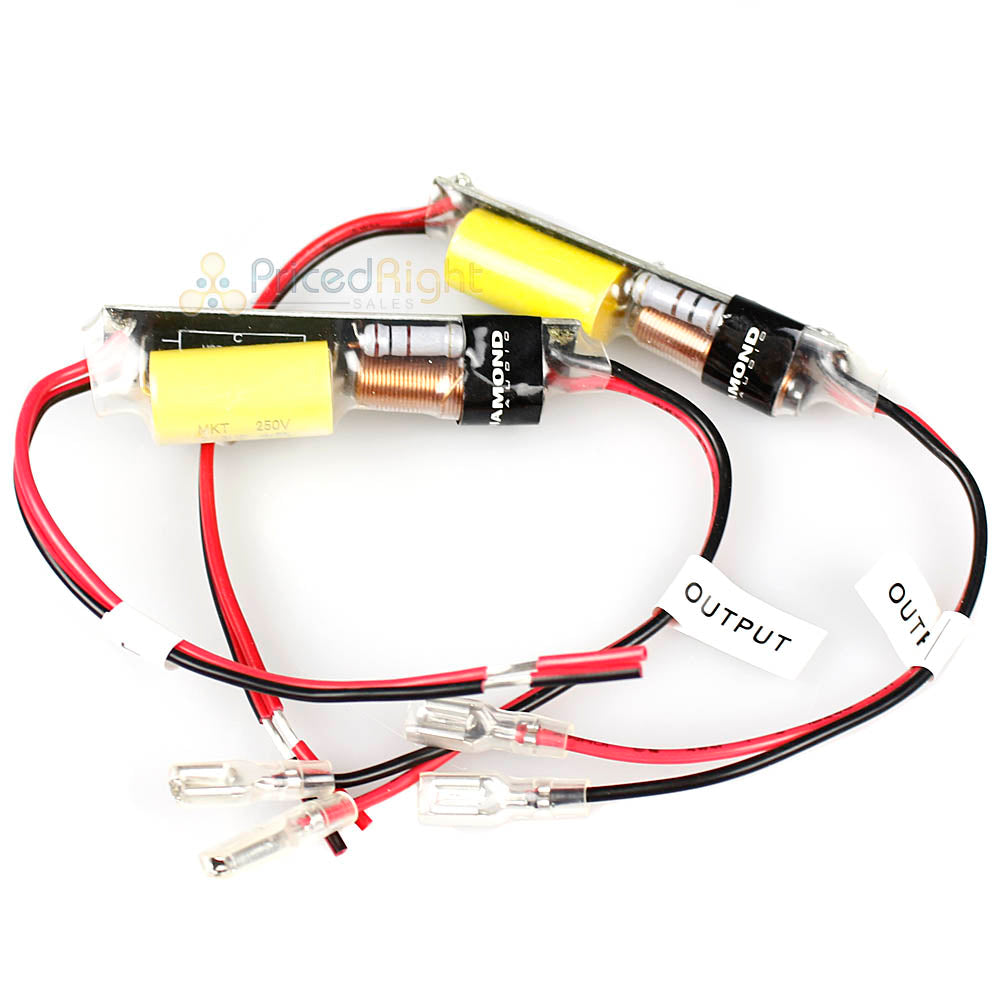

• 12dB Crossover 2nd Order filter

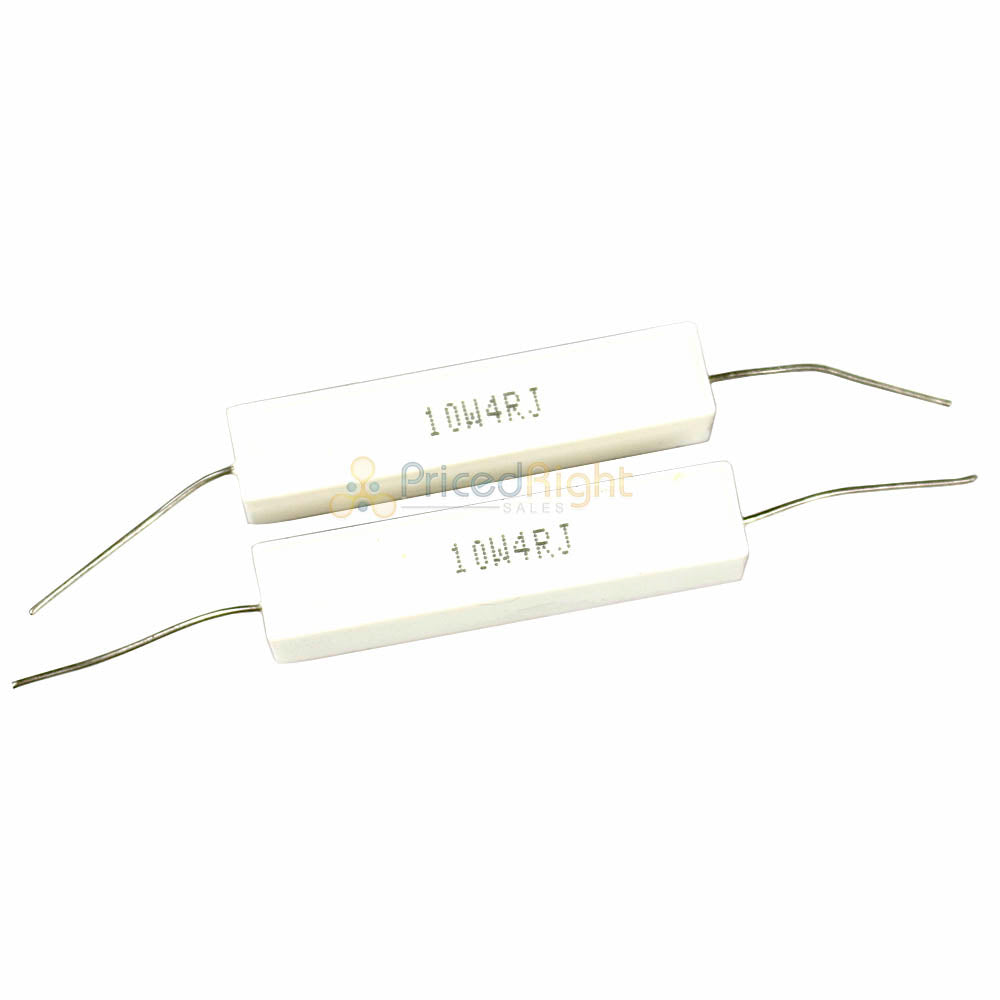

• 4 Ohm Resistor also included( for tweeter attenuation)
• Nominal impedance: 4-ohm Mid/ 8-Ohm Tweeter
• Light weight
• Slim Depth

Specifications

• Total Diameter: 6.52"
• Mounting Diameter: 5.73"
• Mounting Depth: 3.33"
• Total Depth: 3.88"
• Magnet Diameter: 3.94

Thiele/Small Parameters

• SPL Midbass (dB): 92.7
• SPL Tweeter (dB): 107
•Re (Ohm): 3.2
• Qms: 10.73
• Qes: 0.47
• Qts: 0.45
• Fs (Hz): 103.3
• Vas (L): 6.6
• Cms (mm/N): .24
• Mms (g): 9.7
• Sd (M²): 138.9
• BL (T*M): 6.5
• Xmax (mm): 1.0
• Pwr (W) Nom/Max: 150/300
