Diamond Audio 1 Ch Monoblock Amplifier 500W x 1 @ 2 Ohm DMD Series DMD500.1D Diamond Audio 1 Ch Monoblock Amplifier 500W x 1 @ 2 Ohm DMD Series DMD500.1D
Diamond Audio 1 Channel Digital Amplifier DMD Series DMD500.1D
The Diamond Audio DMD500.1D 1 Channel 500 watt amplifier is perfect if you are looking for a high output amplifier to push your subwoofers. The balance differential inputs for noise free operation gives audio precision quality where every you go. Its common compact size makes installation easy so finding the perfect spot to mount it is no hassle.
Features
• 500Watts @ 2 ohms RMS Output
• 340Watts @ 4 ohms RMS Output
• Frequency Response: 20-250Hz
• Signal To Noise Ratio: >90dB
• Dampening Factor: > 250
• Overall Operation Efficiency: >88%
• Subsonic Filter:10-55Hz
• LPF Filter:50-250Hz
• Bass Boost:0-18dB
• Level Input Range:0.2-10V

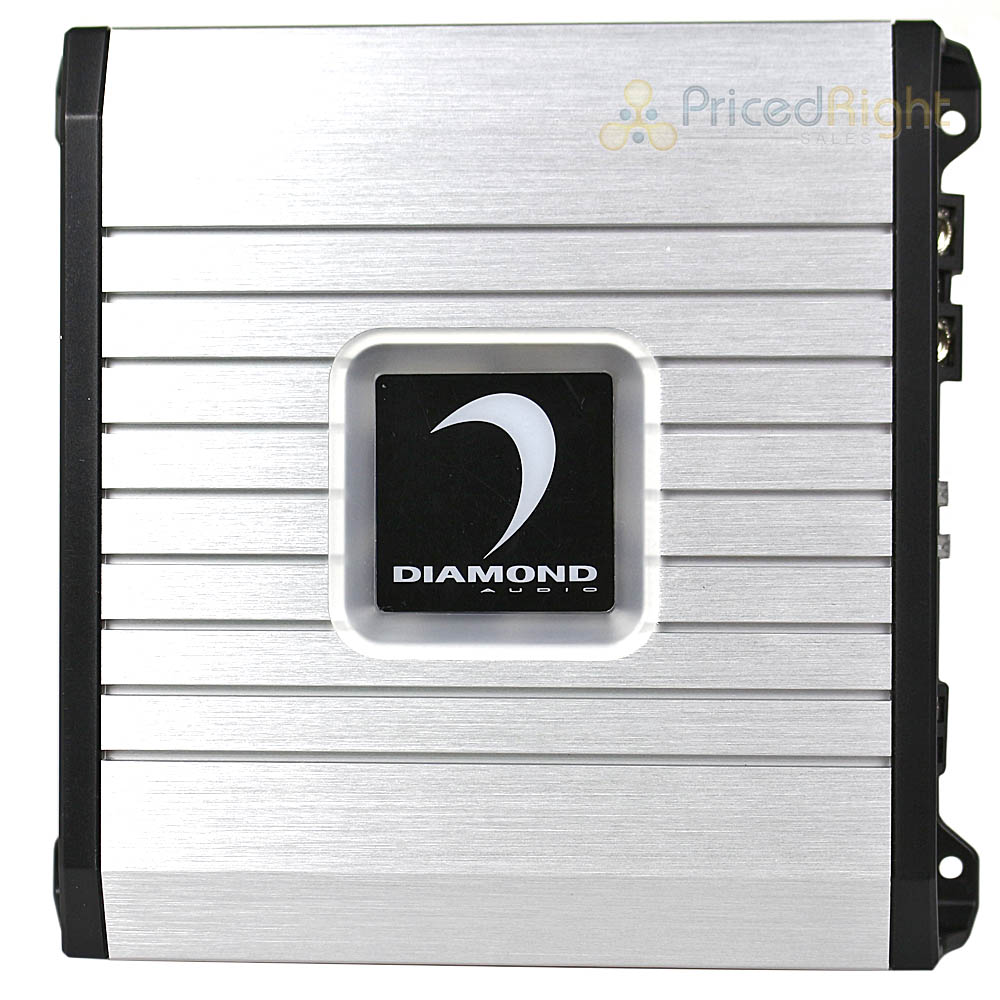

• Hidden Led Lights under Logo Badge indicate working status: Power/Protection
• Gain Input Sensitivity Clipping Indicators

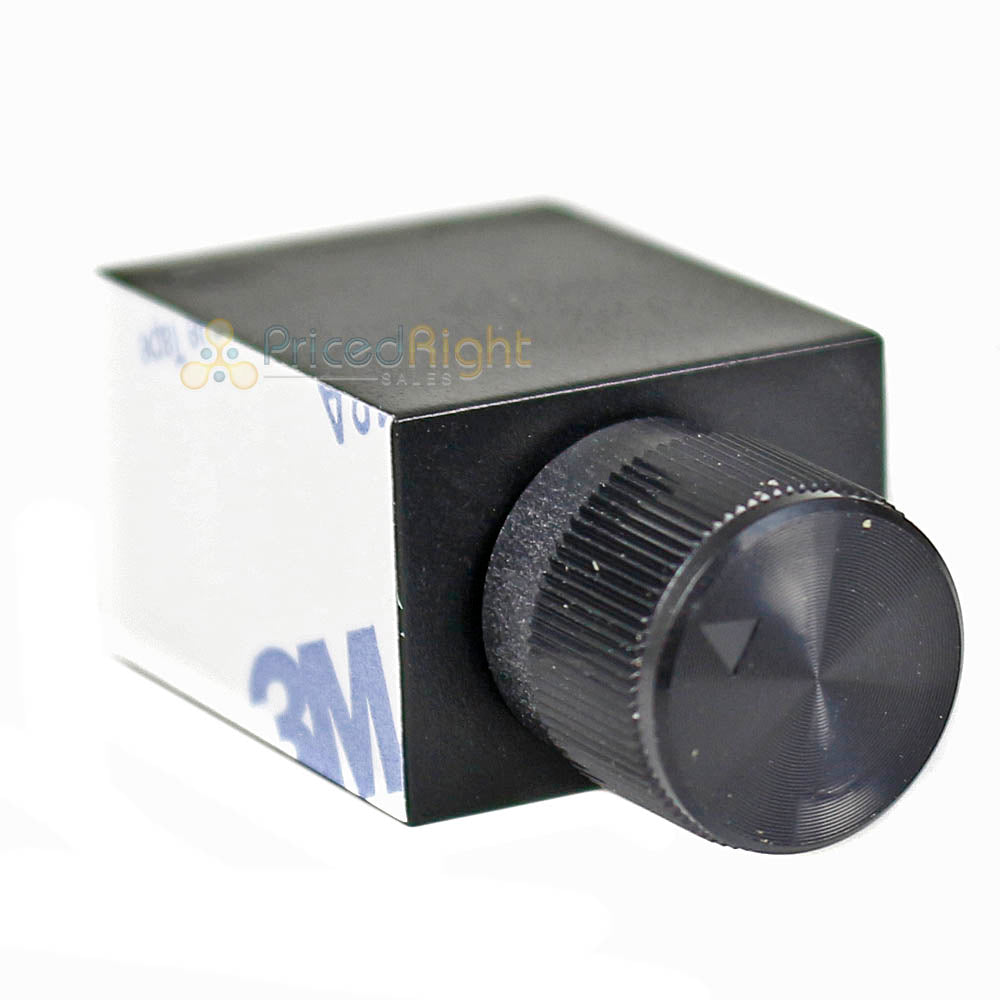

• Bass Level Remote Controller
• Monoblock IR Chipset Digital Circuit Design
• DirectFET power Mosfet Output Stage
• Compact Size to easy Installation
• SMD Technology on 4 Layers FR4 PC Board
• Balanced Differential Inputs for Noise-Free Operation Regardless of the Source
• Audio Precision Quality Control Verification
