Diamond Audio 1" Motorsport High Output Short Throat Tweeters M1SRT

These high output short throat tweeters have a unique phase plug that has been optimized to produce the best sound quality possible. Its short throat and composite rubber mounting frame give you a variety of different mountable options to place them where you see fit. Able to pump out 100 Watts and a radial slit phase plug, this tweeter has ready to give you great audio that you will enjoy everywhere you go.

Features

• 1" Compression extreme output tweeter-short horn version
• 50W RMS/ 100W Max power handling
• 107dB Sensitivity
• Composite rubber mounting frame

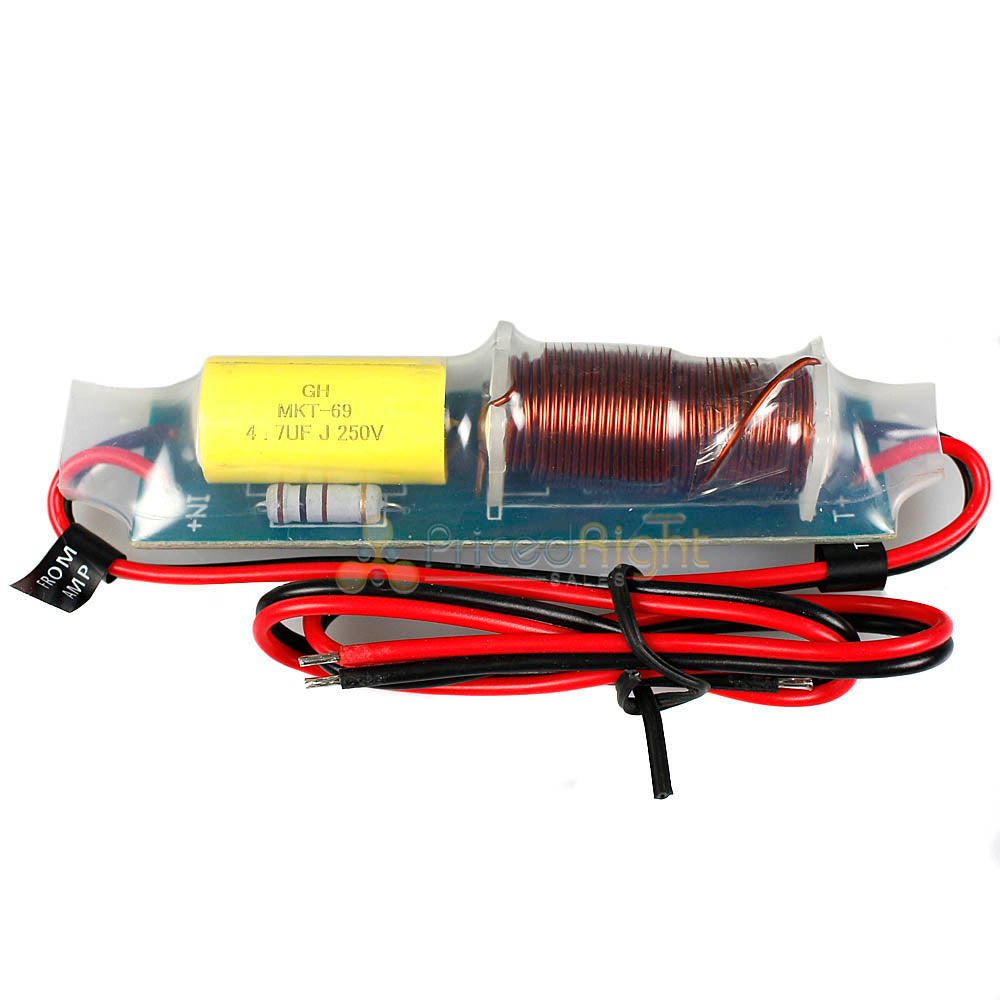

• 12dB Crossover included for maximum protection

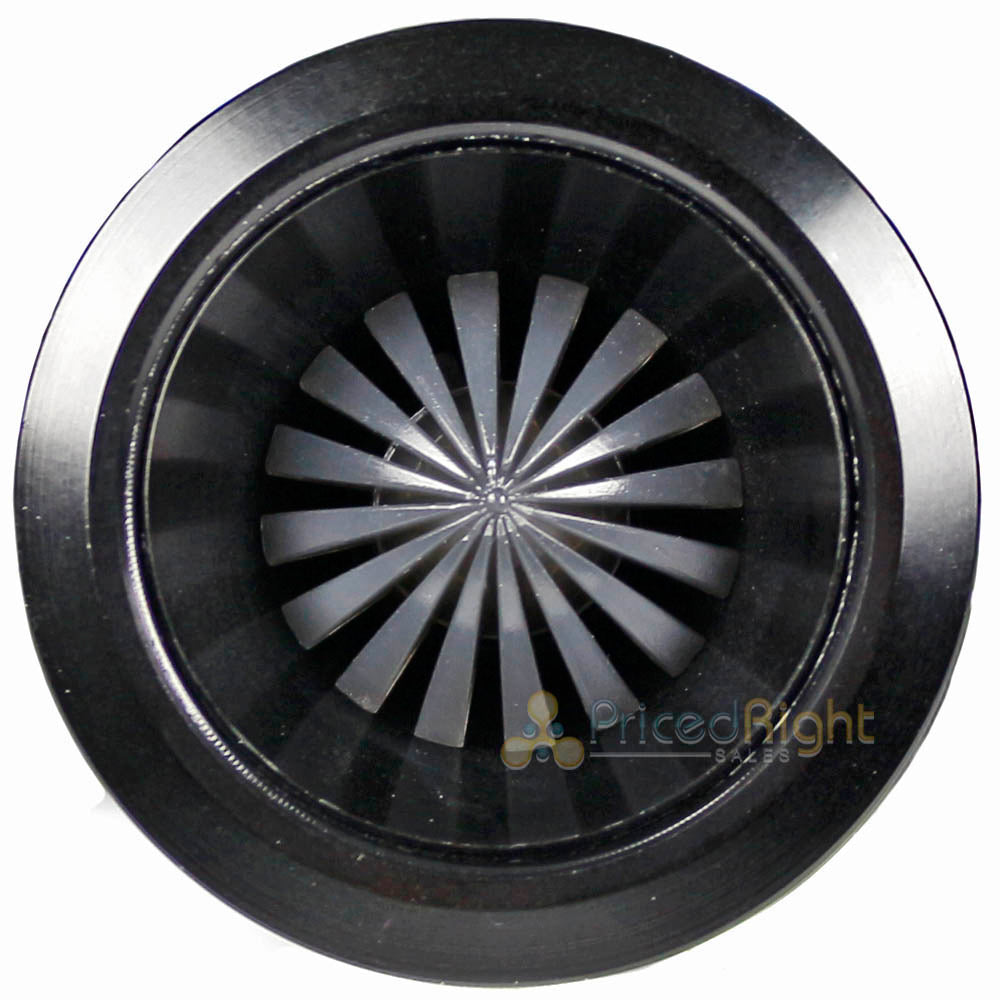

• Radial slit phase plug for better response

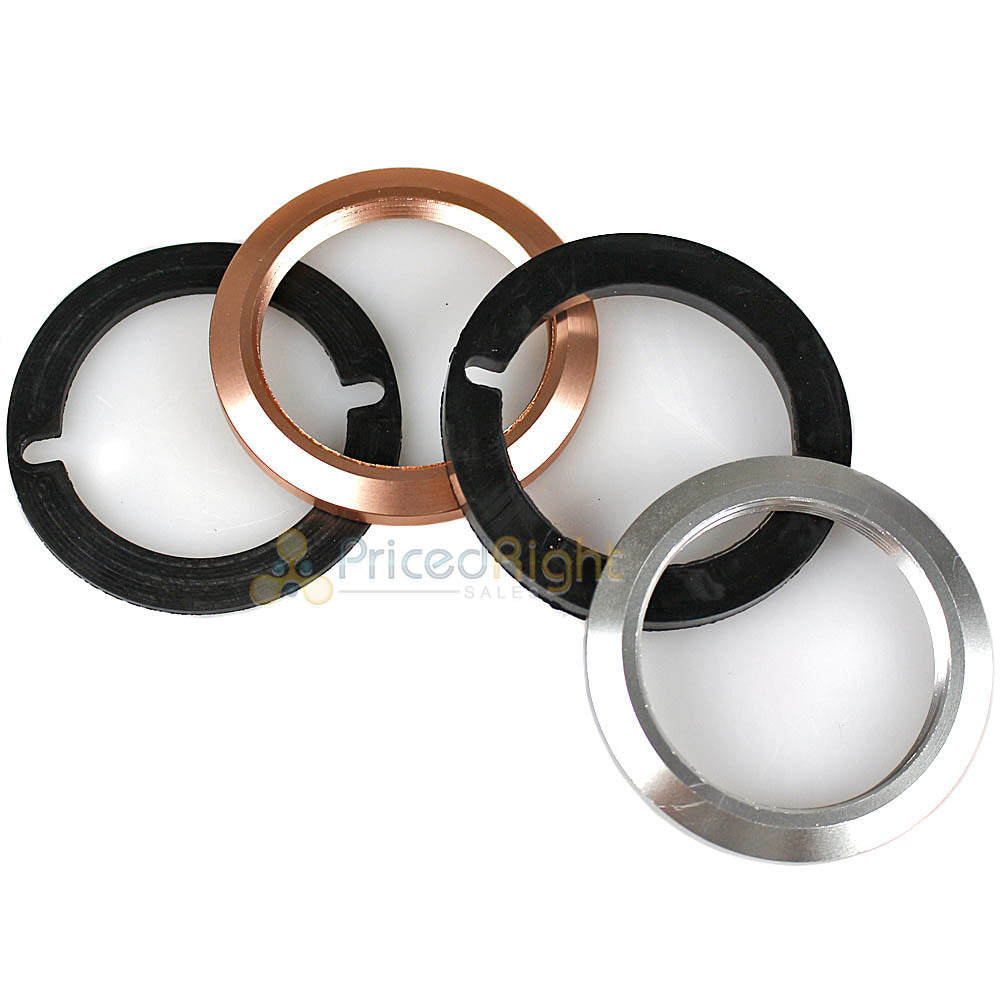

• Re-buildable diaphragm replacement design
• Frequency response: 3K-20KHz
• Nominal impedance: 4 Ohm

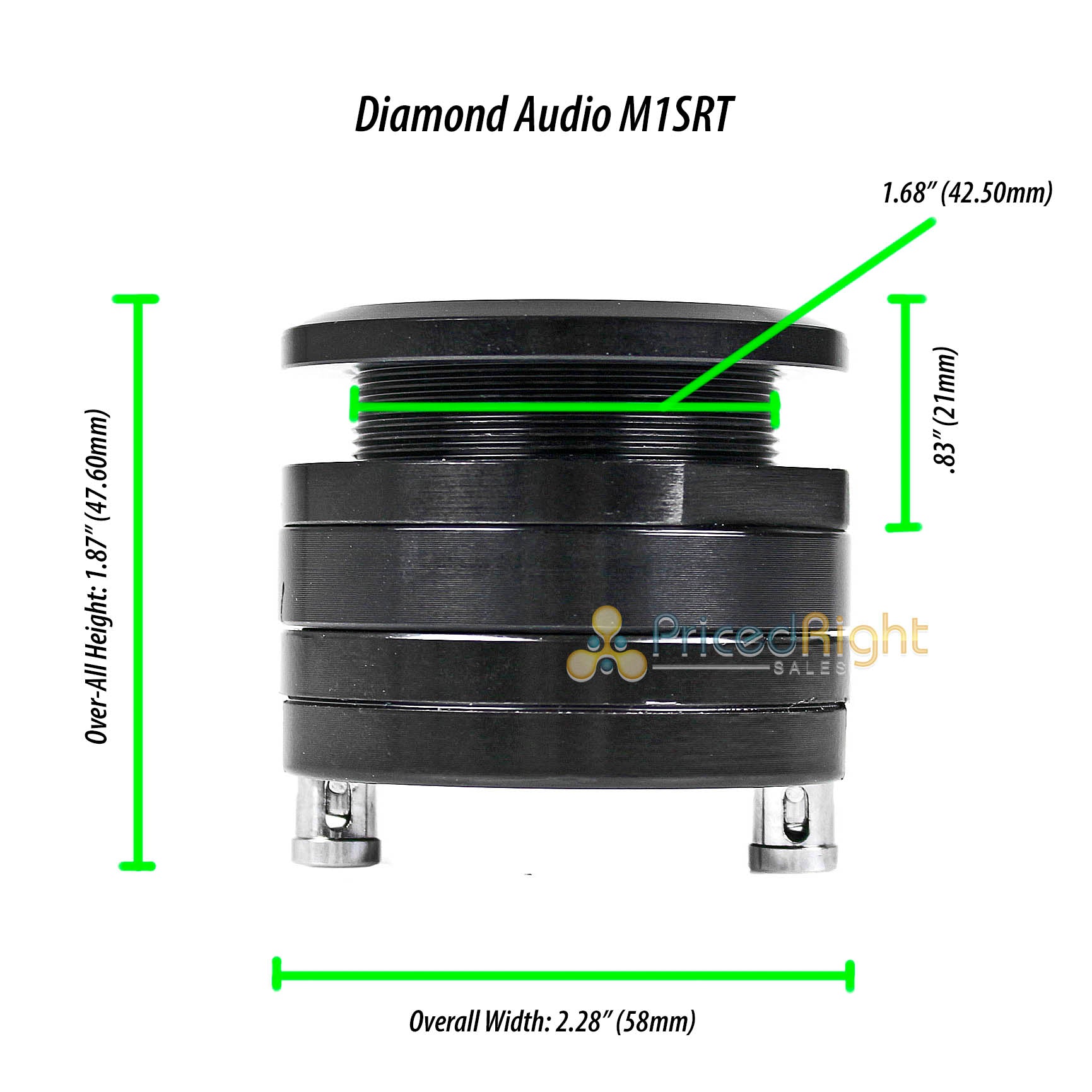

Physical Specifications:

• Front of Horn to Magnet Depth: 0.83" (21mm)
• Depth Front to Back Magnet: 1.8" (45.6mm)
• Overall Width: 2.28" (58mm)
• Mounting Width: 1.68" (42.50mm)
Overall Height: 1.87" (47.60mm)
