Diamond Audio 10" Subwoofer 400 Watts Max Power Dual 4 Ohm DVC DMD Series DMD104 Diamond Audio 10" Subwoofer 400 Watts Max Power Dual 4 Ohm DVC DMD Series DMD104
Diamond Audio 10" Subwoofer Dual 4 Ohm DMD104
The Diamond Audio 10" full size Dual 4 Ohm subwoofer designed to get you maximum performance when it comes to bass clarity. It has a high temperature 2" copper voice coil on aluminum high strength former. The klippel optimized motor and suspension symmetry and high density NBR half roll makes this sub optimized for linear travel. Having a vented pole piece for cooler operation, you will be able to feel the max output of 400 watts max power wherever you go.
Features
• Black plypropylene fiber weave cone
• High grade rolled edged 4 leg black powder coat stamped frame

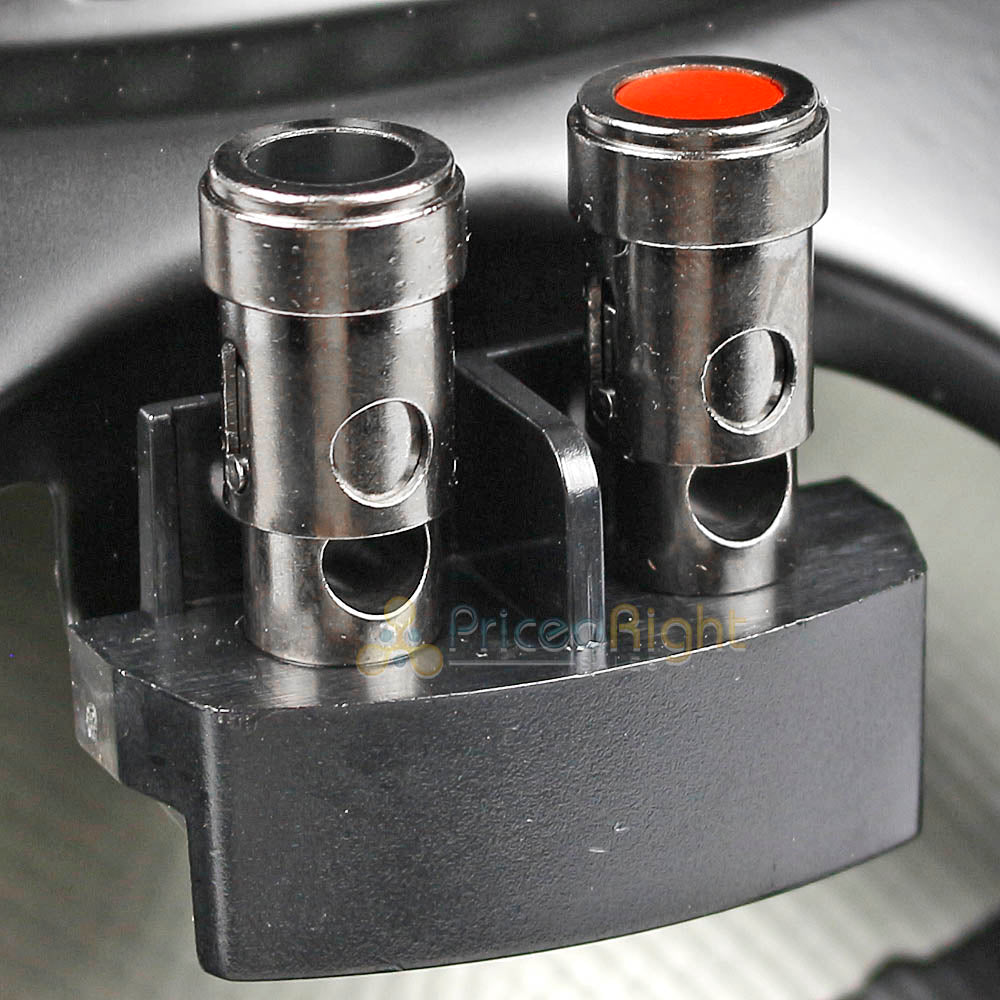

• Oversized black chrome push terminals
• Black spider with woven tinsel leads
• Black PVC wrap around mounting gasket
• Vented pole piece for cooler operation
• Klippel Optimized motor and suspension symmetry
Specifications
• Total Diameter: 10.55"/267.9mm
• Mounting Diameter: 9.12"/231.5mm
• Hole Diameter: 9.88"/251.0mm
• Mounting Diameter: 5.18"/131.5mm
• Magnet Diameter: 5.57"/141.4
Thiele/Small Parameters
• SPL (dB): 84.0
•Re (Ohm): 6.70
• Qms: 6.0
• Qes: 0.68
• Qts: 0.61
• Fs (Hz): 36.0
• Vas (L): 23.6
• Cms (mm/N): .16
• Mms (g): 124
• Sd (M²): 0.0325
• BL (T*M): 16.6
• Xmax (mm): 8.1
• Pwr (W) Nom/Max: 200/400
