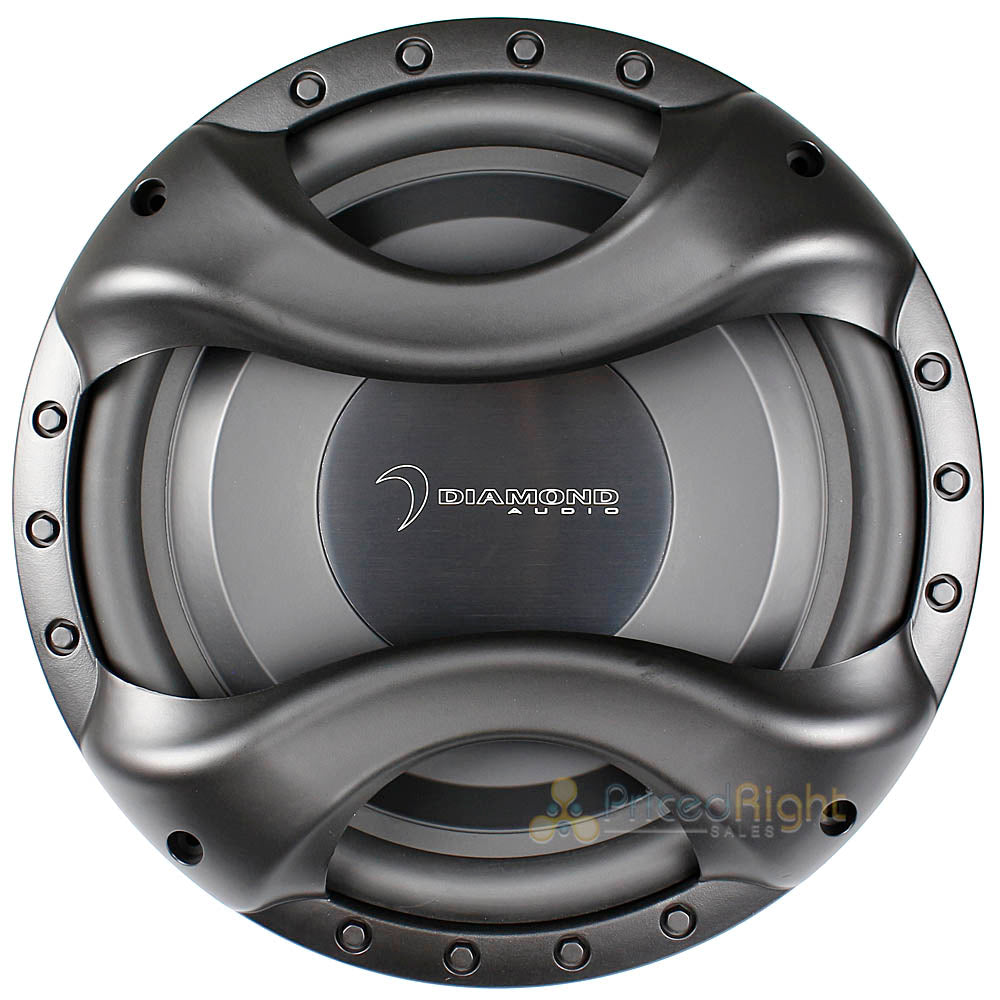

Diamond Audio 12" Shallow Mount Subwoofer Dual 4 Ohm DMD124SH

The Diamond Audio 12" Shallow Mount Dual 4 Ohm subwoofer designed to get you maximum performance when it comes to bass clarity. It has an aluminium heatsink dustcap and high strength paper cone. The klippel optimized motor and suspension symmetry and having a vented pole piece for cooler operation, you will be able to feel the max output of 600 watts max power wherever you go.

Features

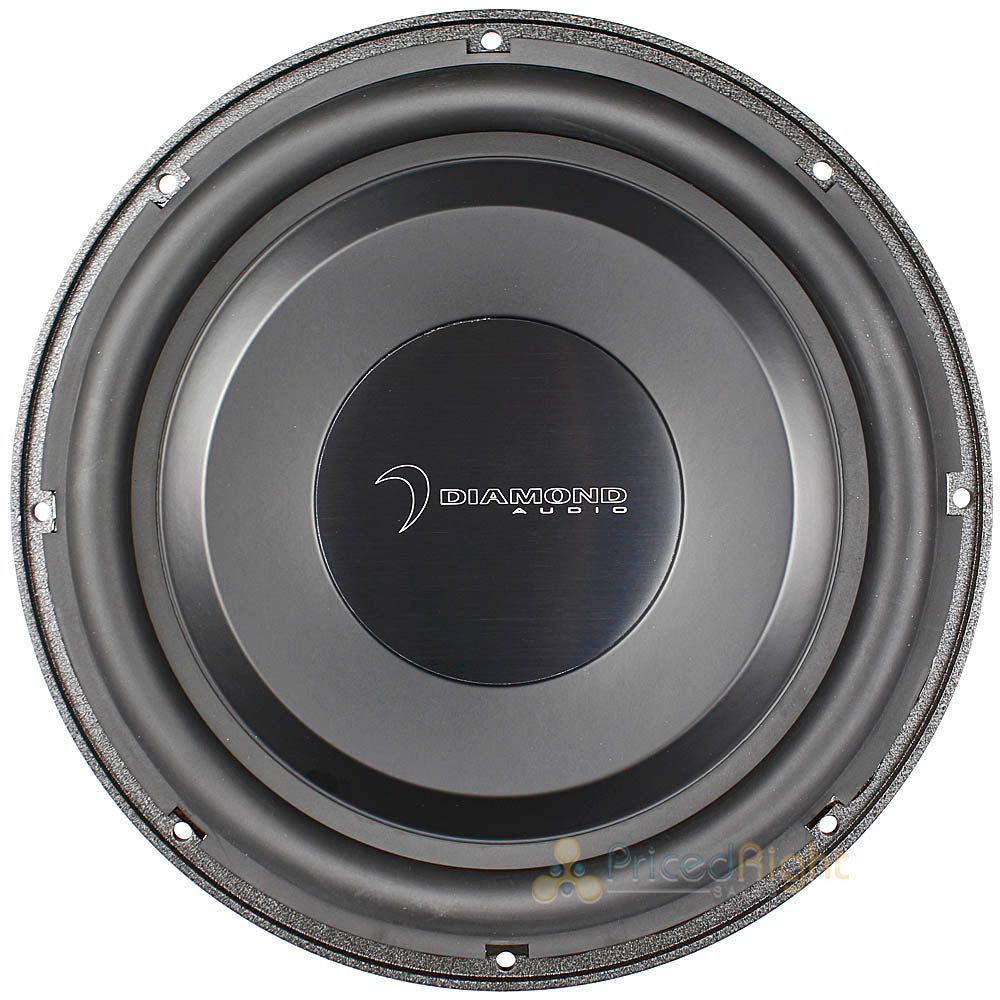

• Aluminium heatsink dustcap and high strength paper cone

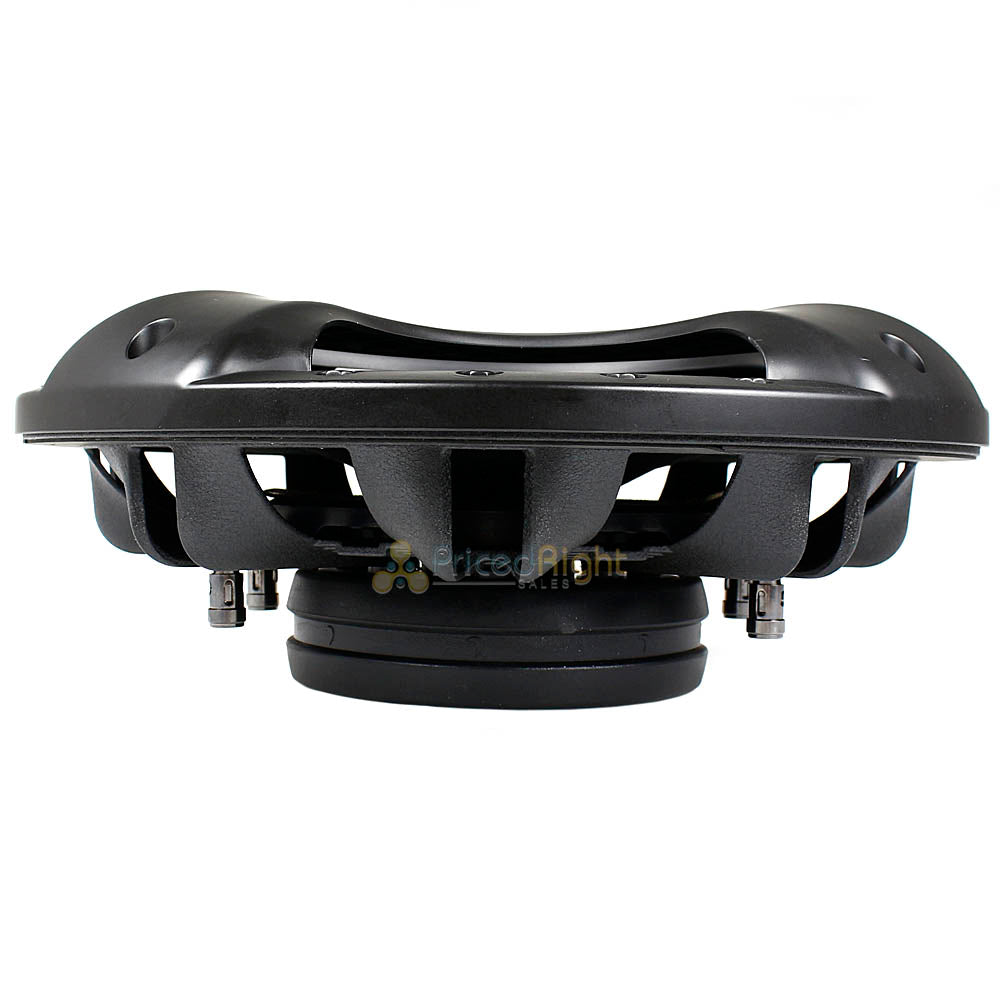

• Die cast shallow frame for slim mount

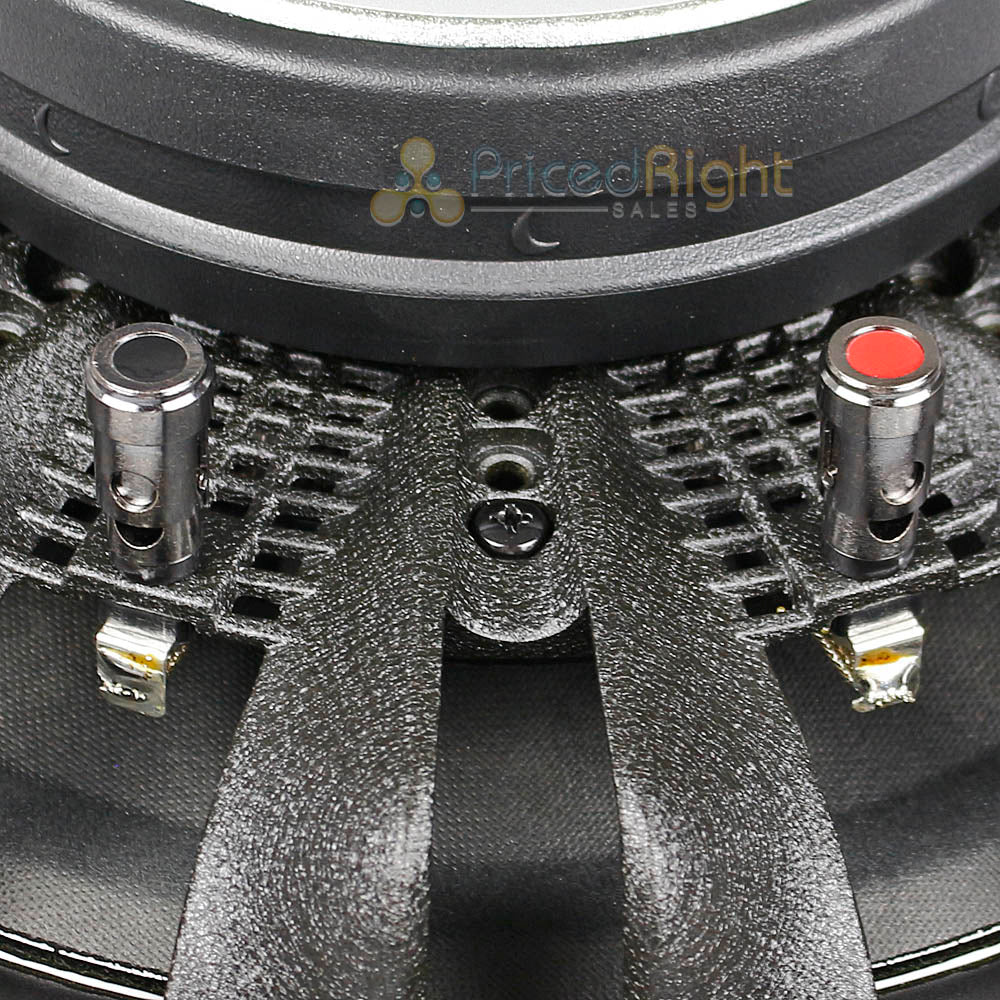

• Oversized push terminals
• Black spider with woven tinsel leads
• Black ABS wrap around mounting gasket

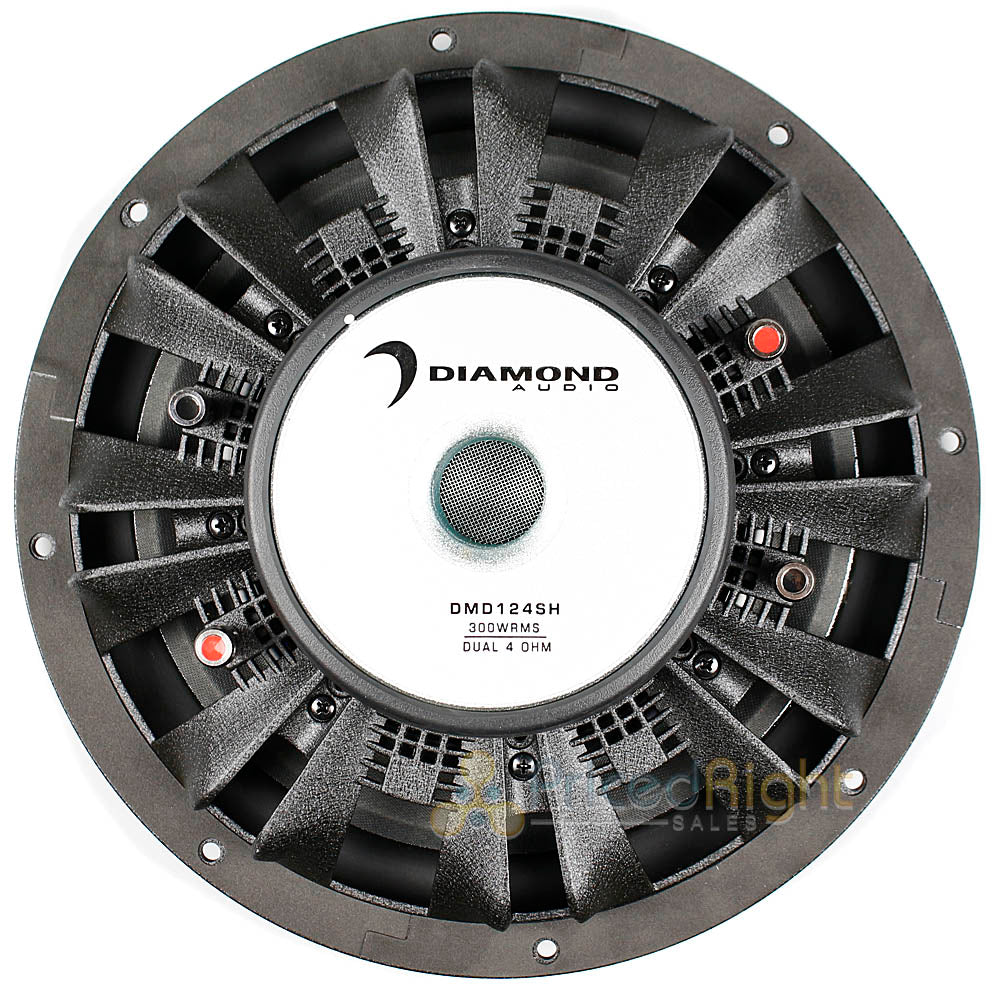

• Vented pole piece for cooler operation
• Klippel Optimized motor and suspension symmetry

Specifications

• Total Diameter: 12.83"
• Mounting Diameter: 11.06"
• Hole Diameter: 11.89"
• Mounting Diameter: 3.00"
• Magnet Diameter: 5.69"
• Dual 4 Ohm

Thiele/Small Parameters

• SPL (dB): 86.8
•Re (Ohm): 6
• Qms: 9.0
• Qes: 1.02
• Qts: 0.91
• Fs (Hz): 46.5
• Vas (L): 31.0
• Cms (mm/N): .075
• Mms (g): 156
• Sd (M²): 0.0539
• BL (T*M): 16.4
• Xmax (mm): 8.8
• Pwr (W) Nom/Max: 300/600
