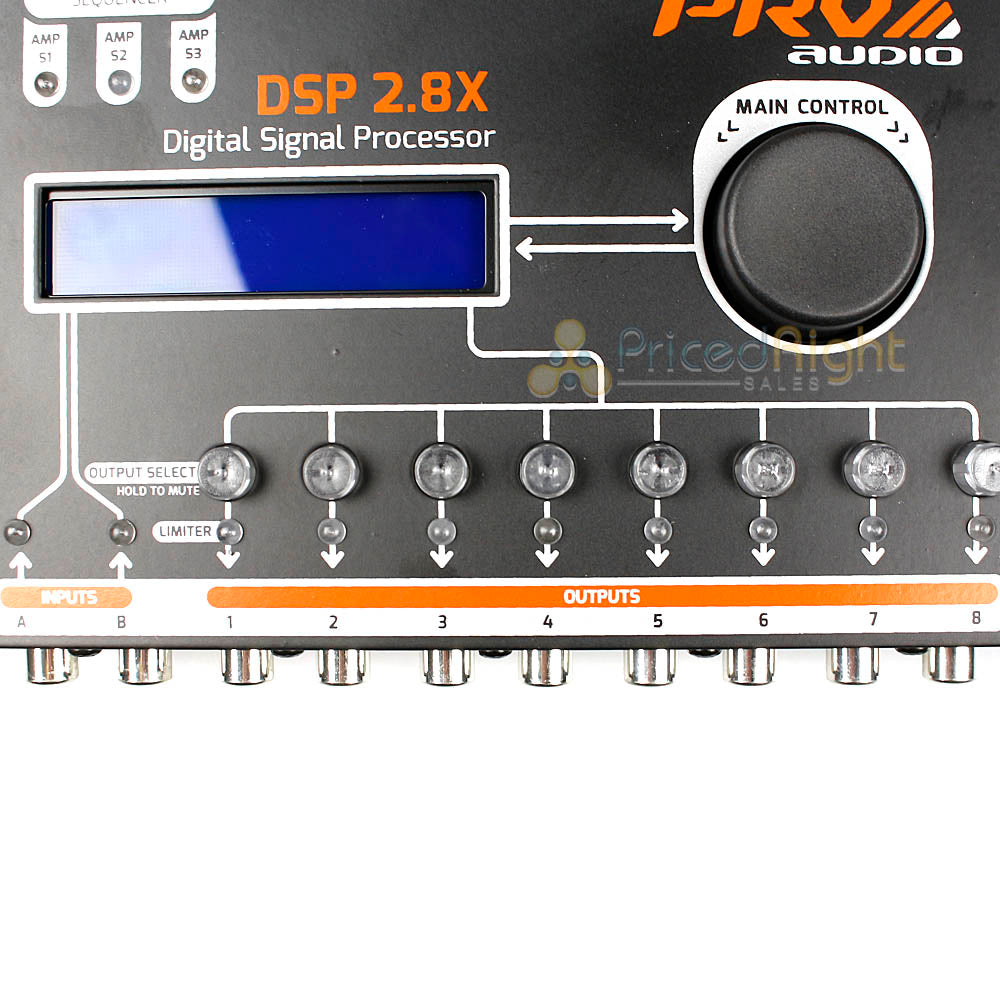

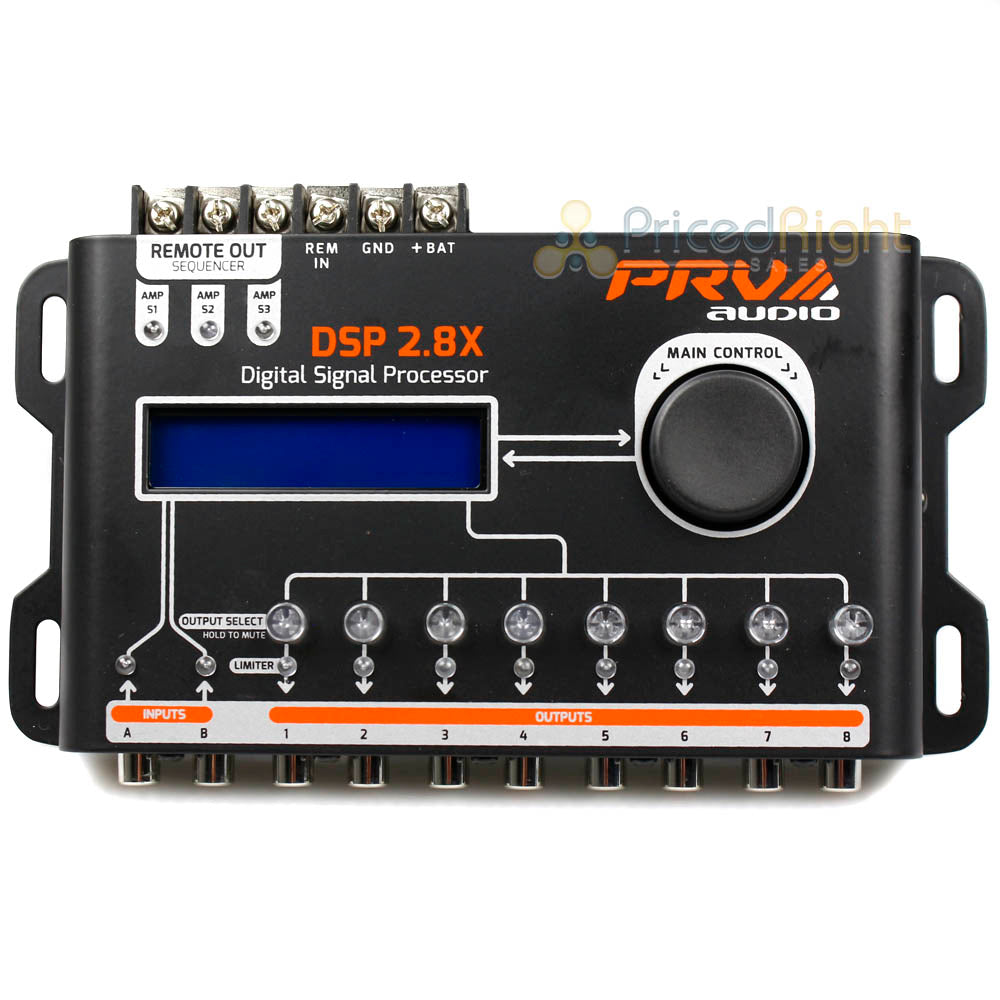

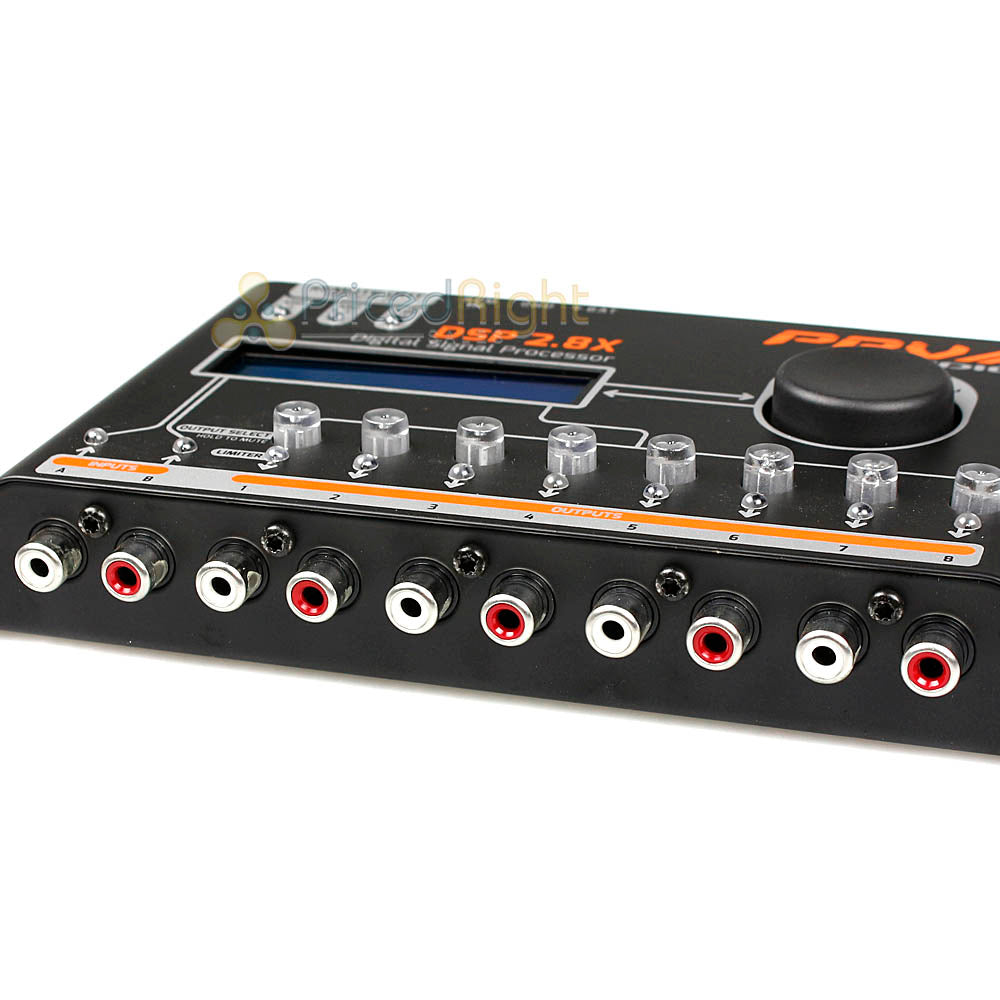

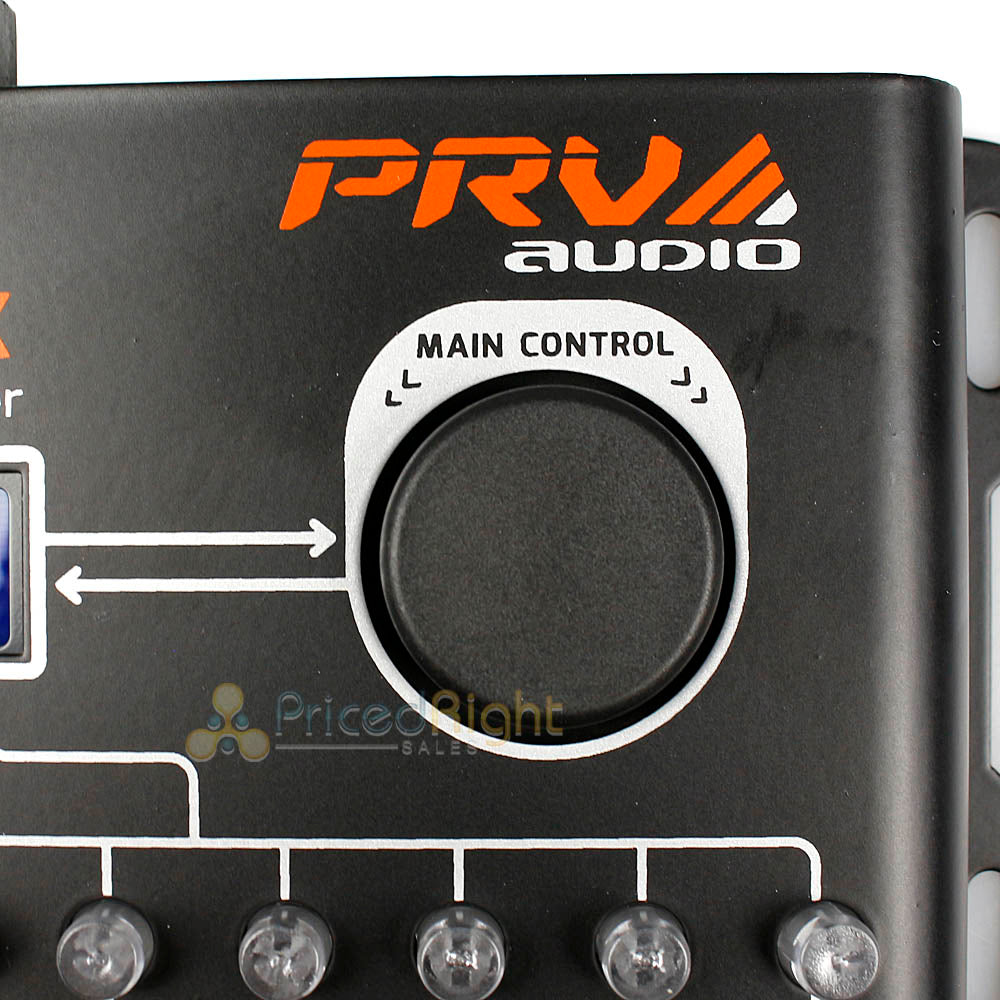

PRV 8 Way Digital Signal Processor DSP 2.8X

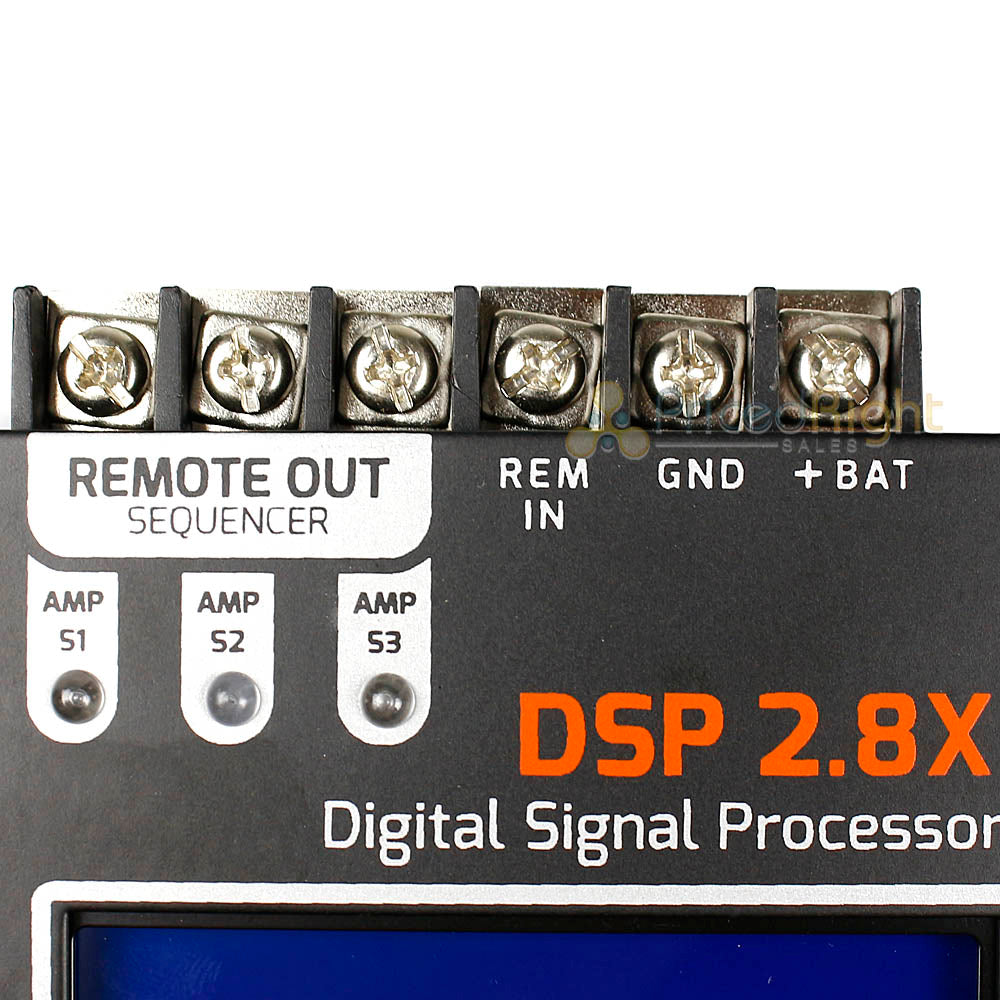

This DSP2.8X Digital Signal Processor is capable of making various adjustments, from filters, graphic and parametric equalization, alignment, phase inversion, limiter, audio generator, among others. Its sequencer feature allows sequential triggering of other products through the remote trigger connection (REM). Use a cable of at least 20 AWG. The sequencer has three outputs (S1, S2, and S3) which are sequentially activated and deactivated according to the input signal from the remote input. For professional equalization adjustments, it has 1 INPUT Parametric Equalizer and 1 OUTPUT Parametric Equalizer with gain control, specific frequency setting, and equalizer bandwidth, allowing fine adjustments and detailed equalization control.

Features

• Number of processors (DSPs): 1
• Input Channels: 2
• Output Channels: 8
• Output Gain: Yes
• Master Level: 0 ~ 100%
• Graphic Equalizer: 15 Band
• Graphic Equalizer Presets: 12
• Parametric Equalizer Input: 1
• Parametric Equalizer Output: 8 / 1 per Channel
• Routing: A,B / A+B
• Crossover Butterworth (dB/8ª): 12/18/24/36/48
• Crossover Linkwitz-Riley (dB/8ª): 12/18/24/36/48
• Limiter: Yes
• Automatic Attack/Release: Yes
• Delay: 0 to 8 ms (275 cm)
• Frequency Generator: 10Hz – 22kHz, Level -60 at 0dB
• Frequency Scan: 10Hz – 22kHz / Level -60 at 0dB / Control of speed
• Display: LCD16x2 Characters
• Screen Saver: Text
• Security Password: Yes
• Frequency Response(+/-3dB): 10Hz @ 22.5kHz @ -1dB
• Latency: 1.08ms
• Signal to Noise: >90dB
• THD: <0,01%
• Channel Separation: > 80 dB
• Maximum Input Voltage: 5,6 Vpp (+8,2 dBu)
• Maximum Output Voltage: 5,6 Vpp (+8,2 dBu)
• Supply Voltage: 10V to 15V DC
• Dimensions (HxWxL): 1.45″ x 7.87″ x 3.97″
