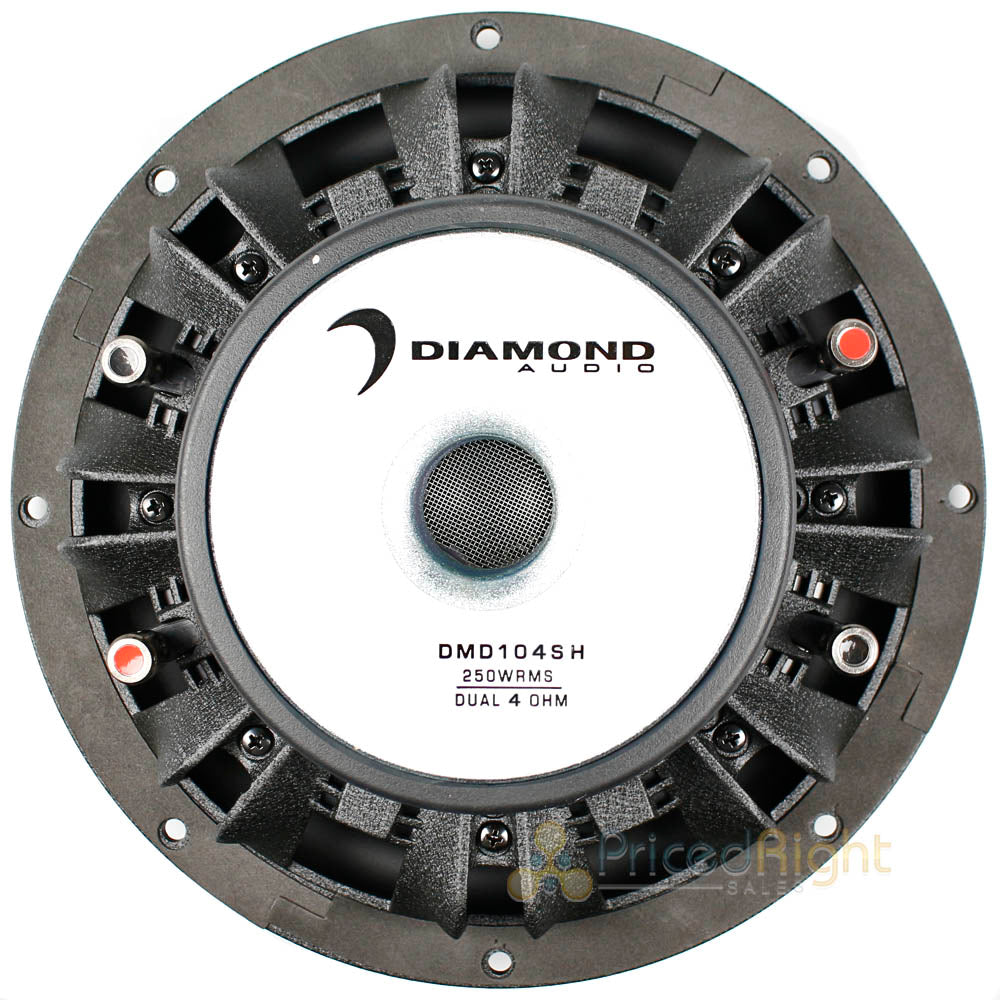

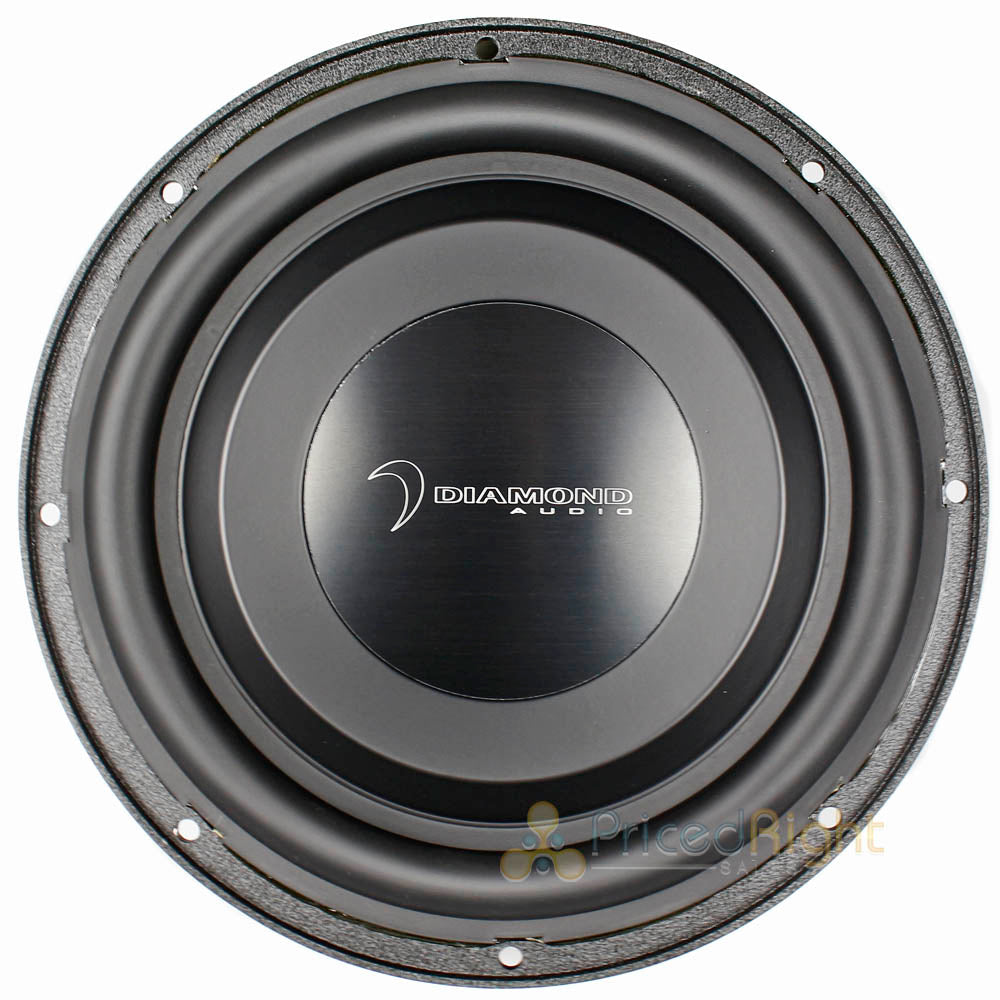

Diamond Audio 10" Shallow Mount Subwoofer 500 Watts Max Dual 4 Ohm DMD104SH
Click to enlarge

Diamond Audio 10" Shallow Mount Subwoofer 500 Watts Max Dual 4 Ohm DMD104SH Diamond Audio 10" Shallow Mount Subwoofer 500 Watts Max Dual 4 Ohm DMD104SH

$199.99 $209.99

Vendor: Diamond Audio

SKU: DMD104SH

UPC Code: 847169035081

Categories: Electronics, Featured Electronics, Subwoofers,

Tags: 10" Subwoofers, Dual 4 Ohm, Up to 300 Watts, Up to 500 Watts,

Diamond Audio 10" Shallow Mount Subwoofer Dual 4 Ohm DMD104SH

The Diamond Audio 10" Shallow Mount Dual 4 Ohm subwoofer designed to get you maximum performance when it comes to bass clarity. It has an aluminium heatsink dustcap and high strength paper cone. The klippel optimized motor and suspension symmetry and having a vented pole piece for cooler operation, you will be able to feel the max output of 500 watts max power wherever you go.

Features

• Aluminium heatsink dustcap and high strength paper cone

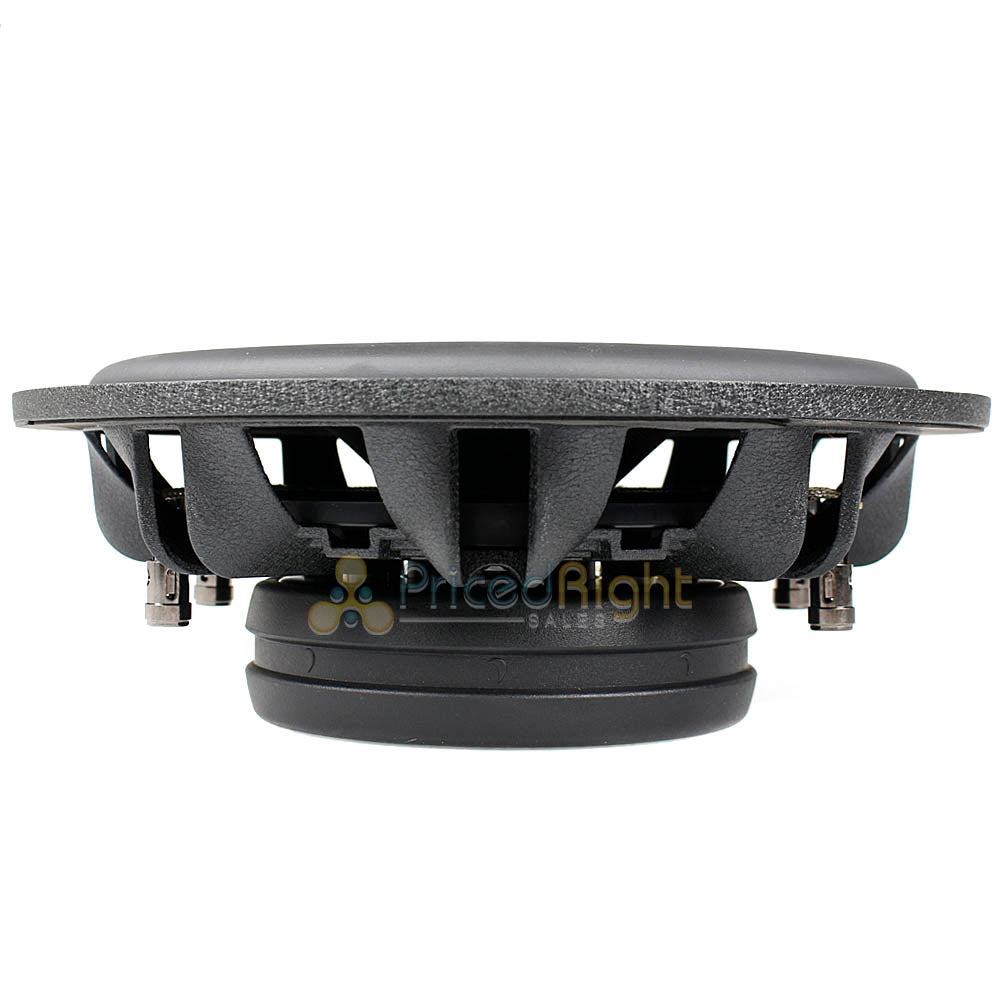

• Die cast shallow frame for slim mount

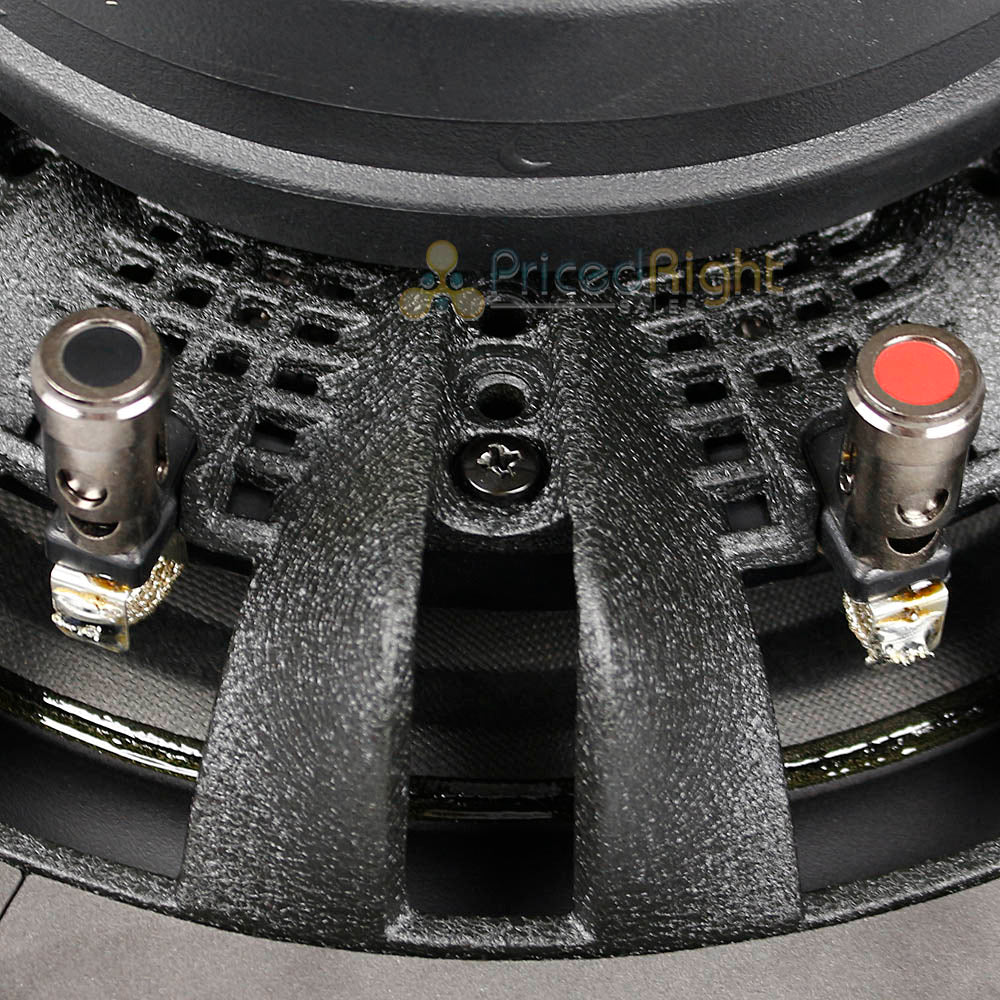

• Oversized push terminals
• Black spider with woven tinsel leads
• Black ABS wrap around mounting gasket
• Vented pole piece for cooler operation
• Klippel Optimized motor and suspension symmetry

Specifications

• Total Diameter: 10.87"
• Mounting Diameter: 9.13"
• Hole Diameter: 10.00"
• Mounting Depth: 3.00"
• Magnet Diameter: 5.69"
• Dual 4 Ohm

Thiele/Small Parameters

• SPL (dB): 85.2
•Re (Ohm): 6.0
• Qms: 8.0
• Qes: .85
• Qts: 0.77
• Fs (Hz): 48.5
• Vas (L): 15.8
• Cms (mm/N): .086
• Mms (g): 125.0
• Sd (M²): 0.0359
• BL (T*M): 16.4
• Xmax (mm): 8.8
• Pwr (W) Nom/Max: 250/500
