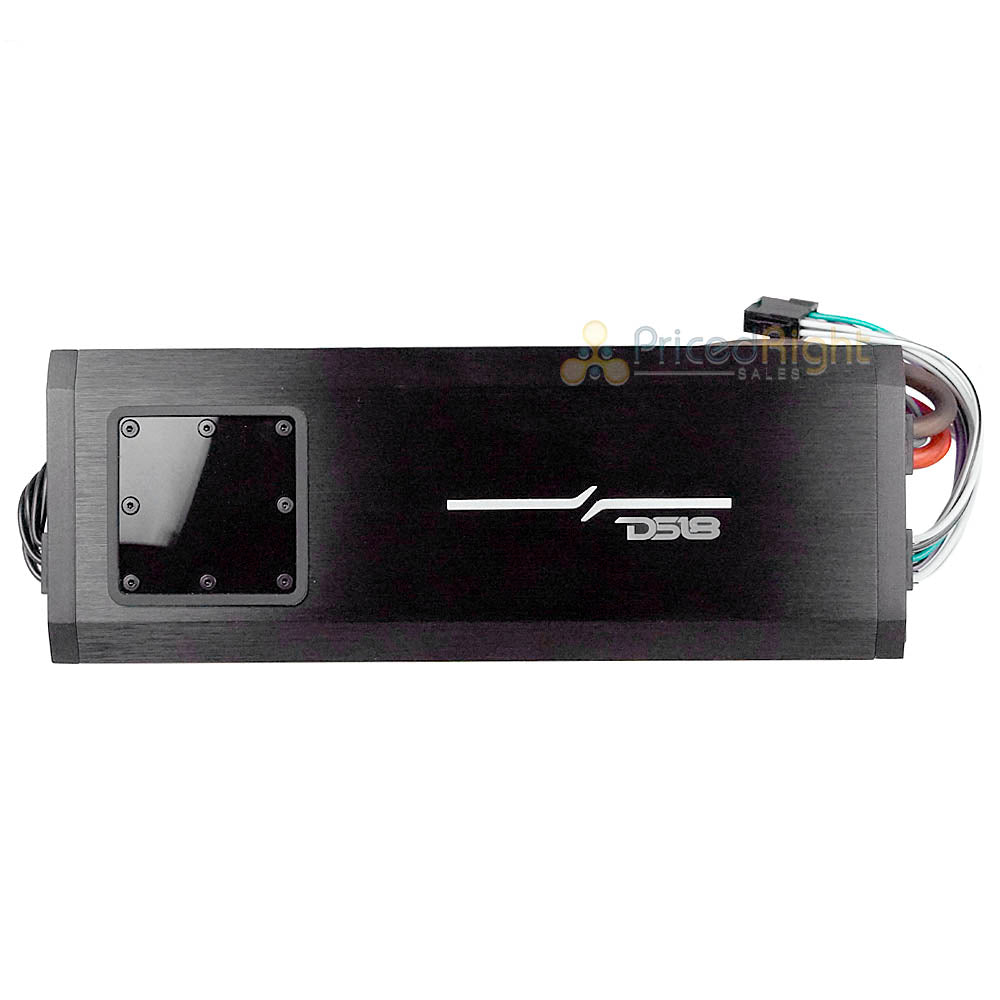

DS18 5 Channel Marine Amplifier 2800 Watts Max 4 Ohm NXL Series NXL-X1200.5D
Click to enlarge

DS18 5 Channel Marine Amplifier 2800 Watts Max 4 Ohm NXL Series NXL-X1200.5D DS18 5 Channel Marine Amplifier 2800 Watts Max 4 Ohm NXL Series NXL-X1200.5D

$539.96 $649.95

Vendor: DS18

SKU: NXL-X1200.5D

UPC Code: 810097260979

Categories: Amplifiers, Brands, DS18, Electronics,

Tags: 1101-2500 Watts, 2 Ohm, 5 Channel Amplifiers, 501-1000 Watts, D,

DS18 5 Channel Marine Amplifier 4 Ohm NXL-X1200.5D

The DS18 NXL Series was developed for people who want a very small audio footprint that is capable of putting out lots of power and sound in a small and waterproof package. The NXL Series of amps are one of their most efficient lines with great power output all while withstanding the elements. These amps come in 1 channel, 4 channel, and 5 channel to help you power a wide array of speaker setups. Being full-range amps, they also can be run on subwoofers, mid-ranges, and tweeters. The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to the maximum for the ultimate audio experience. All units have stable and reliable 4-layer PCB layouts, IPX7 waterproof rating for power sports an ultra-compact size for easy installation, and audio precision quality control verification.

Features

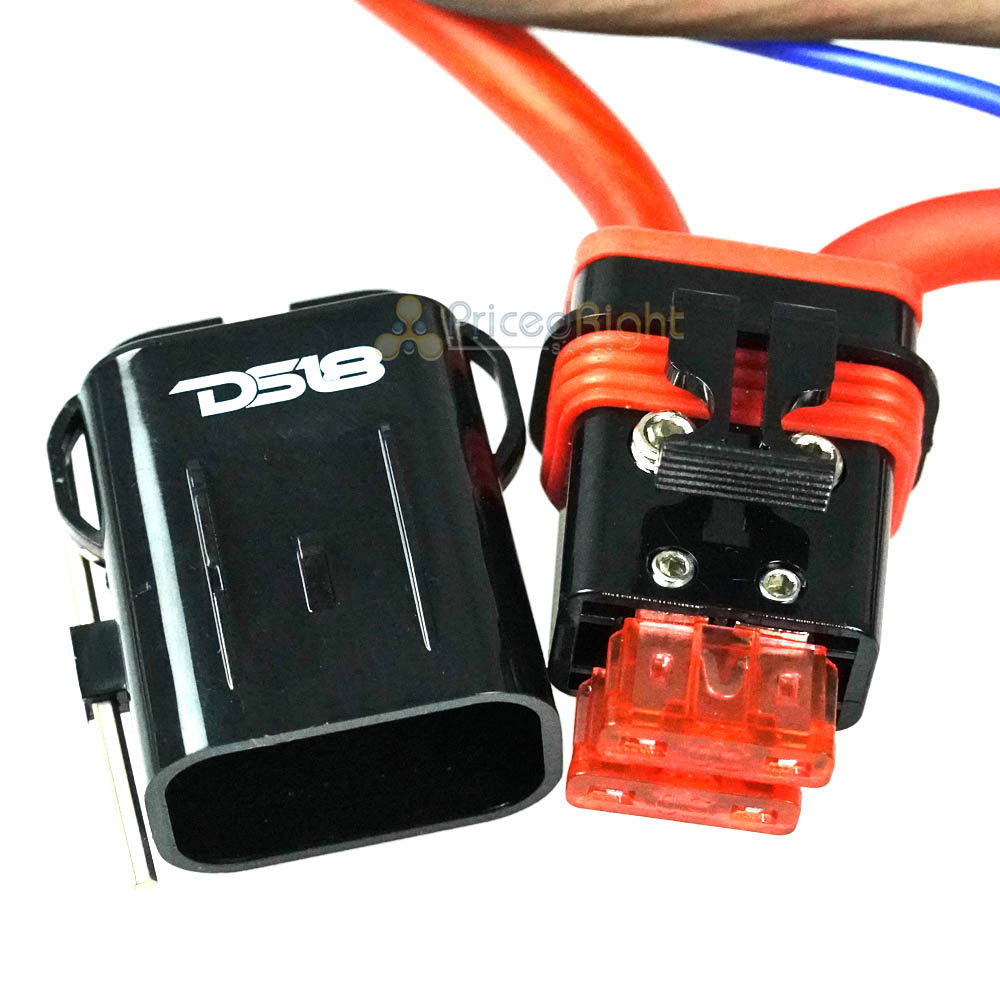

• The included marine-grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
• 2 channel or 4 channel input selector
• IPX7 Waterproof Rating
• UV, Salt and Fog Protection

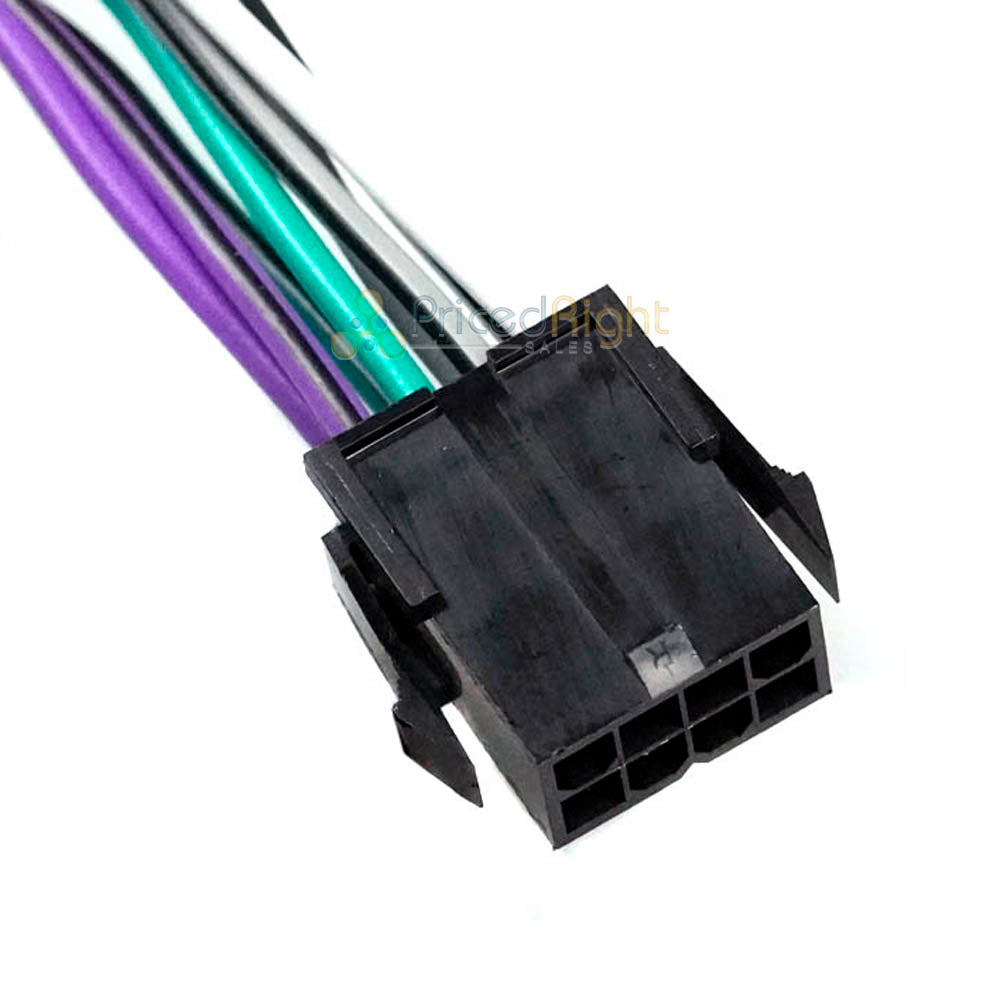

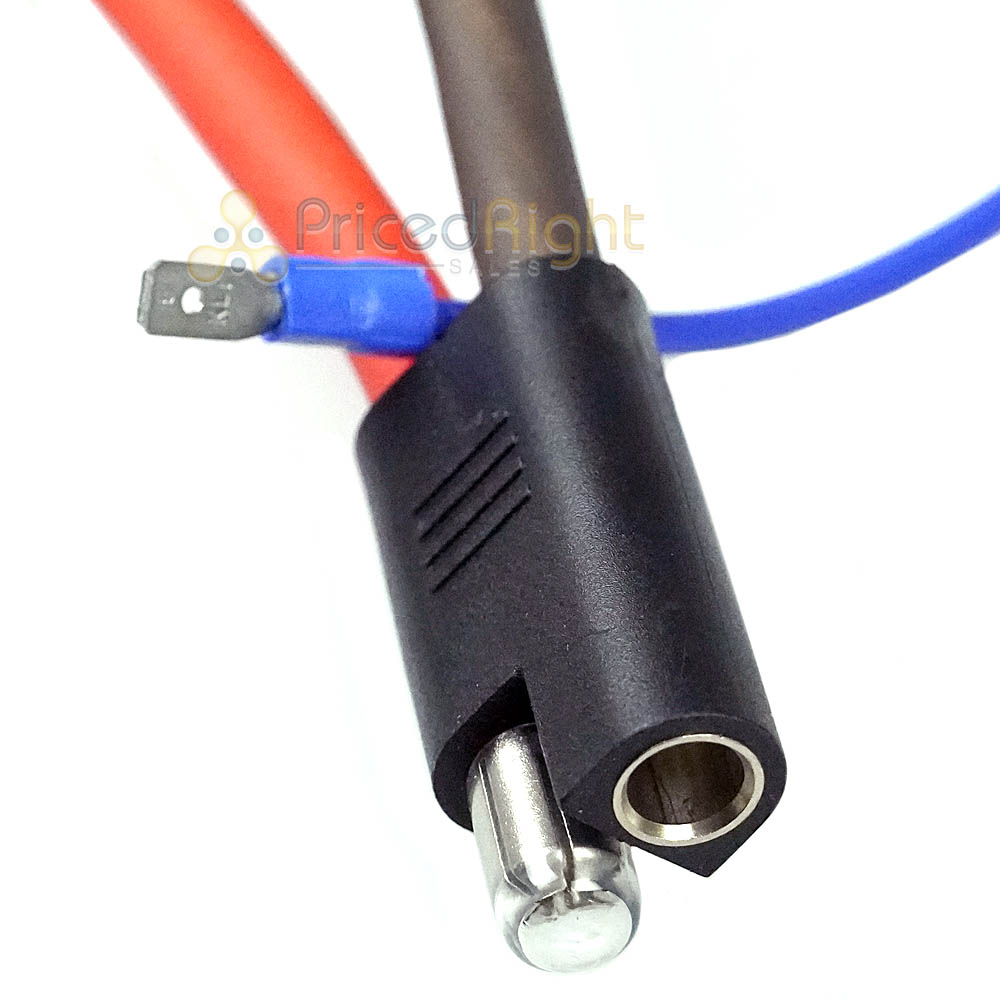

• Direct Power Harness Design with Marine Grade OFC Tinned Wires
• Latest Digital Amplifier Design With SMC Technology
• Total Watts (Peak) 2800W
• RMS Power @ 4 ohm 4 x 150W + 350W (SUB)
• RMS Power @ 2 ohm 4 x 200W + 600W (SUB)
• RMS Power @ 1 ohm -
• RMS Power @ 4 ohm Bridge 2 x 400W
• Frequency Response 10Hz-20KHz
• Signal to Noise Ratio 1W@4Ω > 85dB
• Efficiency @ 4ohm 0.85
• Input Impedance 20KΩ
• Channel Separation 60dB
• Total Harmonic Distortion (THD) < 0.05%
• Low Level Input Range 200mV-5V
• Selectable X-Over Yes (HPF/Full/LPF) / LPF Fixed (SUB)
• X-Over Filter Range 40Hz-2KHz / 50Hz-250Hz (SUB)
• Bass Boost Range 0-18dB (SUB)
• Bass Boost Frequency 42Hz (SUB)
• Infrasonic Filter 10Hz-55Hz (SUB)
• Phase Selector No
• Amplifier Class Digital
• Amplifier Type Stereo Full Range + Subwoofer
• Number of Channels 5
• Minimum Impedance 2 Ohms (Stereo) / 4 Ohm (Bridge) / 2 Ohm (SUB)
• Led Indicators Power / Protection / Clip
• Power Input Size 4GA Tinned OFC
• Fuse Size 2 x 50A (100A)
• Thermal Protection Yes (75°C)
• Over-Load Protection Yes
• Short Circuit Output Protection Yes
• Voltage Input Protection Yes (7-16V)
• Body Color / Finish Black Brushed Aluminum
• Overall Length 12.67" / 322mm
• Overall Wide 4.4" / 112mm
• Overall Height 1.77" / 45mm
• Heatsink Length 11.87" / 301.7mm
