DS18 6.5" 2 Way Component Speaker System 240 Watts 4 Ohm ELITE Series ZXI-62C
Click to enlarge

DS18 6.5" 2 Way Component Speaker System 240 Watts 4 Ohm ELITE Series ZXI-62C DS18 6.5" 2 Way Component Speaker System 240 Watts 4 Ohm ELITE Series ZXI-62C

$139.95 $149.95

Vendor: DS18

SKU: ZXI-62C

UPC Code: 810005187893

Categories: Brands, DS18, Electronics, Speakers,

Tags: 4 Ohm, 6.5-6.75", Component Speakers,

DS18 6.5" 2 Way Component Speaker System 4 Ohm Elite Series ZXI-62C

This component set by DS18 includes a one-way 6.5" that takes 80w RMS and 240 Max watts. It has a 88 dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. Also included is a 30w RMS tweeter that can either be mounted on the grill assembly, or in another location of your choosing. The included DS18 passive crossover will get your frequency just right for the best sound available.

Features

Highly durable and extremely loud design built for the average to extreme audio systems.
Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
The component design will bring a full range of frequencies to your ears and with great sound quality.
• Nominal Diameter 6.5” / 165mm
• Nominal Impedance 4 Ohms
• RMS Power Handing 80W
• MAX Power Handing 240W
• Sensitivity (1w/1m) 88dB
• Frequency Response 40Hz - 20KHz
• Recommended HI Pass Crossover 60Hz
• Speaker Type 2-Way

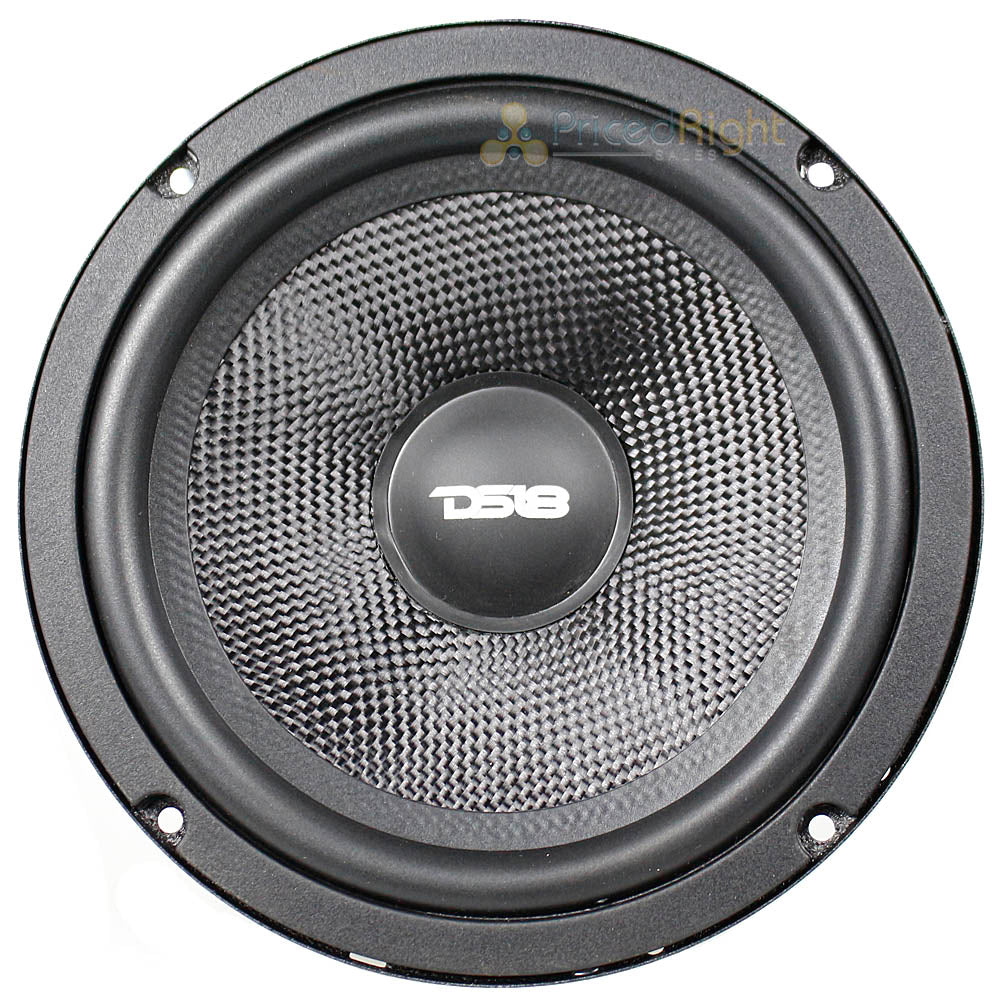

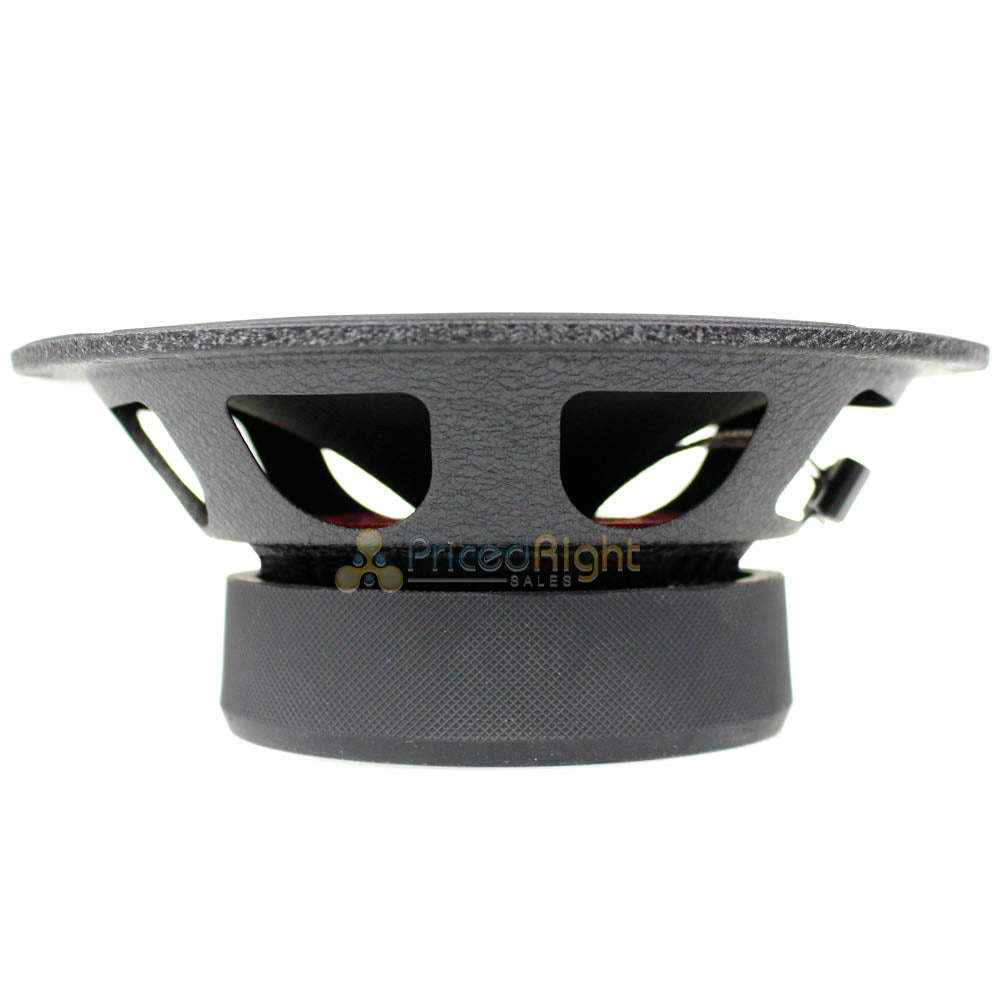

Woofer Specifications

• Voice Coil Diameter 1” / 25.5mm
• Voice Coil Former Material KSV
• Winding Material EISV
• Cone Material Glass fiber
• Surround Material Rubber
• Basket Material Steel
• Magnet Material Barium Ferrite
• Magnet Weight 14.4 oz / 410g

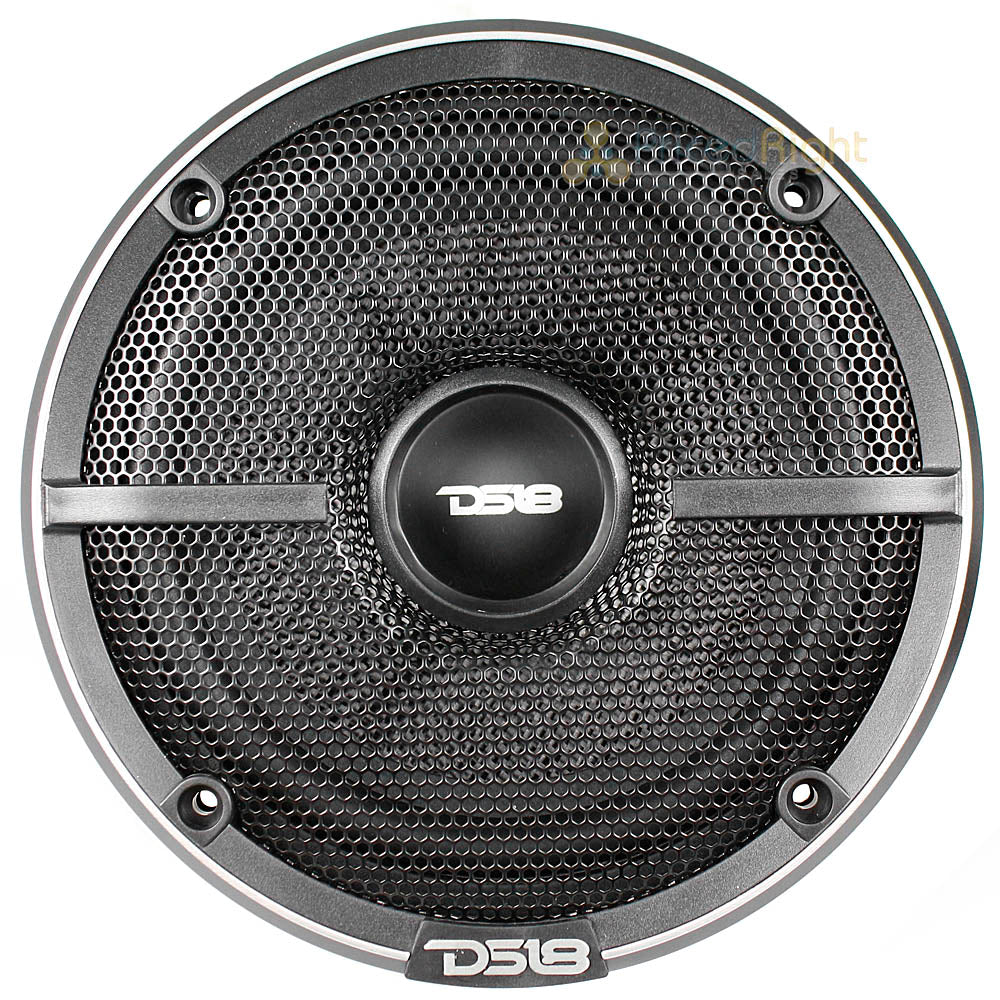

• Grill Included Yes
• Pair Yes

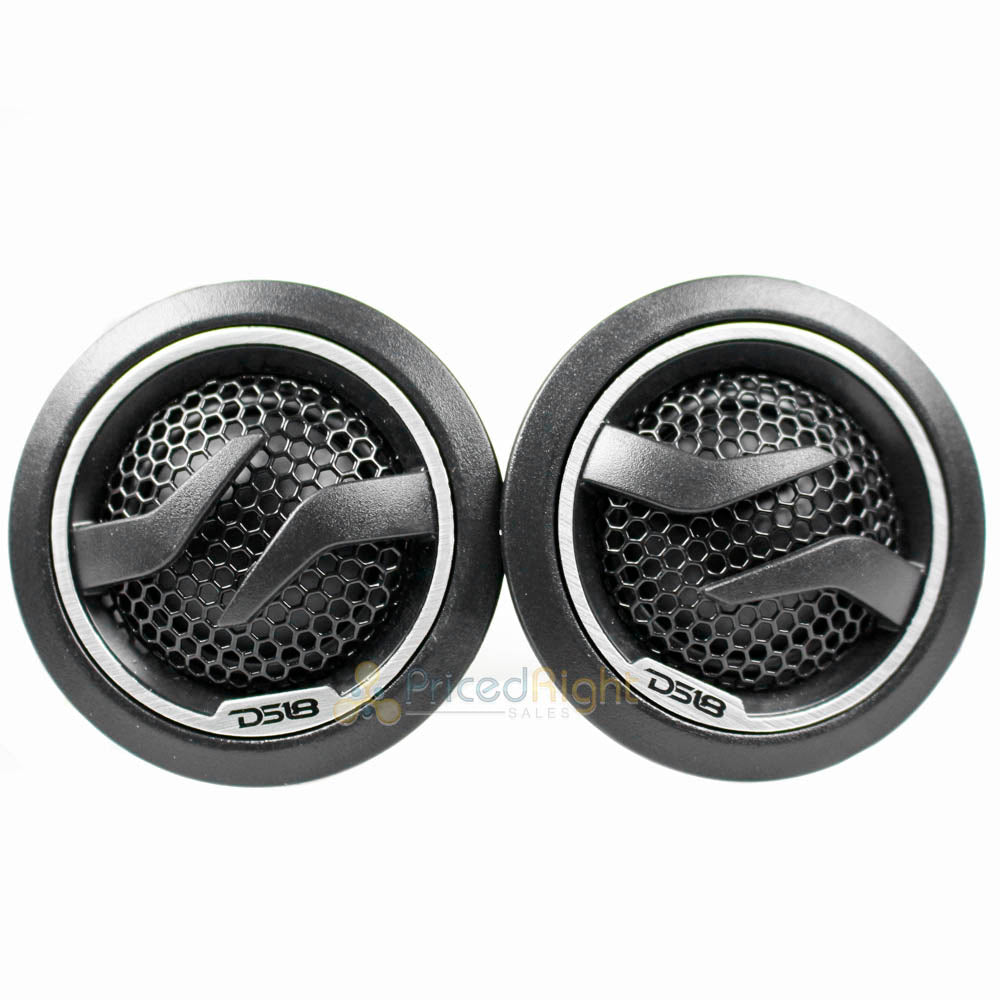

Tweeter Specifications

• Nominal Diameter 1.25" (31.7mm)
• Voice Coil Diameter 1"(25.5mm)
• Voice Coil Former Material ASV
• Winding Material EISVM
• Diaphragm Material SILK
• Magnet Material Neodymium
• Magnet Weight 0.46 oz / 13g
• Pair Yes

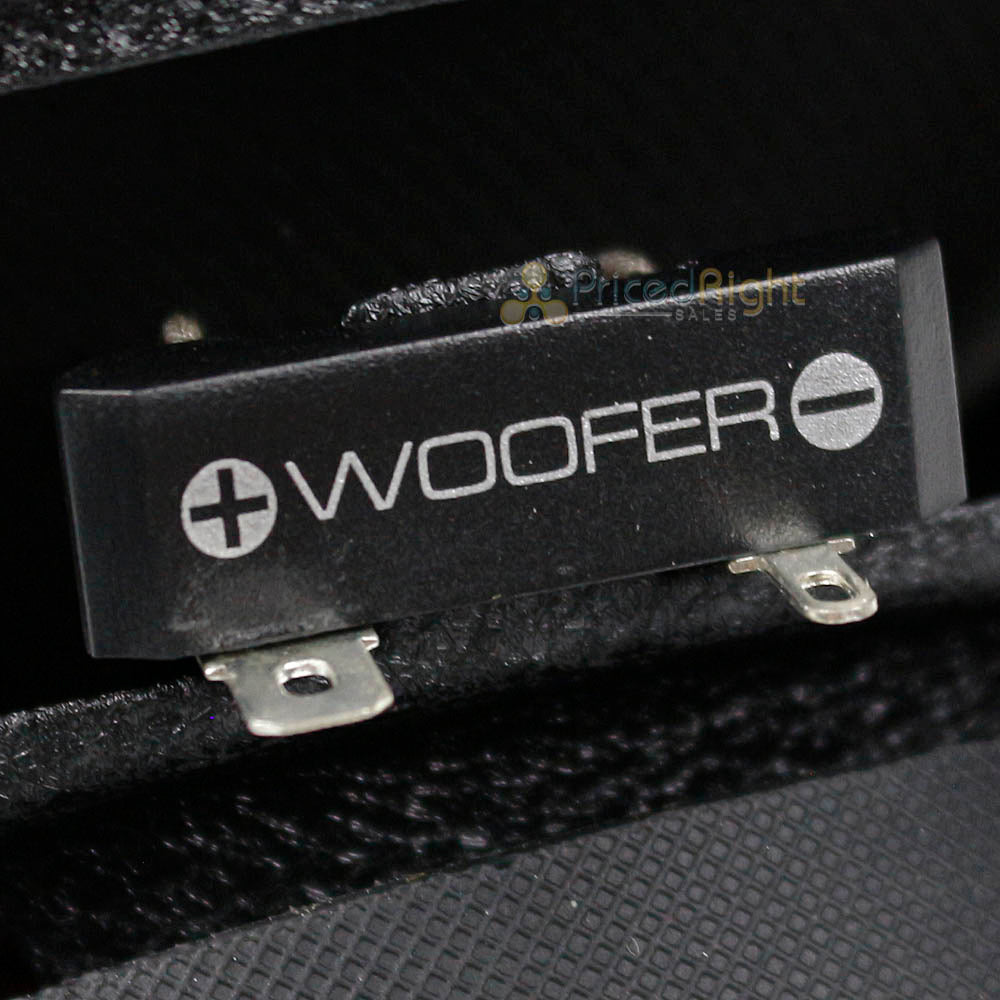

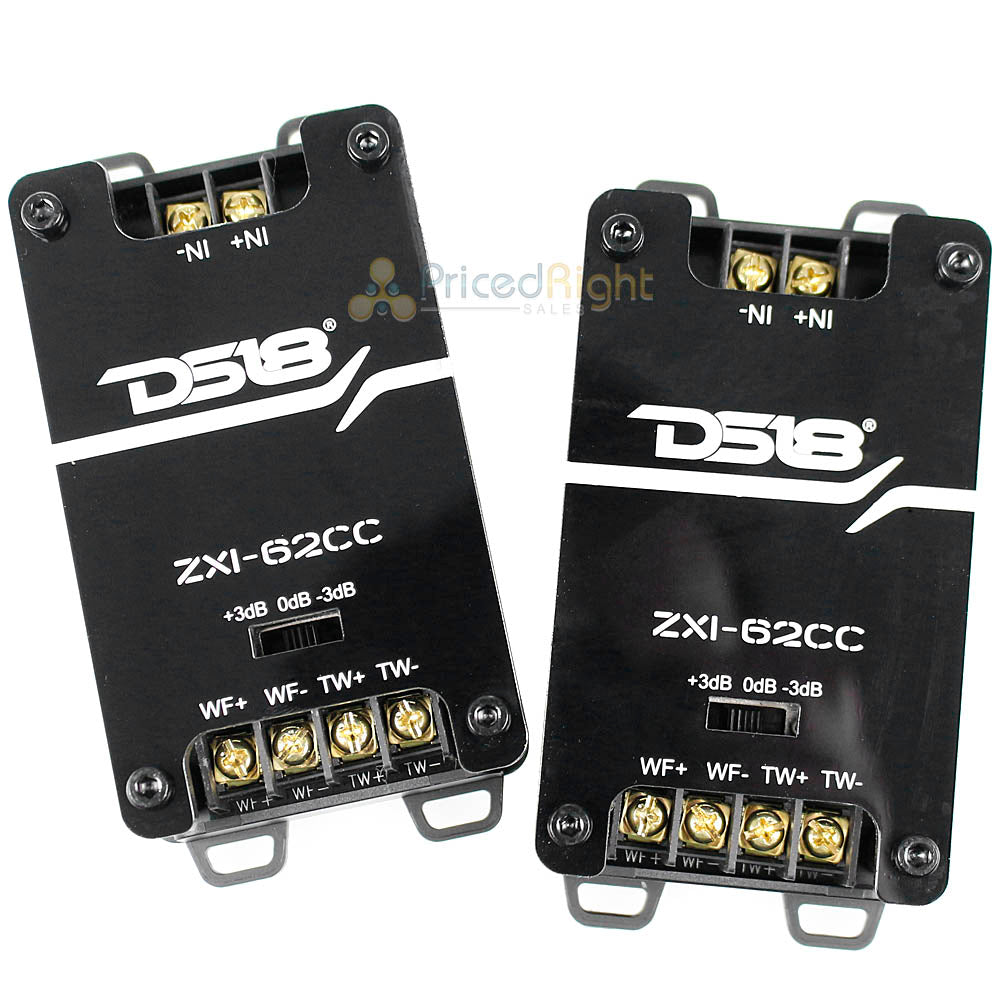

Crossover Specifications & Features

• Passive Crossover Ways 2 Ways
• Frequency Crossover point 3.5Khz
• Cut-Off Slope 12 dB/Oct
• Tweeter Attenuation (+/- 3dB)
• Capacitor Type NP
• Coil Type KSV
• Terminal Type Screw-On
• Housing Material ABS / Acrylic
• Adjustments Tw Attenuation
• Extra Features Pt Tw protection
• Pair Yes

Thiele & Small Parameters

• Equivalent Volume 10.36L
• Excursion (one way) 2.7mm
• Free Air Resonance 64Hz
• Mechanical Factor 9.5
• Electrical Factor 0.85
• Total Factor 0.78
