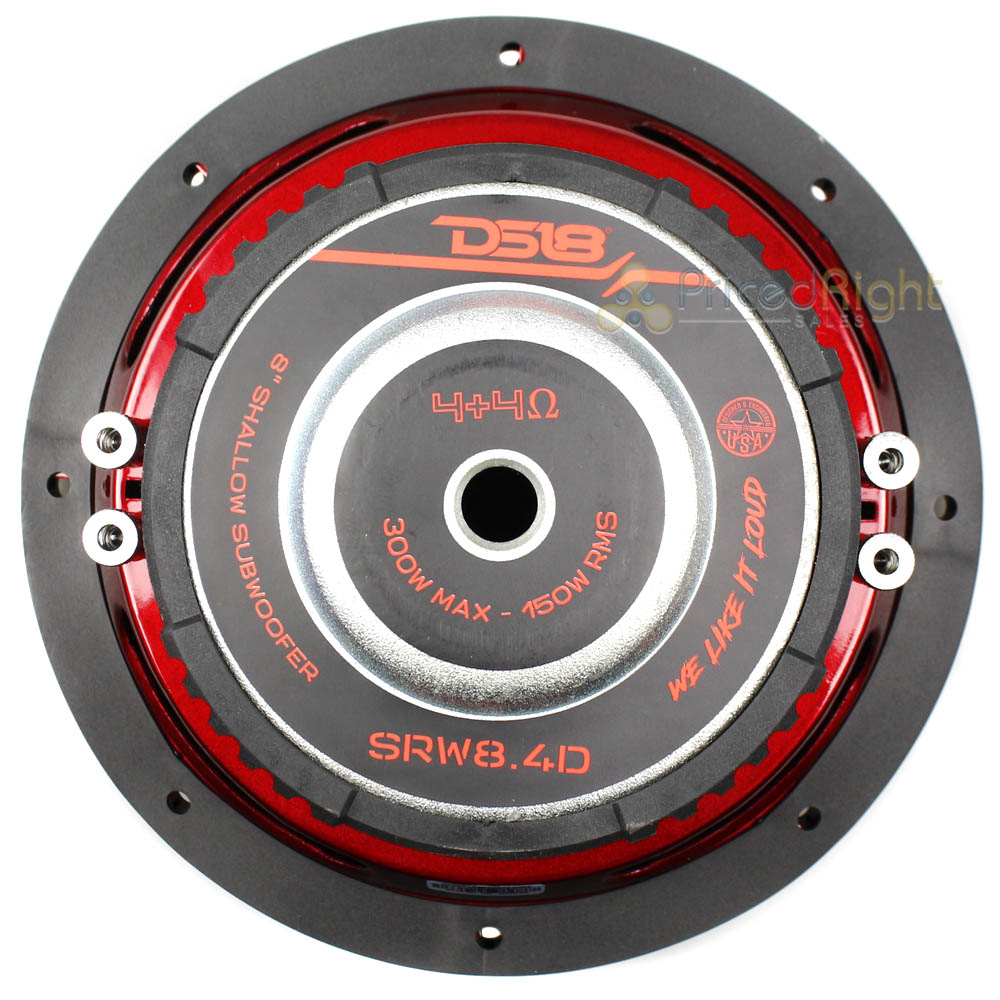

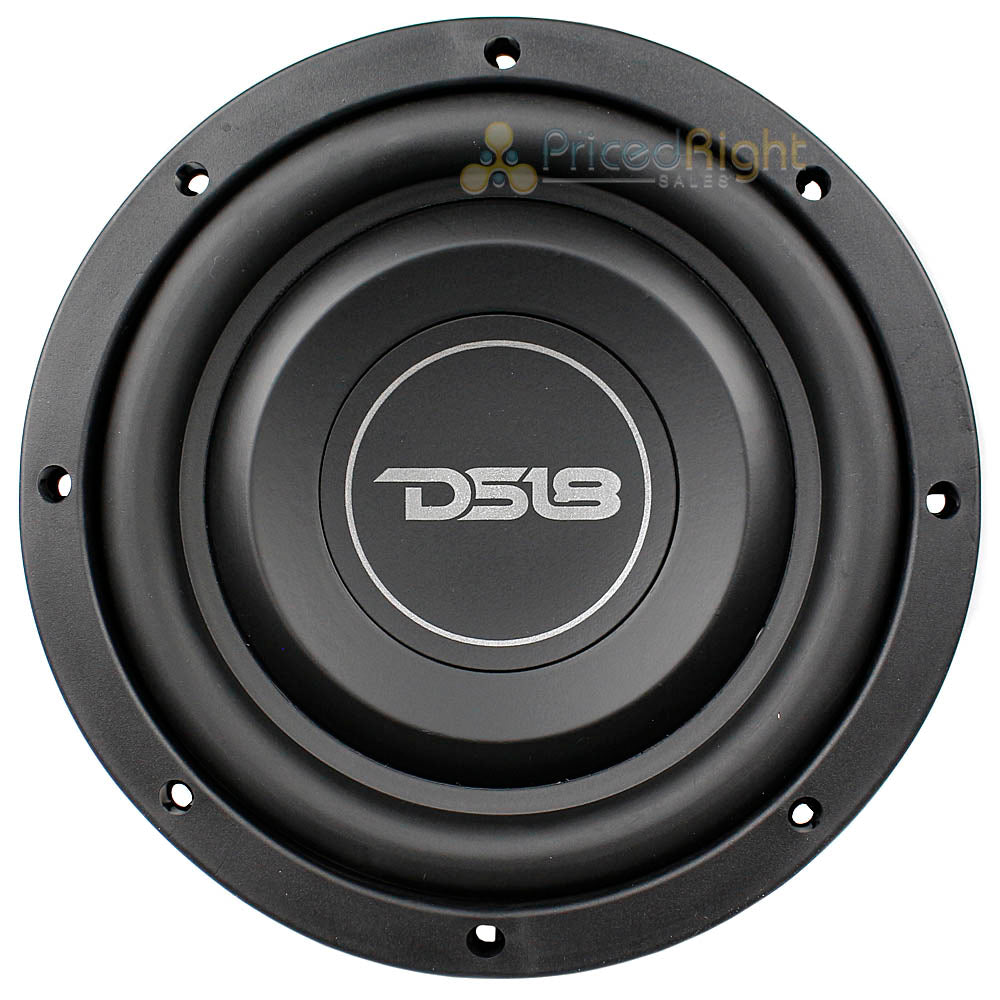

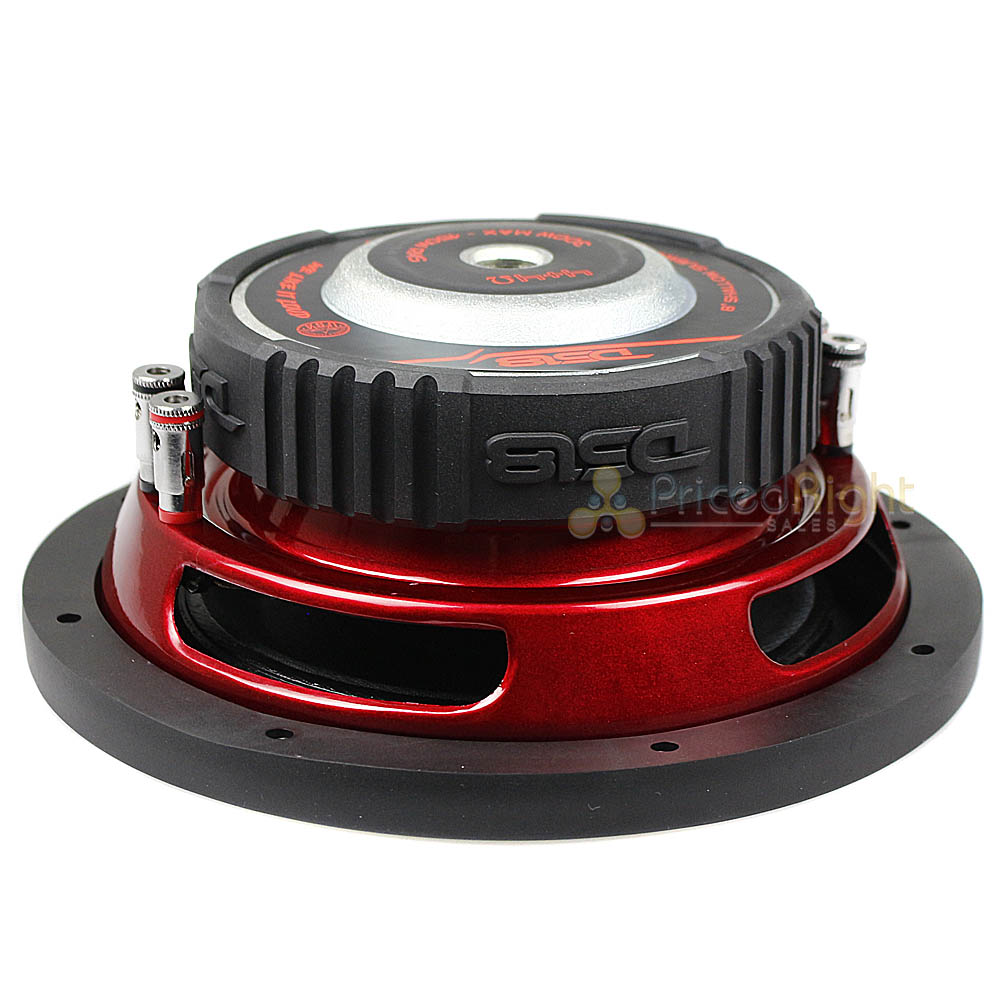

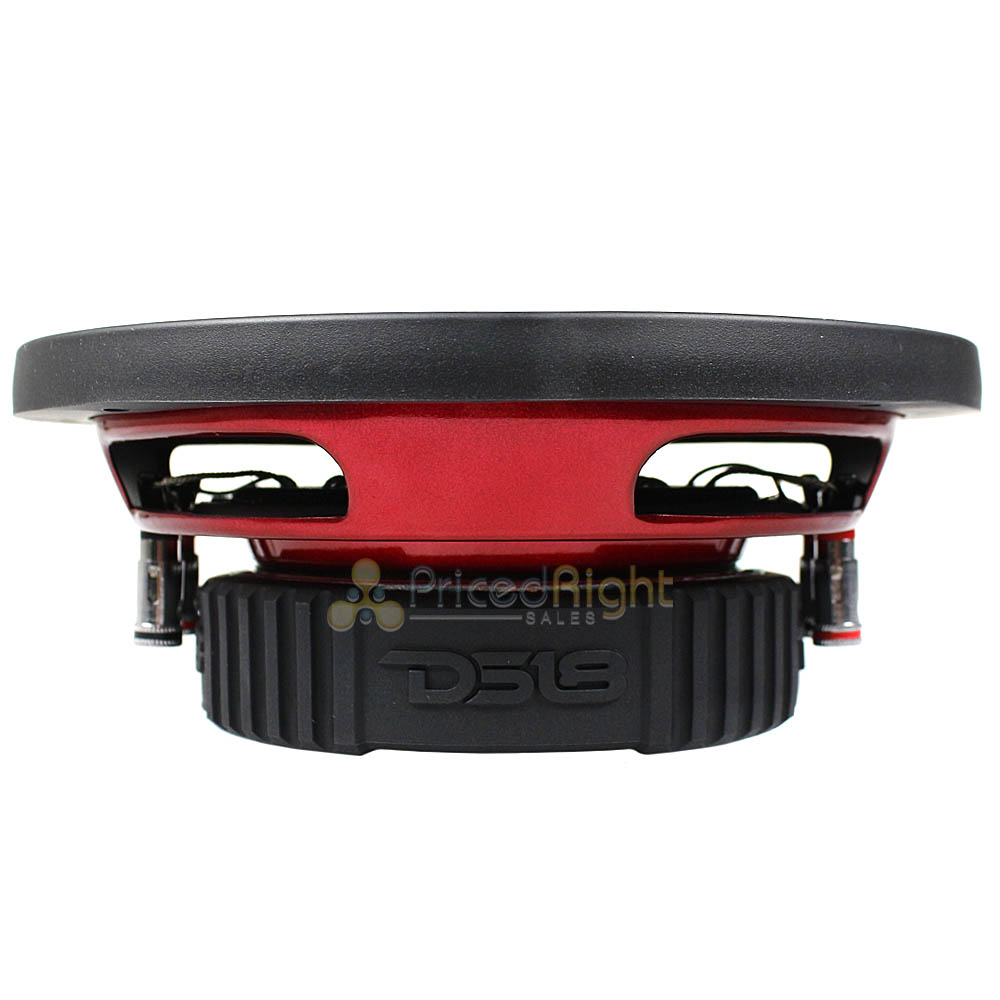

DS18 8" Shallow Subwoofer 4 Ohm SRW8.4D

It's easy to get great bass when there's very little room with our new line of slim mount subwoofers. The SRW 8.4D (DVC) and SRW 8.4 (SVC) mounts in little as 3.07 inches mounting depth and can be utilized in both ported and sealed boxes for great bass in a tight area. This sub handles 150 watts RMS and 300 watts peak power with a 87db sensitivity which is very high for a slim mount sub raising this model high above the bar. This sub comes in both dual voice coil 4 ohm (SRW 8.4D) and single voice coil 4 ohm (SRW 8.4) so you can wire appropriately to your amp for maximum power to bring all your music to life!

Features

• SRW bass series was made to produce great bass within a flat sub frame exceeding most other subs volume while also coming in at an amazing price point.
• Large surround with flexible spider packs will help the CCA voice coil teach maximum xmax producing full and deep bass with a up to spec box.
• Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.
• Nominal Diameter 8"
• Nominal Impedance 4 + 4 ohms
• RMS Power Handling 150 Watts
• Maximum Power Handling 300 Watts
• Sensitivity (1w/1m) 86dB
• Frequency Response 25-250Hz
• Recommended Lo Pass Crossover 120Hz
• Voice Coil Diameter 38.6mm / 1.5"
• Voice Coil Former Material Aluminum
• Winding Material SV
• Basket Material Steel Basket
• Frame Material Steel Basket
• Magnet Weight Ferrite 32oz
• Overall Diameter 215mm / 8.46"
• Front Mount Baffle Cutout 181mm / 7.12"
• Overall Depth 86mm / 3.46"
• Mounting Depth 75mm / 2.95"
