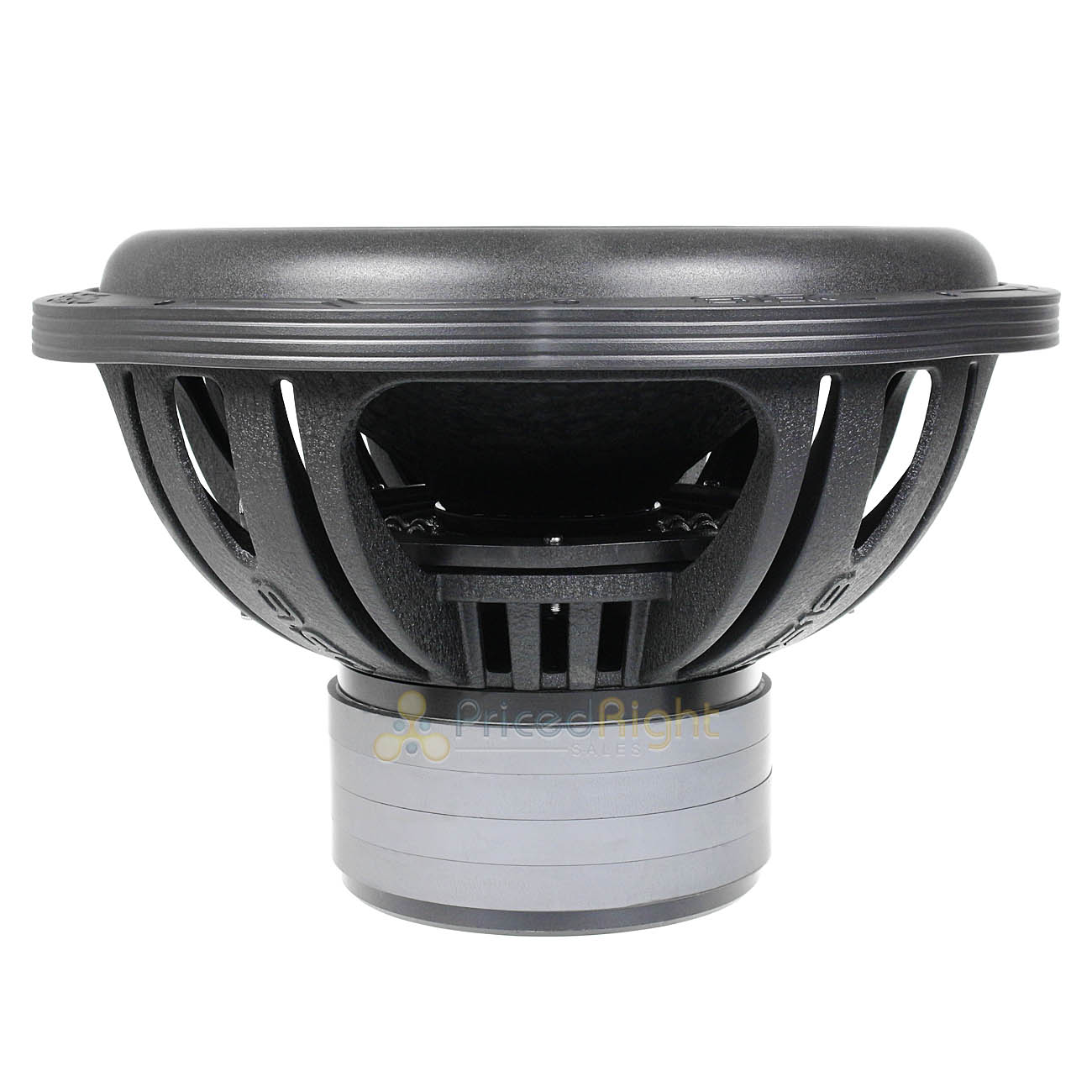

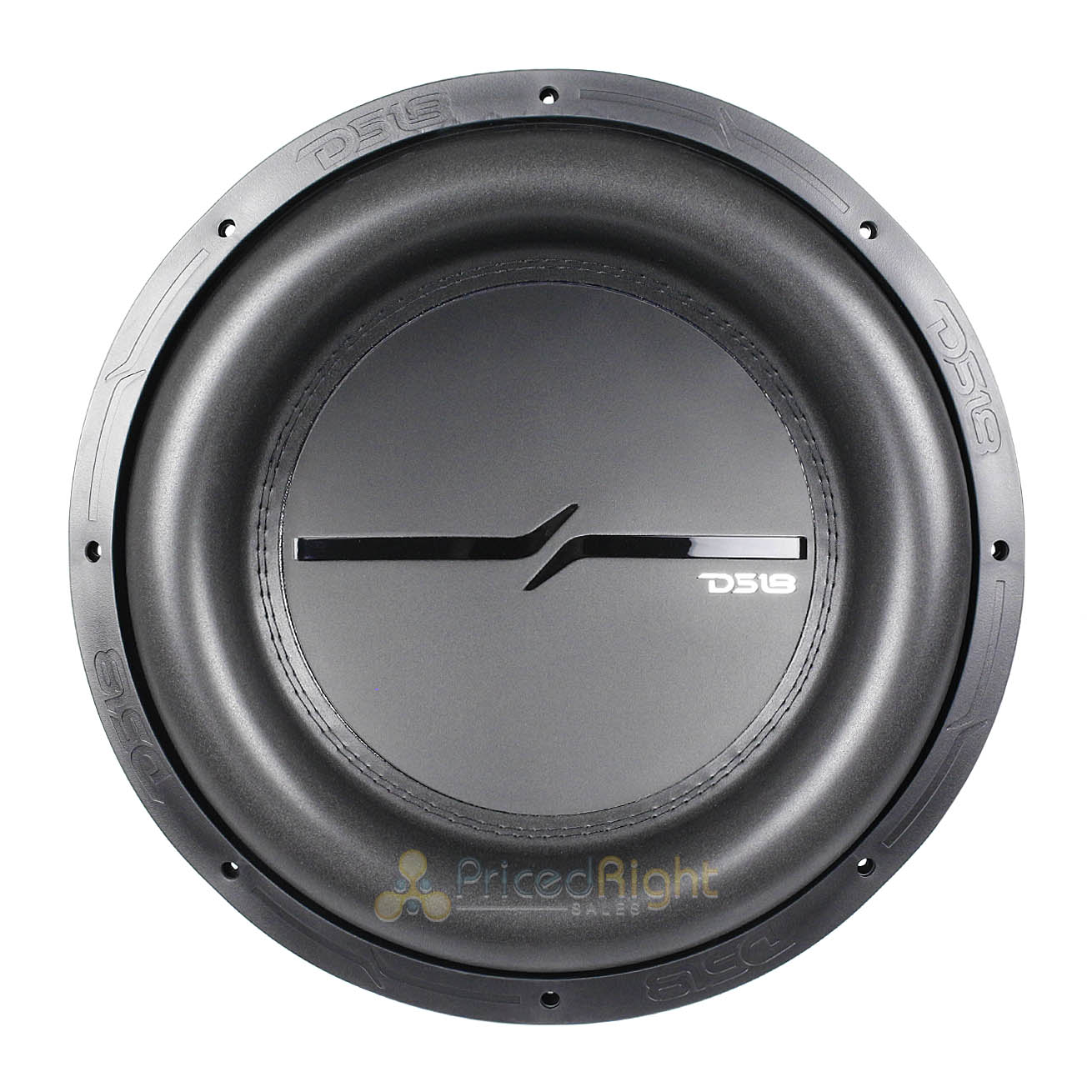

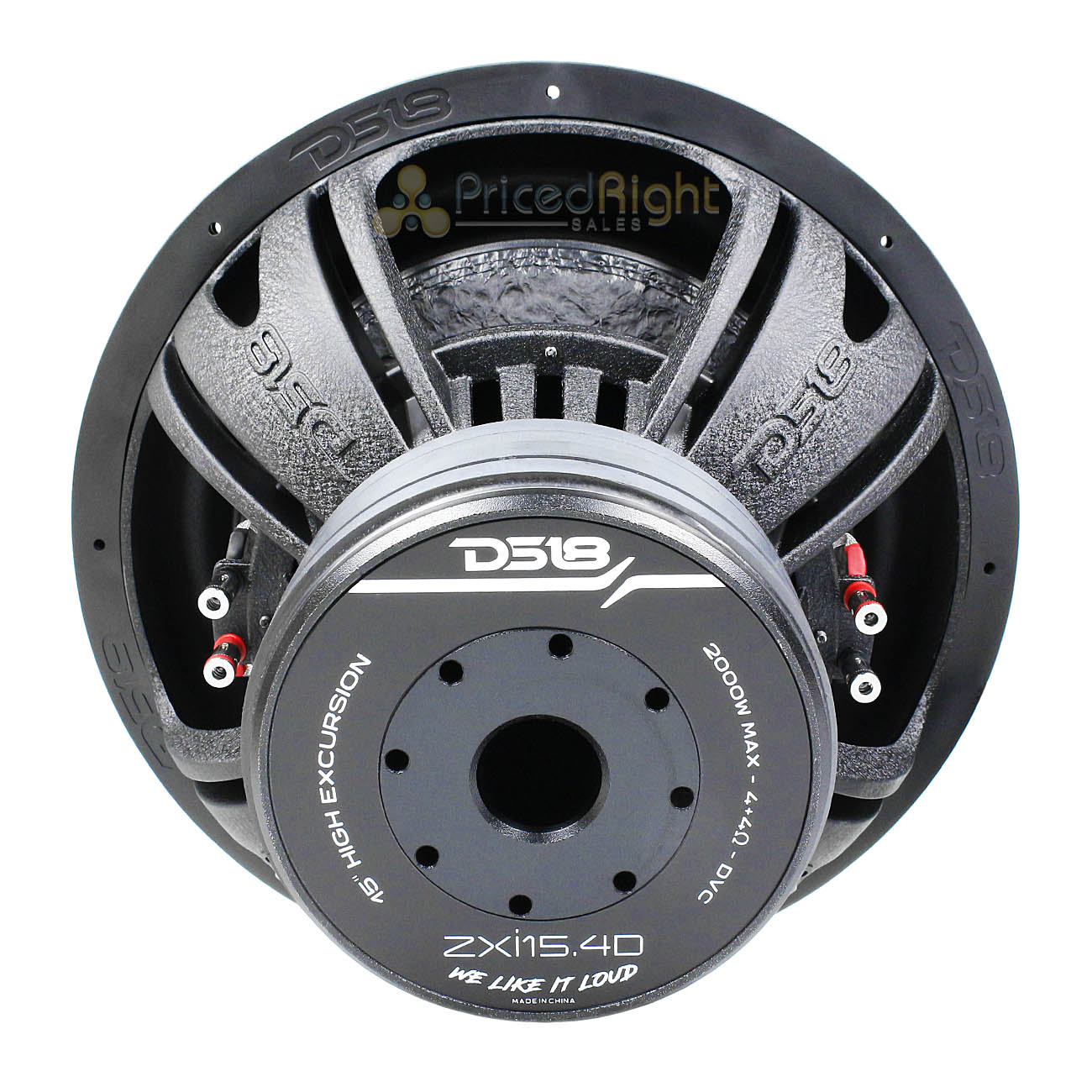

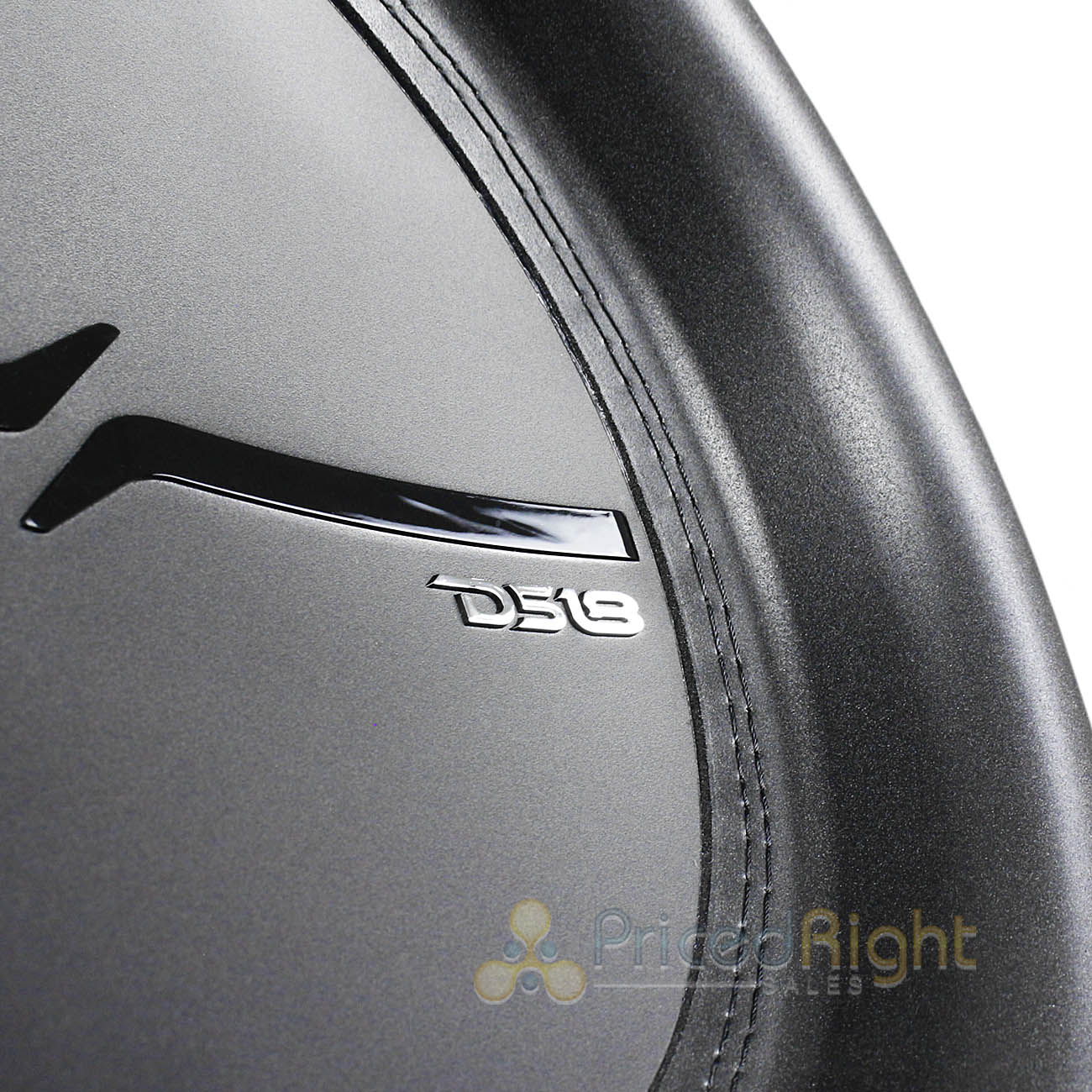

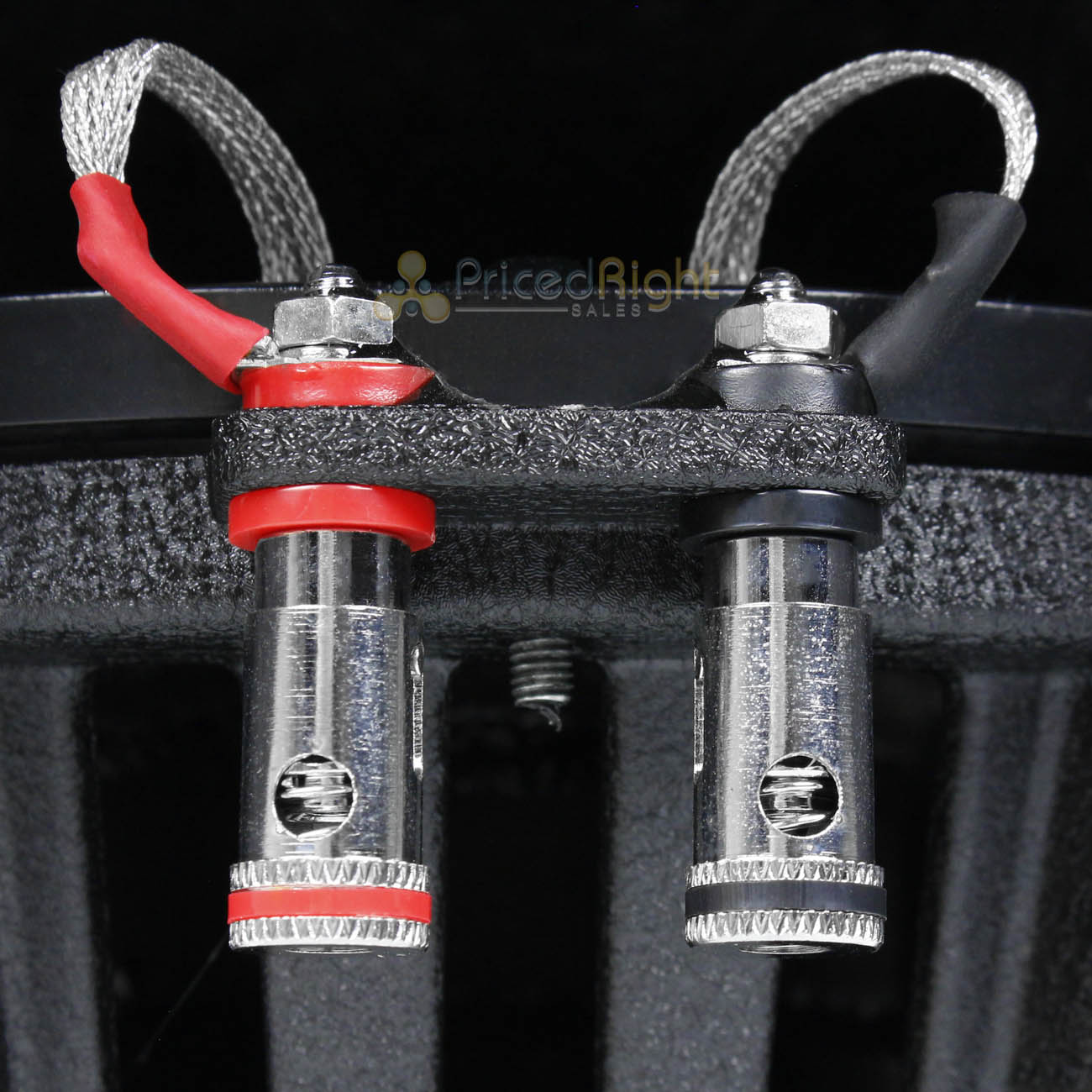

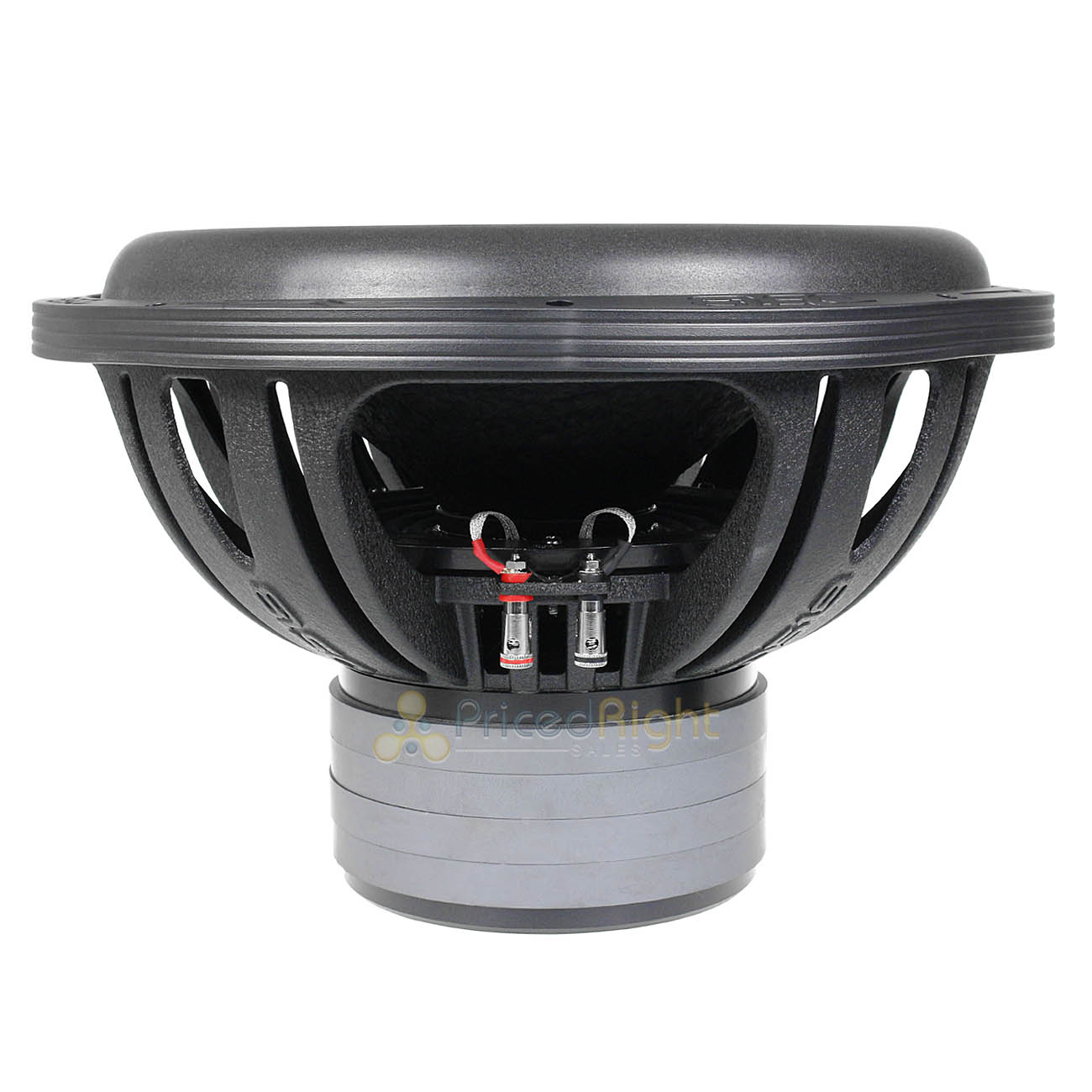

DS18 High Excursion 15" Car Subwoofer 2000W DVC 4 Ohm Quad Magnets ZXI15.4D
Click to enlarge

DS18 High Excursion 15" Car Subwoofer 2000W DVC 4 Ohm Quad Magnets ZXI15.4D DS18 High Excursion 15" Car Subwoofer 2000W DVC 4 Ohm Quad Magnets ZXI15.4D

$269.96 $349.99

DS18 High Excursion 15" Car Subwoofer 2000W DVC 4 Ohm Quad Stacked Magnets ZXI15.4D

More Power, More Bass!

Made for ground-shaking power, the ZXI15.4D is a newly-designed subwoofer that can only be defined as a monster of a machine. It packs a 3-inch voice coil designed to withstand high amounts of power with unparalleled efficiency, all while producing thunderous, distortion-free bass. But don't get it twisted - this sub is versatile enough to play higher frequencies all the way down to 15Hz with incredible clarity and accuracy!

Features

• Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets
• High Excursion Surround to help produce a maximum 30.5mm (one-way) XMAX without damage to the cone and surround
• Conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling so you can get the high-powered, thunderous bass you crave
• 3-inch voice coil to absorb and produce the highest heat-to-power ratio
• Low FS of 28Hz to allow ultra-low frequencies while retaining the versatility of a traditional subwoofer

TECHNICAL DETAILS

• Ultra-low frequency response of 15Hz-900Hz to ensure great lows
• Nominal Diameter: 15" / 381mm
• Nominal Impedance: 4 + 4 ohms
• RMS Power Handling: 1000w
• MAX Power Handling: 2000w
• Sensitivity (1w/1m): 89dB
• Frequency Response: 15Hz-900Hz
• Recommended Lo Pass Crossover: 90Hz

MOTOR

• Voice Coil Diameter: 3" / 76.2mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Dust Cap Material: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Sandblasted Black
• Magnet Material: Ferrite
• Magnet Weight: 232 Oz (4 x 58 oz)
• Displacement Volume: 5.82L / 0.2 ft3

MEASUREMENTS

• Overall Diameter: 15.65" / 397.5mm
• Overall Depth: 10.51" / 267mm
• Front Mount Baffle Cutout: 13.96" / 354.7mm
• Mounting Depth: 8.72" / 221.5mm
• Motor Diameter: 7.48" / 190mm
