Stetsom STX2848 DSP Crossover & Equalizer 8 Channel Digital Signal Processor
Click to enlarge

Stetsom STX2848 DSP Crossover & Equalizer 8 Channel Digital Signal Processor Stetsom STX2848 DSP Crossover & Equalizer 8 Channel Digital Signal Processor

$139.99 $144.99

Vendor: Stetsom

SKU: STX2848

UPC Code: 7897748704504

Categories: Car Audio Accessories, Car Audio Featured, Electronics, Featured Electronics,

Tags: Signal Processors,

Stetsom STX2848 DSP Crossover & Equalizer 8 Channel Signal Processor

Take your car audio system to the next level with the Stetsom STX2848 Digital Signal Processor. Designed to offer precise control and enhance sound quality, this processor provides extensive customization for any audio setup.

Technical Specifications:

• Number of Channels: 2 input / 8 output
• Graphic Equalizer: 15 Bands (gain ±12dB)
• Graphic Equalization Presets: 12
• Parametric Equalizer: 1 input + 1 per Output (gain ±12dB, Factor Q 0.4 ~ 10.0)
• Crossover Variable Frequency: Butterworth: 12/18/24/36/48 dB/8ª, Linkwitz-Riley: 12/18/24/36/48 dB/8ª
• Crossover Presets: 11
• Routing between Input and Output: A, B or A+B
• Alignment: 0 ~ 8ms (275cm)
• Phase Inversion: 0° ~ 180°
• Limiter: Threshold: -24 ~ 0dB / Attack: 0.1 ~ 100.0ms / Release: 1 ~ 1600ms (manual/automatic)
• Master Level and Gain: 0 ~ 100% (Gain -45 ~ +15dB per output)
• Memory Positions Save/Load: Autosave + 4 slots
• Security: Password with 4 digits
• Frequency Generator: 10Hz ~ 22kHz, Level -60 ~ 0dB
• Frequency Sweep: Initial and final 10Hz ~ 22kHz (Level -60 ~ 0dB and Speed Control)
• Pink Noise Generator: 10Hz ~ 22kHz and Level -60 ~ 0dB
• Languages: English, Spanish, Portuguese
• Latency: 1.08ms
• Input Impedance: 10KΩ
• Output Impedance: 47Ω
• Max. Input and Output Voltage: 5.6 Vpp (+8.2 dBu)

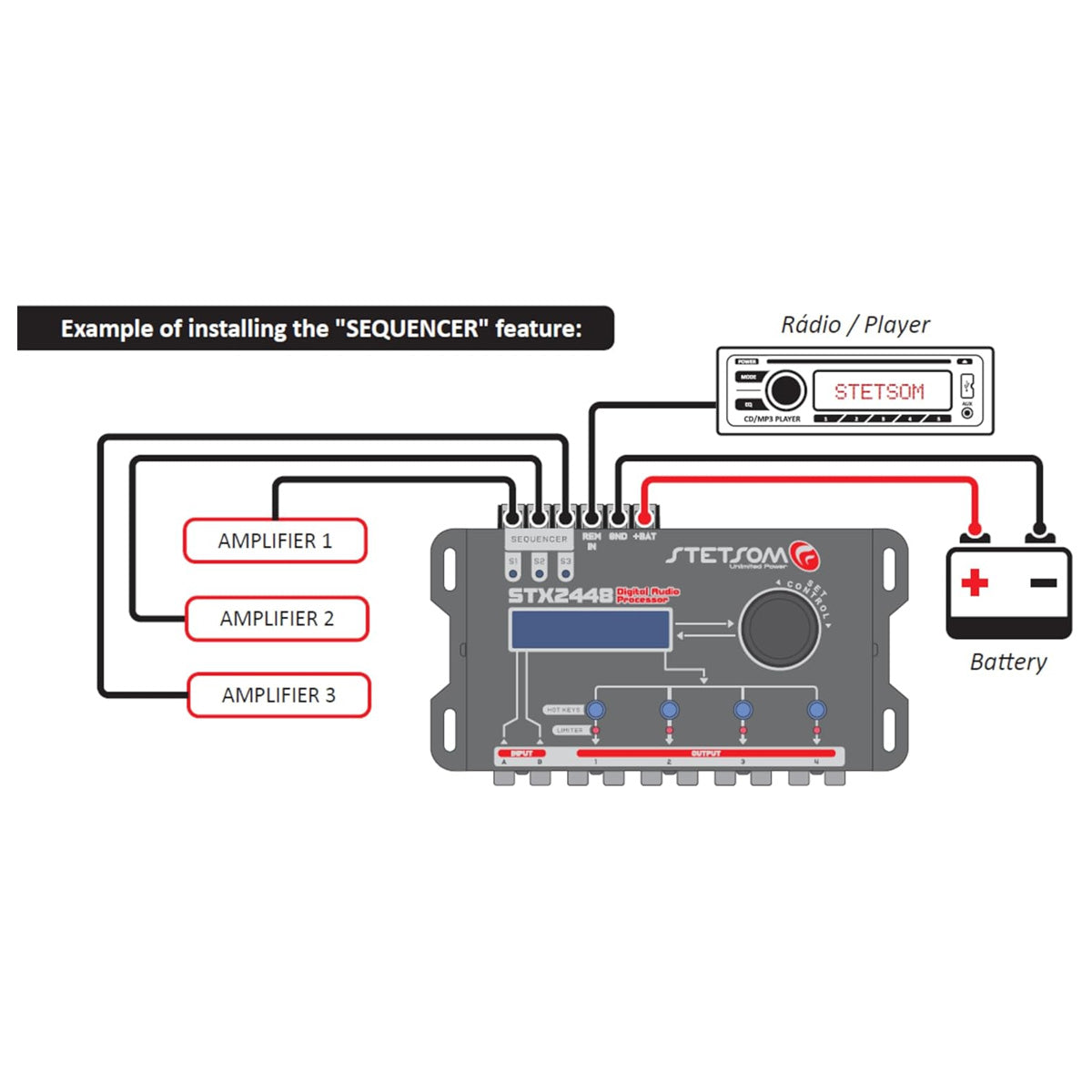

• Max. Output Current SEQUENCER: 180 mA per output
• Saturation Indicator: 1 per input + 1 per output (linked to the Limiter)
• Signal-to-noise ratio: >90dB

Enhance your car audio system with the Stetsom STX2848 DSP, offering unparalleled control and superior sound quality for automotive audio enthusiasts.

Stetsom STX2848 DSP Crossover & Equalizer 8 Channel Signal Processor

Take your car audio system to the next level with the Stetsom STX2848 Digital Signal Processor. Designed to offer precise control and enhance sound quality, this processor provides extensive customization for any audio setup.

Technical Specifications:

• Number of Channels: 2 input / 8 output
• Graphic Equalizer: 15 Bands (gain ±12dB)
• Graphic Equalization Presets: 12
• Parametric Equalizer: 1 input + 1 per Output (gain ±12dB, Factor Q 0.4 ~ 10.0)
• Crossover Variable Frequency: Butterworth: 12/18/24/36/48 dB/8ª, Linkwitz-Riley: 12/18/24/36/48 dB/8ª
• Crossover Presets: 11
• Routing between Input and Output: A, B or A+B
• Alignment: 0 ~ 8ms (275cm)
• Phase Inversion: 0° ~ 180°
• Limiter: Threshold: -24 ~ 0dB / Attack: 0.1 ~ 100.0ms / Release: 1 ~ 1600ms (manual/automatic)
• Master Level and Gain: 0 ~ 100% (Gain -45 ~ +15dB per output)
• Memory Positions Save/Load: Autosave + 4 slots
• Security: Password with 4 digits
• Frequency Generator: 10Hz ~ 22kHz, Level -60 ~ 0dB
• Frequency Sweep: Initial and final 10Hz ~ 22kHz (Level -60 ~ 0dB and Speed Control)
• Pink Noise Generator: 10Hz ~ 22kHz and Level -60 ~ 0dB
• Languages: English, Spanish, Portuguese
• Latency: 1.08ms
• Input Impedance: 10KΩ
• Output Impedance: 47Ω
• Max. Input and Output Voltage: 5.6 Vpp (+8.2 dBu)
• Max. Output Current SEQUENCER: 180 mA per output
• Saturation Indicator: 1 per input + 1 per output (linked to the Limiter)
• Signal-to-noise ratio: >90dB

Enhance your car audio system with the Stetsom STX2848 DSP, offering unparalleled control and superior sound quality for automotive audio enthusiasts.
